How to model multiple events
When dealing with overlapping data, it is often necessary to model multiple eventtypes (e.g. fixations, stimuli, responses).
Load Example Data
using Unfold
using UnfoldMakie, CairoMakie
using DataFrames
using StatsModels
using MixedModels
include(joinpath(dirname(pathof(Unfold)), "../test/test_utilities.jl")) # to load data
dat, evts = loadtestdata("test_case_4b");
evts[1:5,:]
5×3 DataFrame
Row | latency | type | intercept |
---|---|---|---|
Int64 | String7 | Int64 | |
1 | 38 | eventA | 1 |
2 | 50 | eventB | 1 |
3 | 89 | eventA | 1 |
4 | 102 | eventB | 1 |
5 | 144 | eventA | 1 |
The type
column of table evts
contains two conditions: eventA
and
eventB(if your eventstypes are specified in a different column, you need to define the keywordargument
eventcolumnin the
fit` command below)
Specify formulas and basisfunctions
bf1 = firbasis(τ = (-0.4, 0.8), sfreq = 50)
bf2 = firbasis(τ = (-0.2, 1.2), sfreq = 50)
For each event, a basis function and formula must be specified. The same basis and formulas may be used.
f = @formula 0 ~ 1
FormulaTerm
Response:
0
Predictors:
1For each event, we must specify the formula and basis function to be used.
bfDict = [ "eventA" => (f, bf1),
"eventB" => (f, bf2) ]
Finally, fitting & plotting works the same way as always
m = Unfold.fit(
UnfoldModel,
bfDict,
evts,
dat,
solver = (x, y) -> Unfold.solver_default(x, y; stderror = true),
eventcolumn = "type",
)
results = coeftable(m)

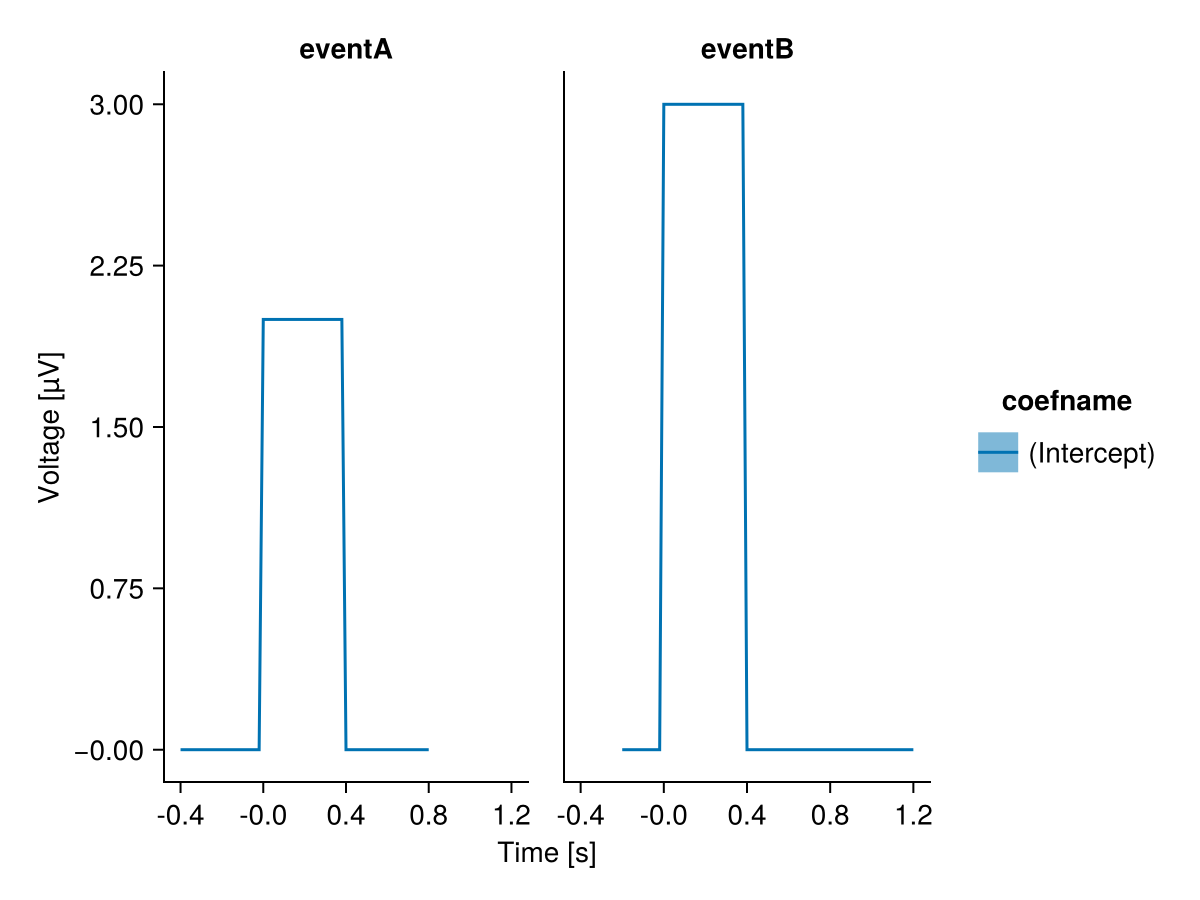

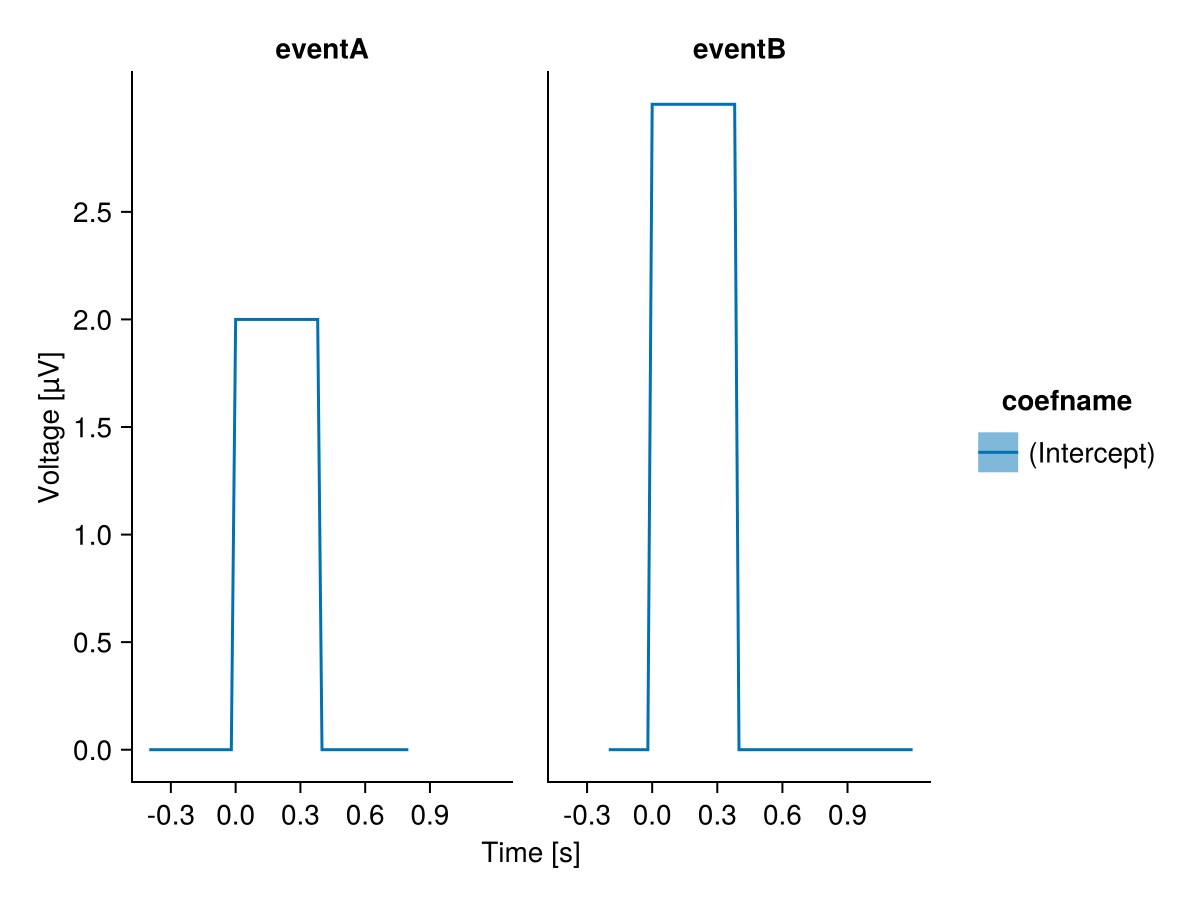

plot_erp(results; stderror = true, mapping = (; col = :eventname))
