Removing BAD data

Sometimes one has bad data (artefacts etc.) in the data that one wants to remove prior to fitting.

Setup

# Load required packages
using UnfoldSim
using Unfold

using CairoMakie, UnfoldMakie

using Random

Simulation

Let's start with a simulation of some data, and add some bad-data.

rng = MersenneTwister(1)
data, evts = UnfoldSim.predef_eeg(n_repeats = 1)
ix = 100:500
data[ix] .+= 50 .* (rand(rng, length(ix)) .- 0.5)

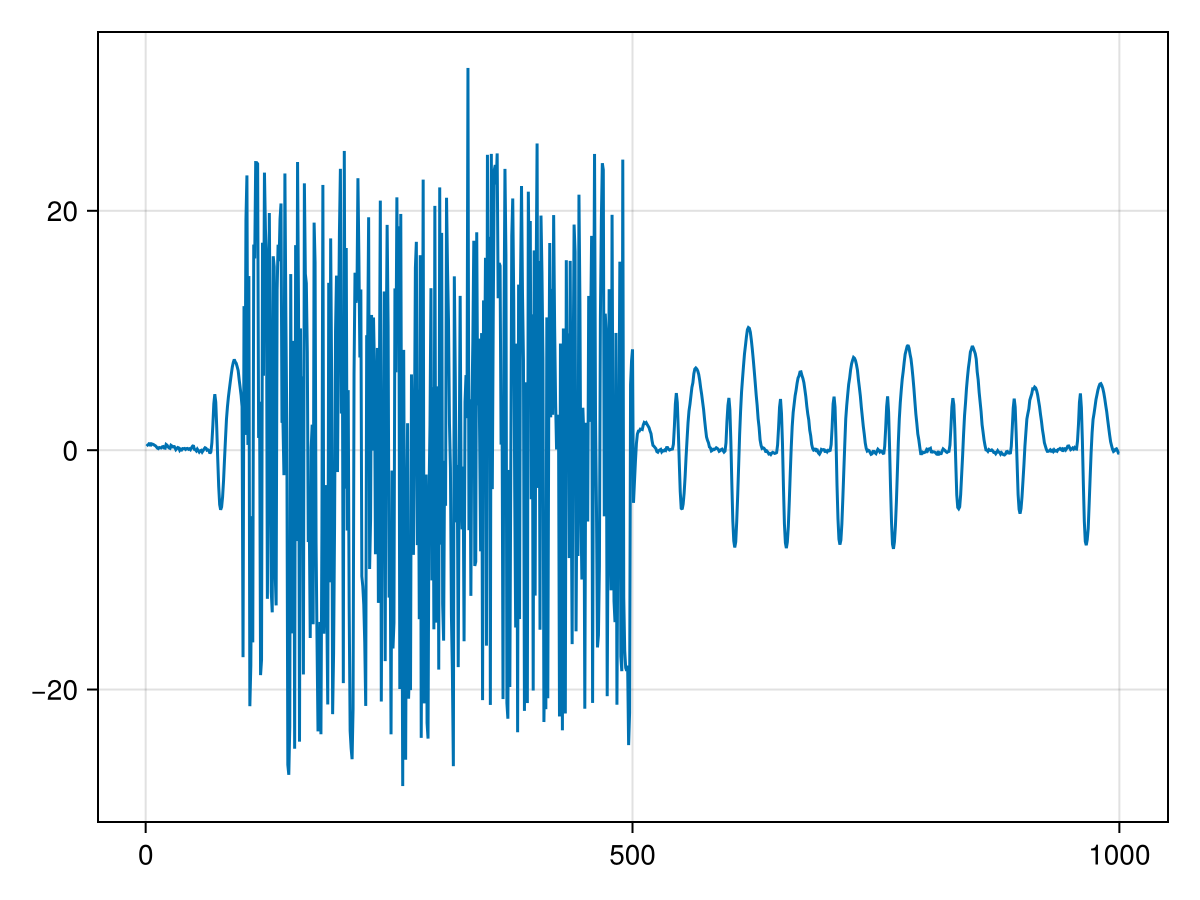

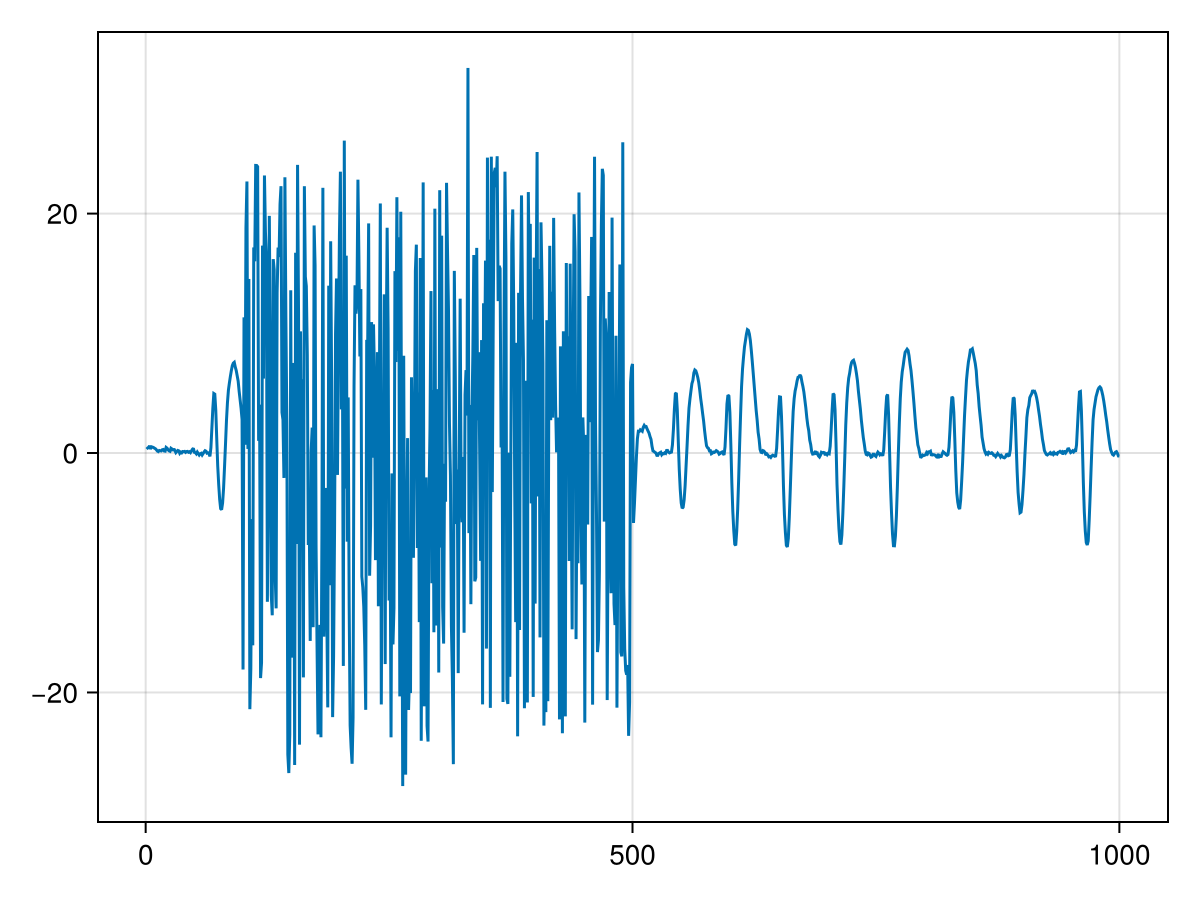

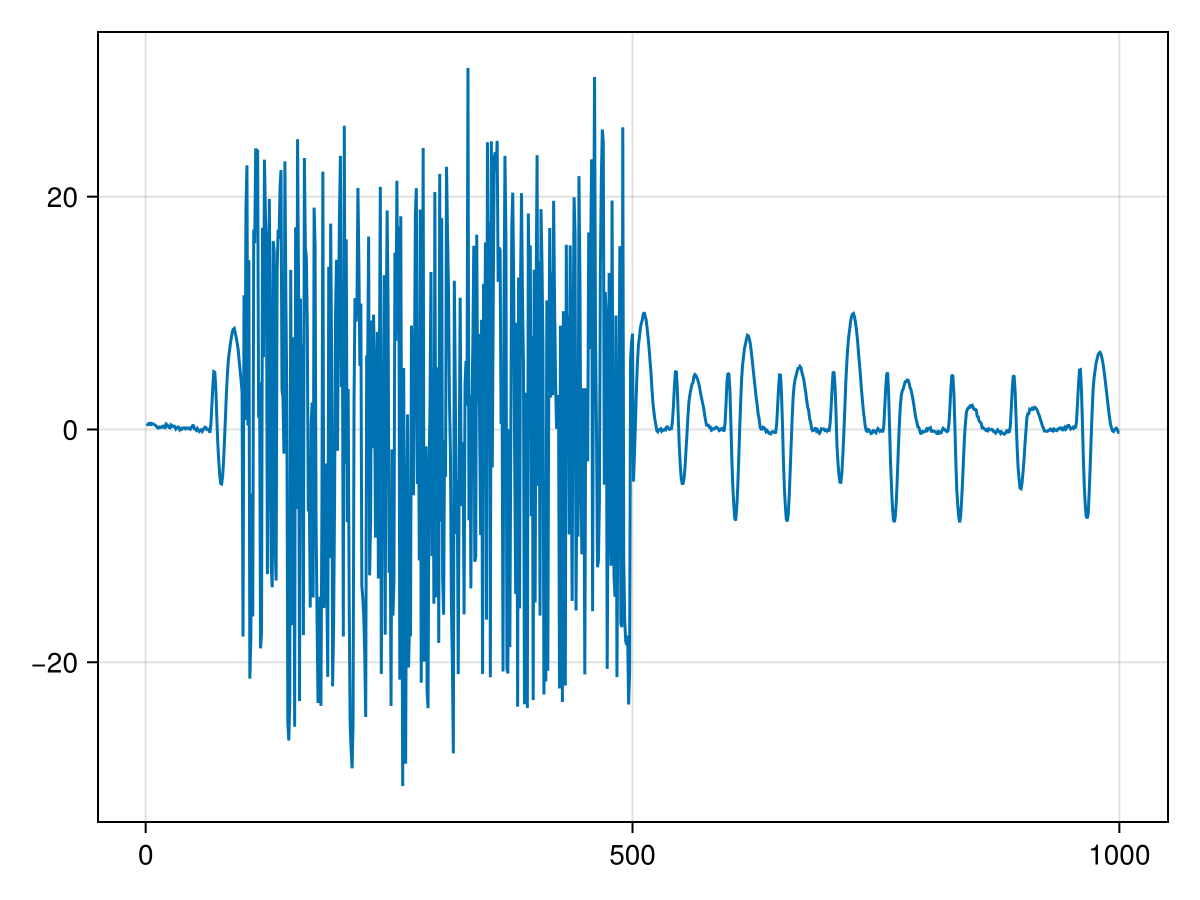

f = lines(data[1:1000])
f

Clearly this data is bad and we should rather remove it! We can use Julias missing data-type to indicate those portions.

using Missings
data_missing = allowmissing(data)
data_missing[ix] .= missing

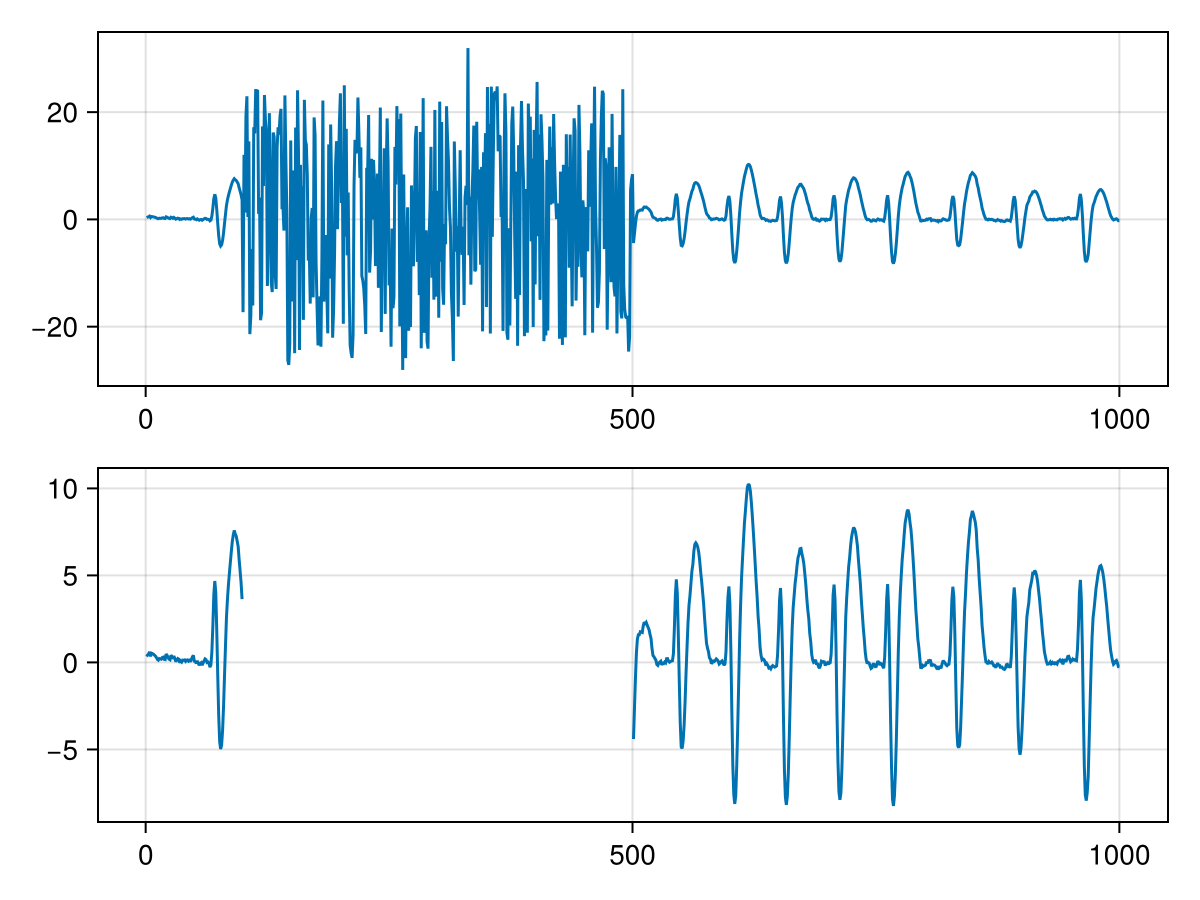

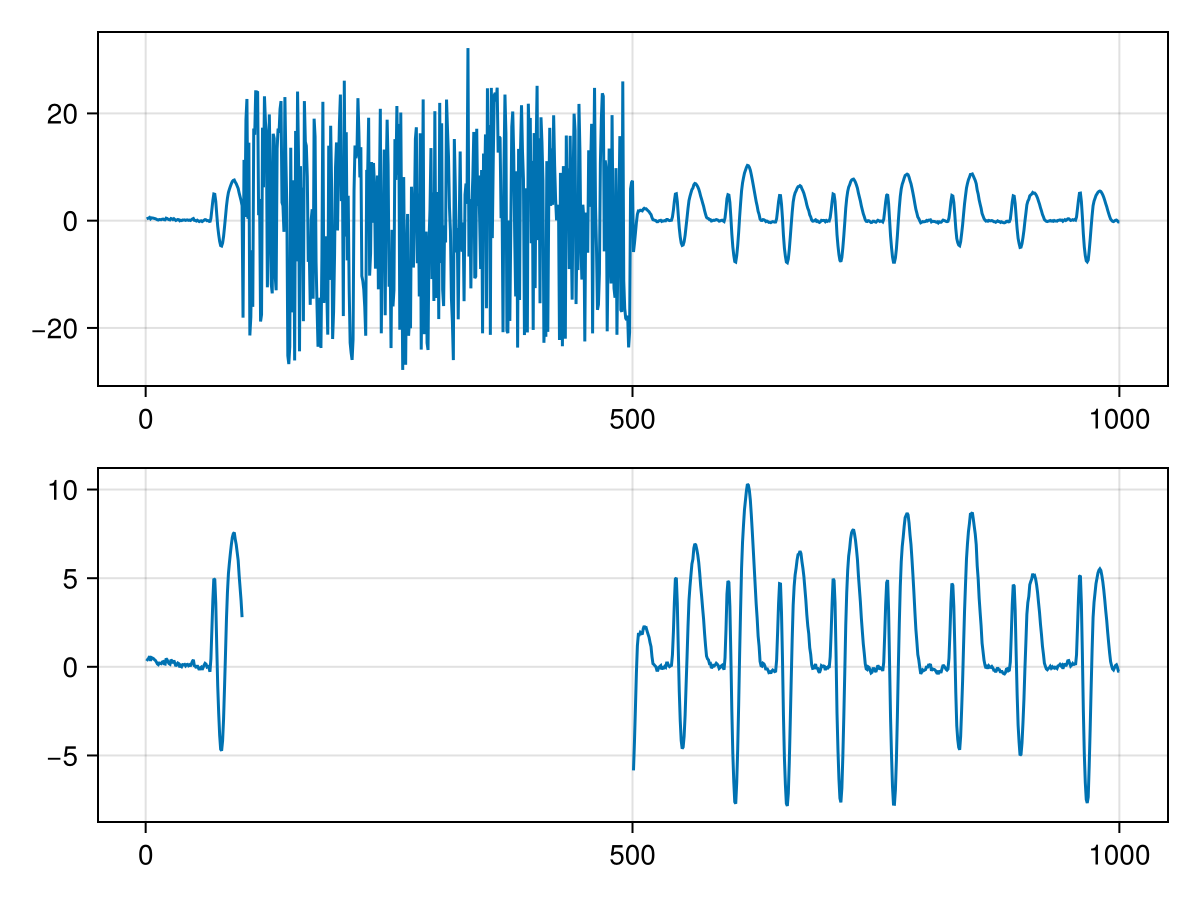

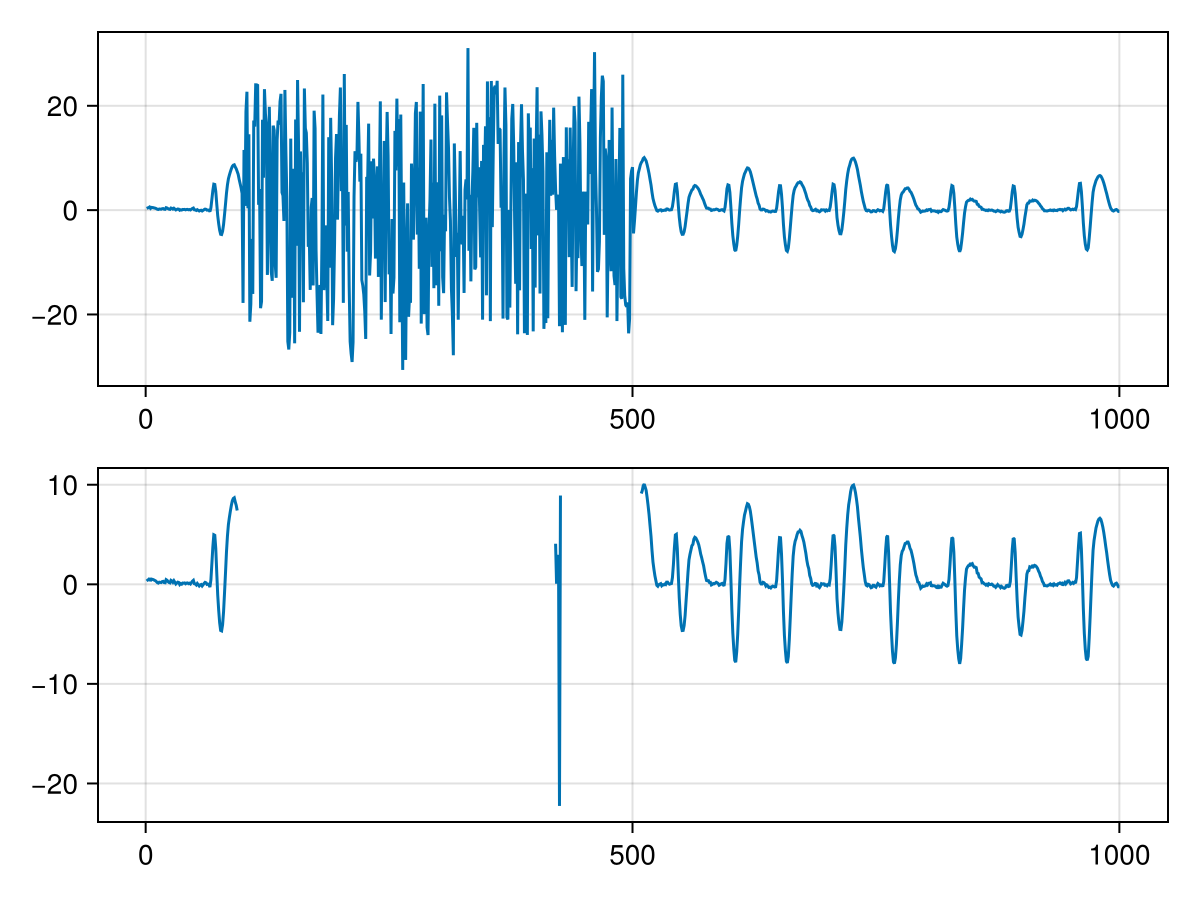

lines(f.figure[2, 1], data_missing[1:1000])
f

Nice, the data is sucessfully marked as missing, without changing the overall size / timing of the data

We can now fit a model with, and without the noise data. Unfold automatically detects missing data, and does not use it in the modelfit.

m = fit(UnfoldModel, @formula(0 ~ 1), evts, data, firbasis((-0.3, 0.5), 100))
m_missing =
    fit(UnfoldModel, @formula(0 ~ 1), evts, data_missing, firbasis((-0.3, 0.5), 100))
c = coeftable(m)
c.group .= "with bad data"
c_missing = coeftable(m_missing)
c_missing.group .= "bad data removed"

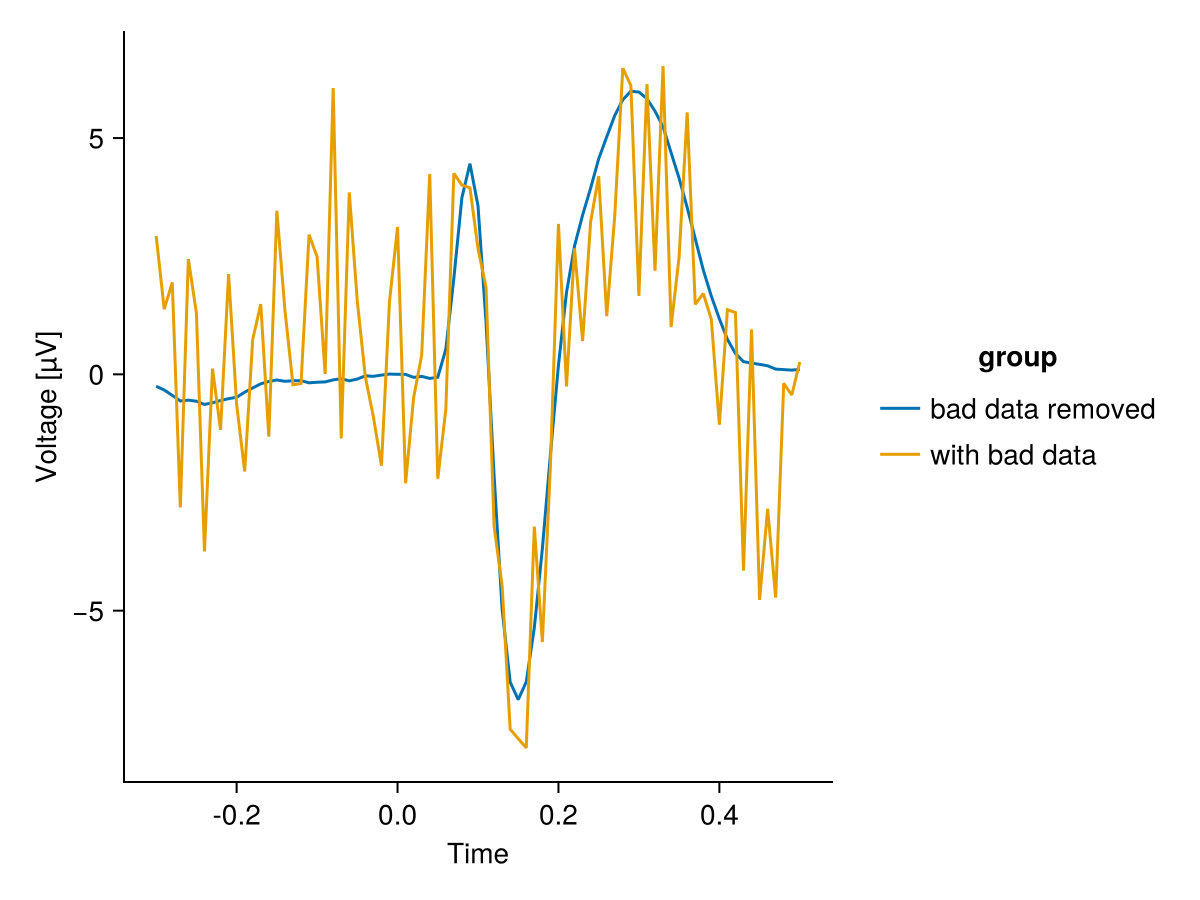

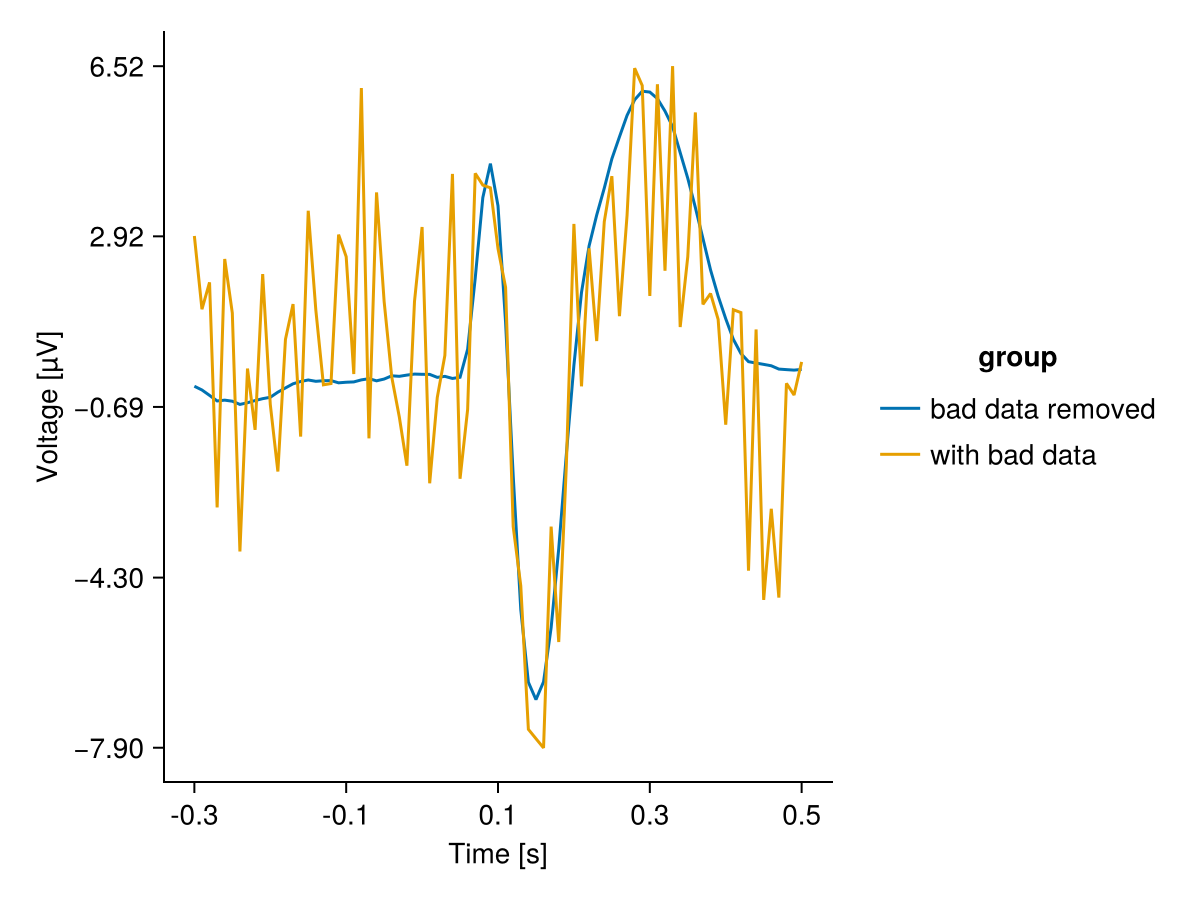

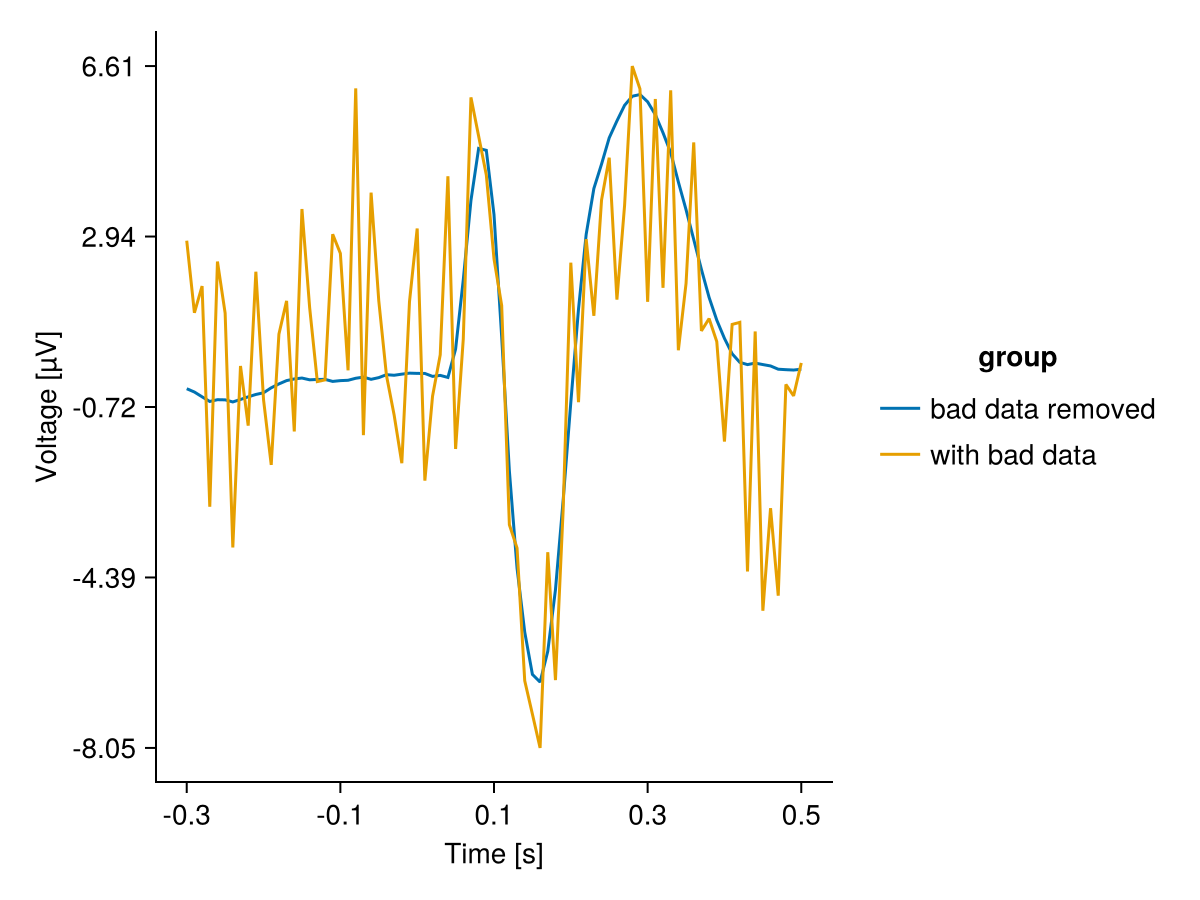

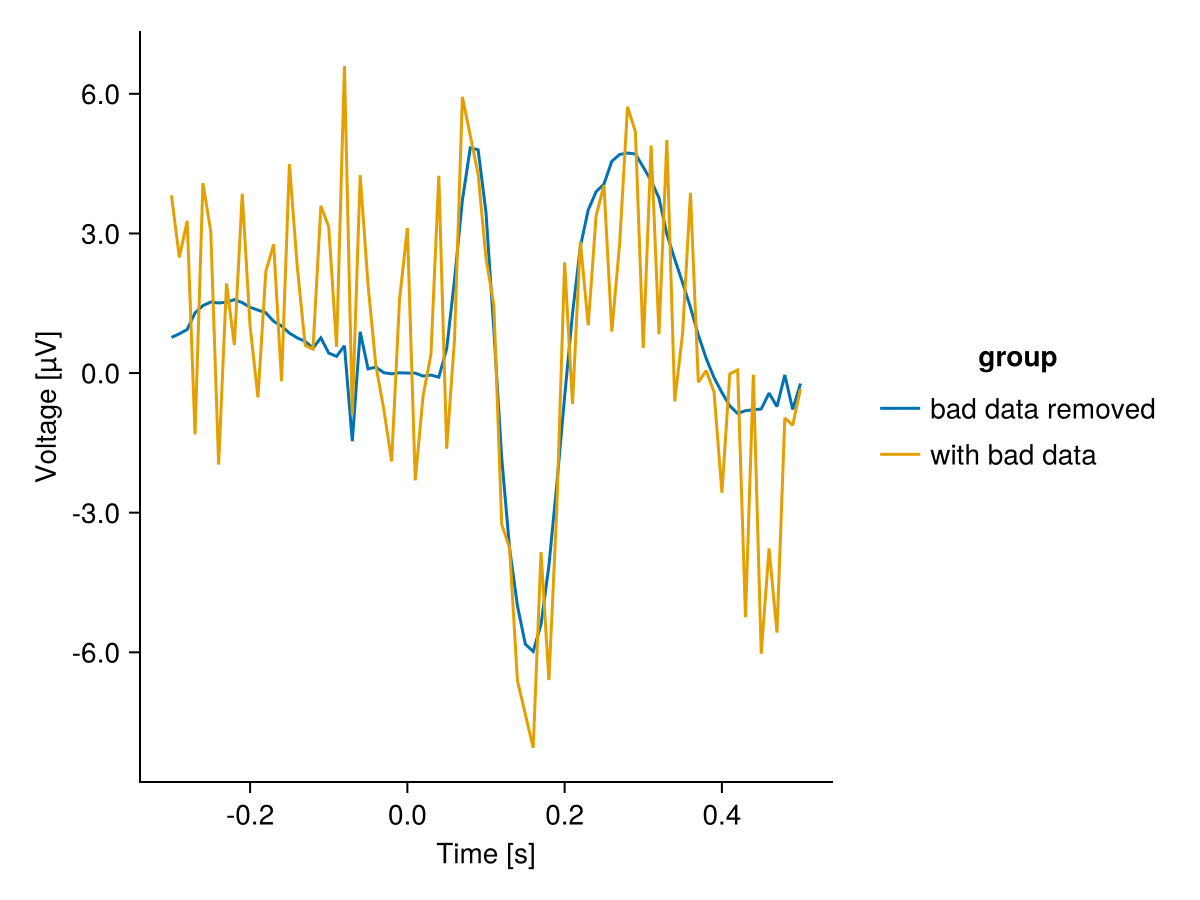

plot_erp(vcat(c, c_missing), mapping = (; color = :group))

Currently no helper function exists to translate e.g. MNE BAD segments/annotations automatically, but pull requests are very welcome!
