The predict-family
# Setup
using Unfold
using UnfoldSim
using CairoMakie
dat, evts = UnfoldSim.predef_eeg(noiselevel = 5)
design = [
"car" => (@formula(0 ~ 1 + continuous), firbasis(τ = (-0.5, 1), sfreq = 100)),
"face" => (@formula(0 ~ 1 + continuous), firbasis(τ = (-0.3, 0.5), sfreq = 100)),
]
m = fit(UnfoldModel, design, evts, dat; eventcolumn = :condition);
Overview
In a linear model $EEG = Xβ + e$, predictions boil down to finding $\hat{EEG} = Xβ$, thus EEG data without any error term. Different types of predictions can be generated by modifying the $X$ accordingly.
We simulated only a single channel, all results generalize to the multi channel case
Different types of predictions
Time-Continuous case
Let's start with the cases, where the EEG was not epoched before using Unfold, i.e. the EEG was analysed with e.g. FIR-deconvolution
Continuous EEG

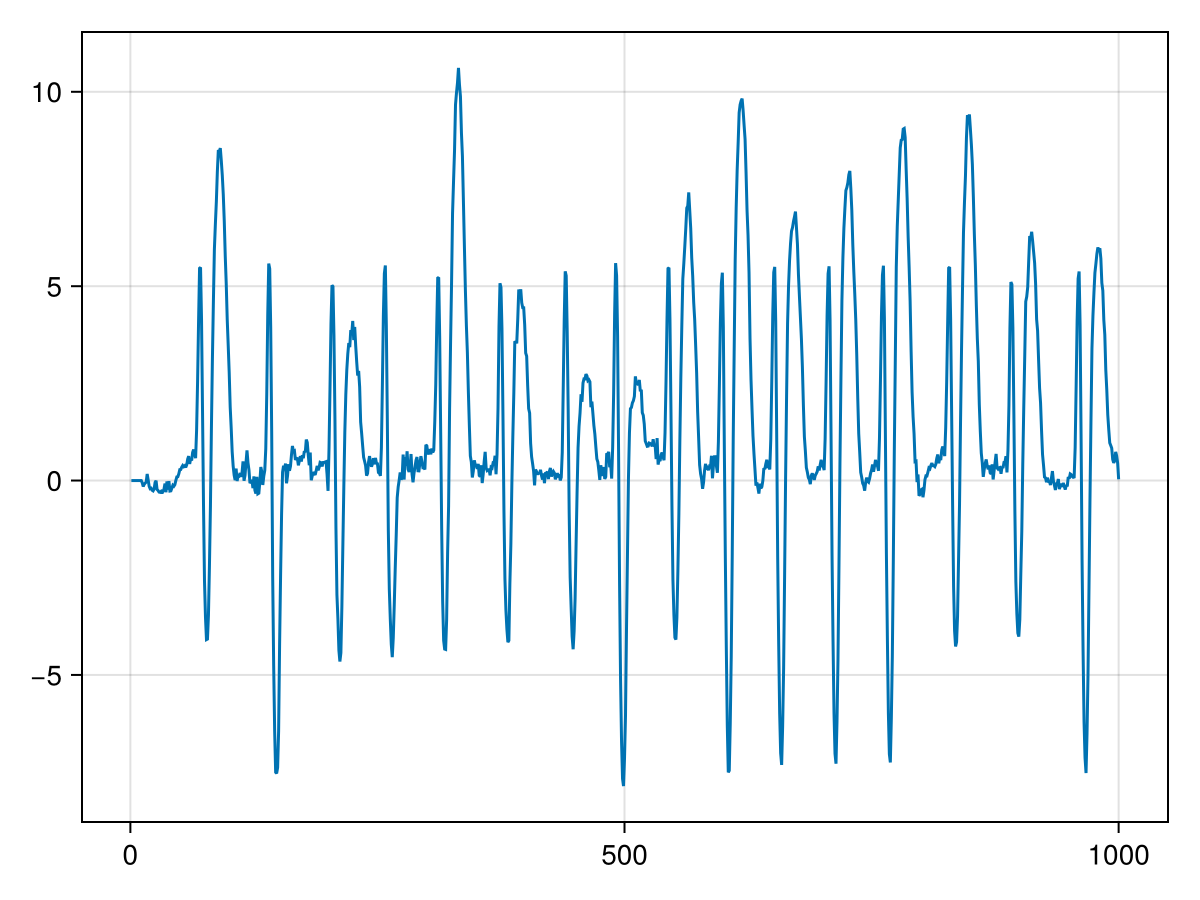

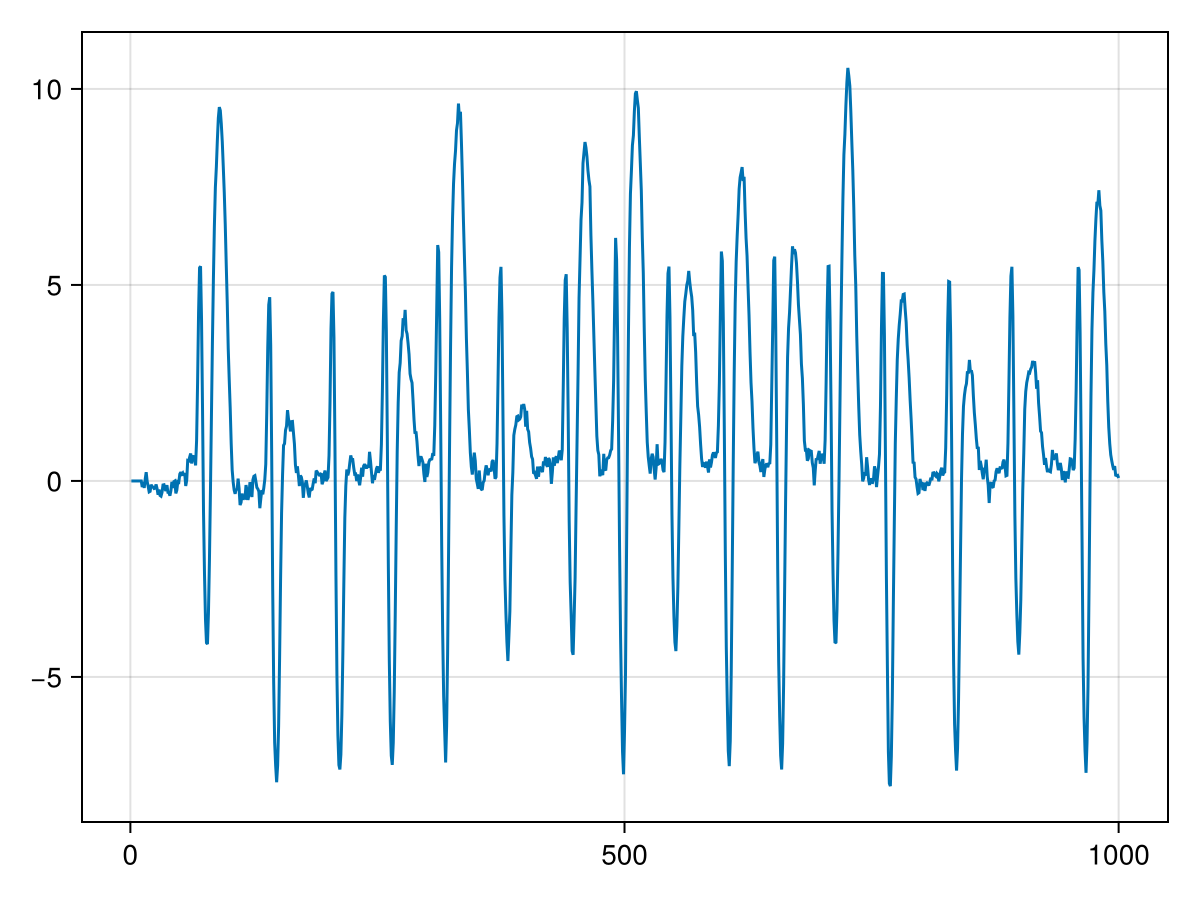

In the most simple case, we can predict the continuously modelled EEG - This returns $EEG = Xβ$
p = predict(m) # same as predict(m, overlap = true)
lines(p[1, 1:1000])

No-overlap
We can also predict each epoch without any overlap - This results in one prediction Array per event (in our case we have two events "car" and "face", thus size(p) = 2
p = predict(m, overlap = false)
size(p)
(2,)
Each Array has the size (1, samples, epochs):
size(p[1])
(1, 151, 1000)

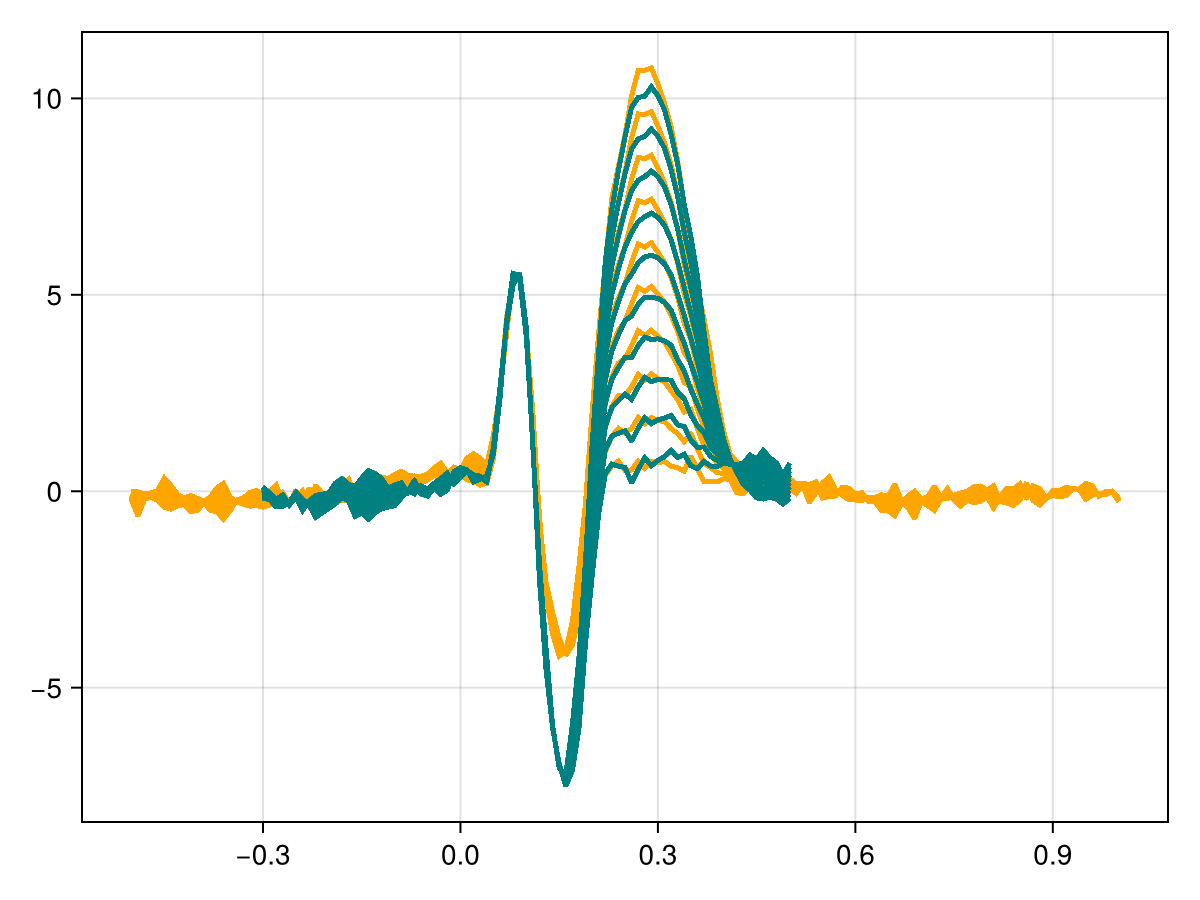

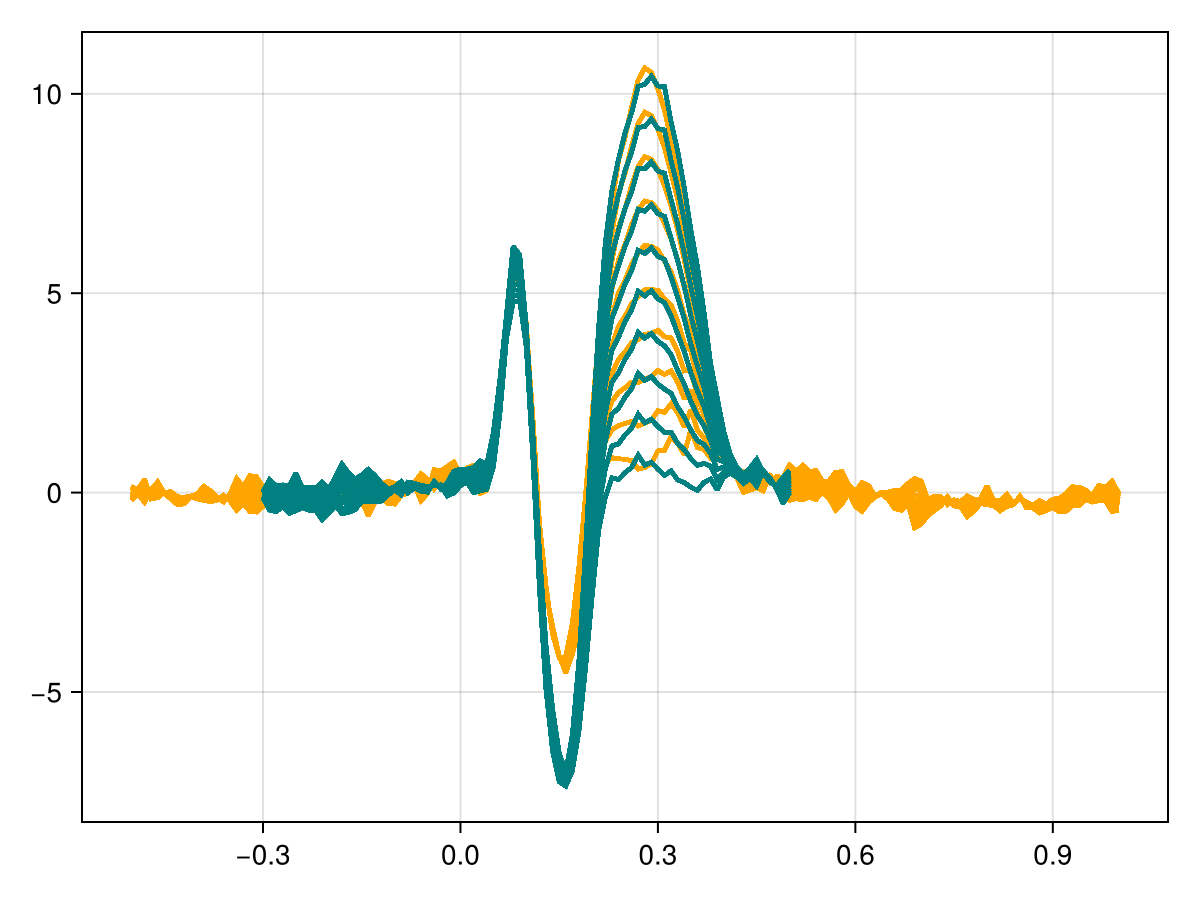

Visualizing the 1000 events
series(range(-0.5, 1, step = 1 / 100), p[1][1, :, :]', solid_color = :orange)
series!(range(-0.3, 0.5, step = 1 / 100), p[2][1, :, :]', solid_color = :teal)
current_figure()

At ~0.3s we can see a split between the predicted EEG single trials into 10 "strands" - this is the granularity of our continuous predictor. You could use effects
to improve upon this granularity / customize it.
With-overlap, epoched

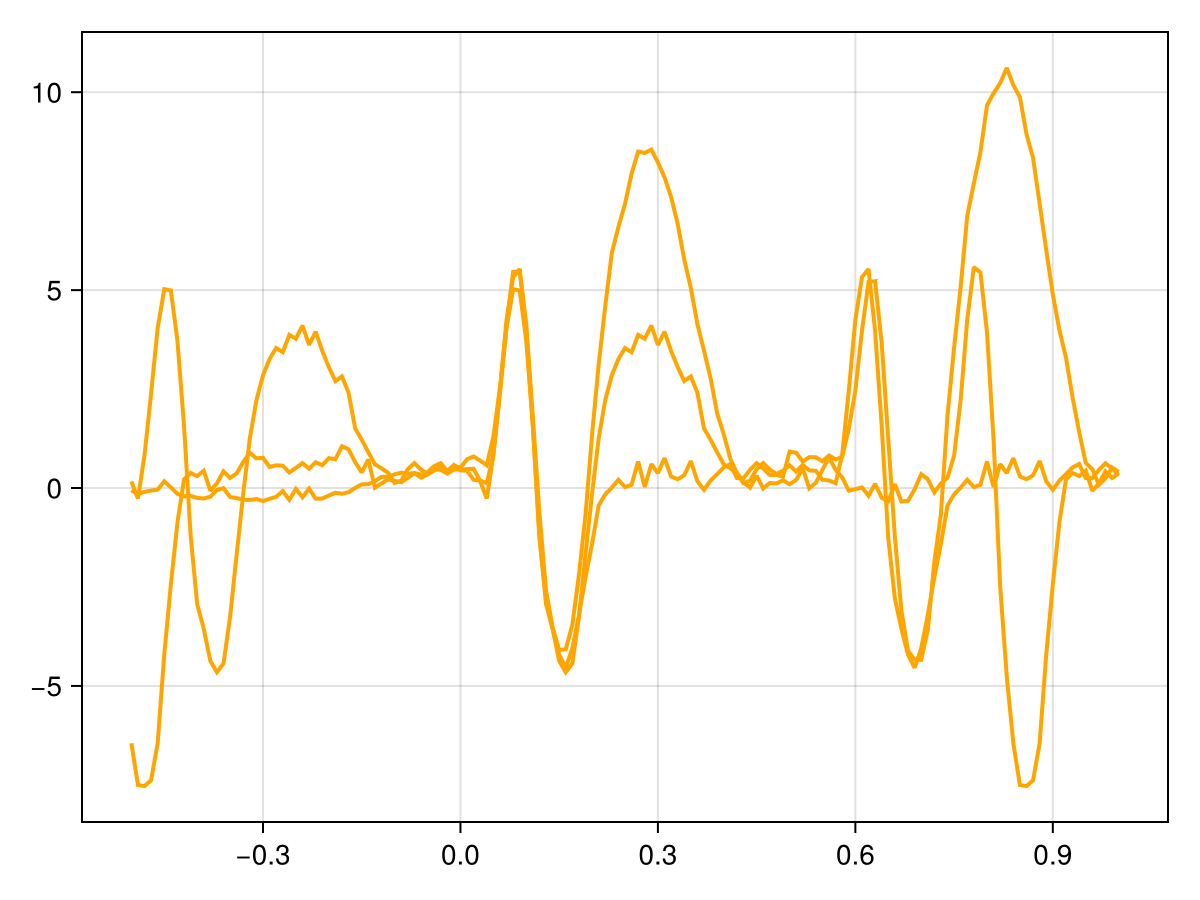

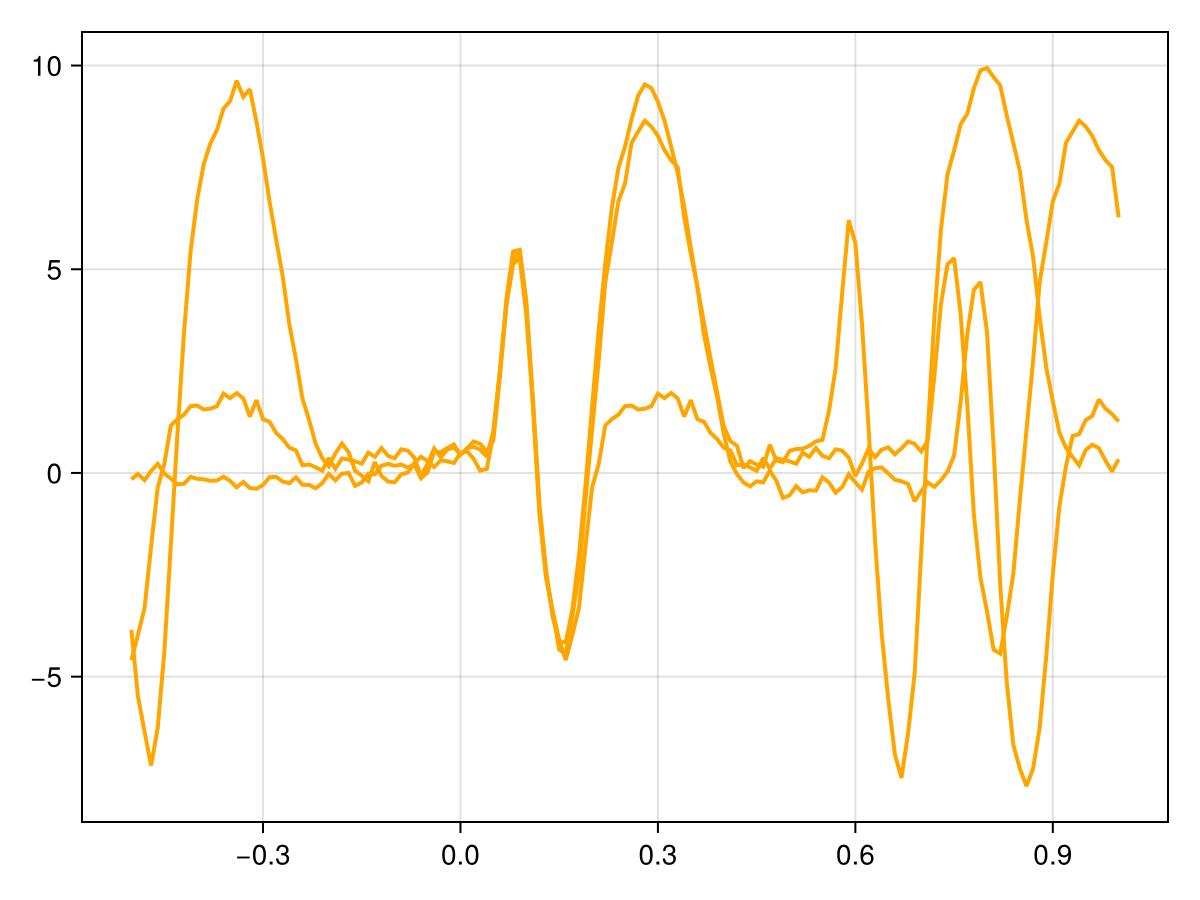

Sometimes helpful is to add in the overlap we removed via the deconvolution.
p = predict(m, epoch_to = ["car"], eventcolumn = :condition)
series(range(-0.5, 1, step = 1 / 100), p[1, :, 1:3]', solid_color = :orange)

Partial-overlap
We can also include/exclude certain events with "partial-overlap", i.e. only overlap with kept events.
p_car = predict(m, keep_basis = ["car"], eventcolumn = :condition)
p_face = predict(m, exclude_basis = ["car"], eventcolumn = :condition) # same as keep_basis=["face"]
f = lines(p_car[1, 1:1000])
lines!(p_face[1, 1:1000])
f

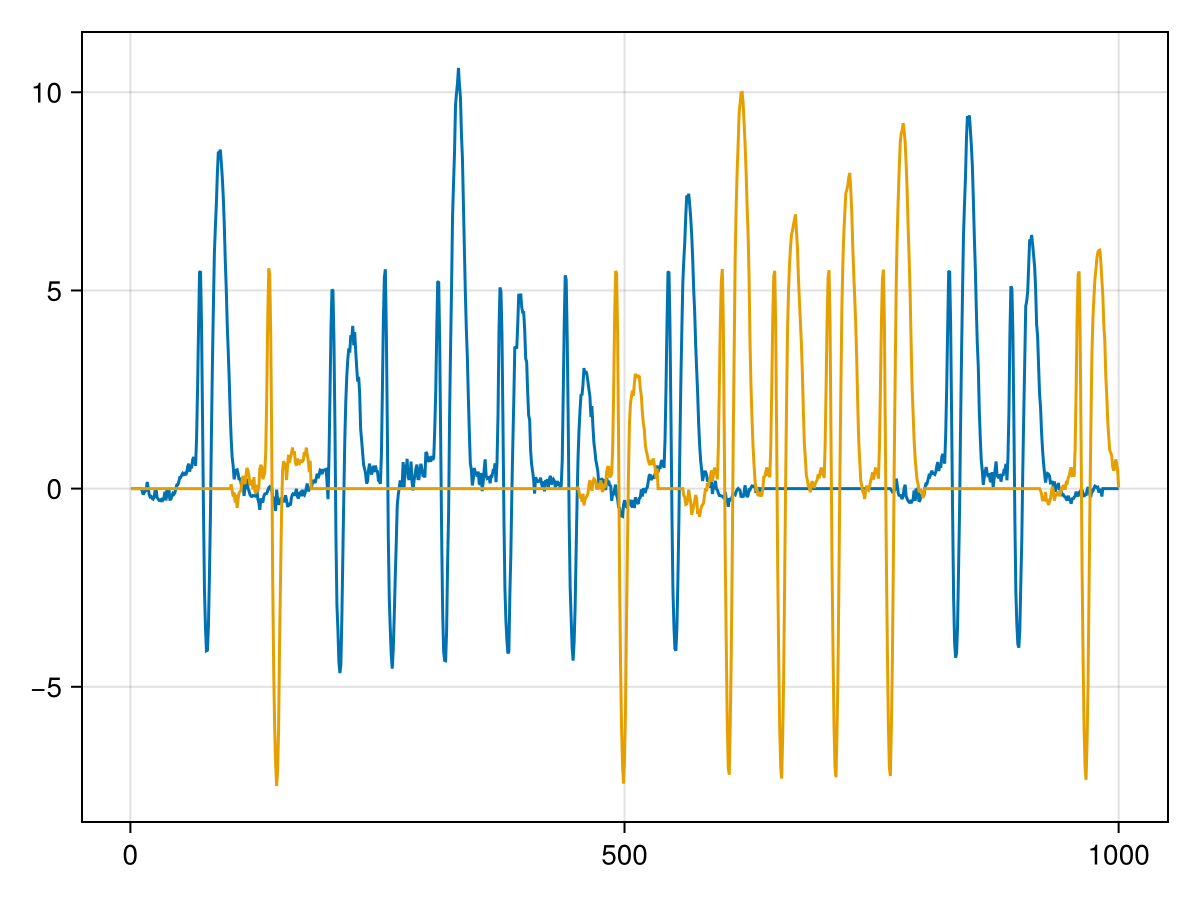

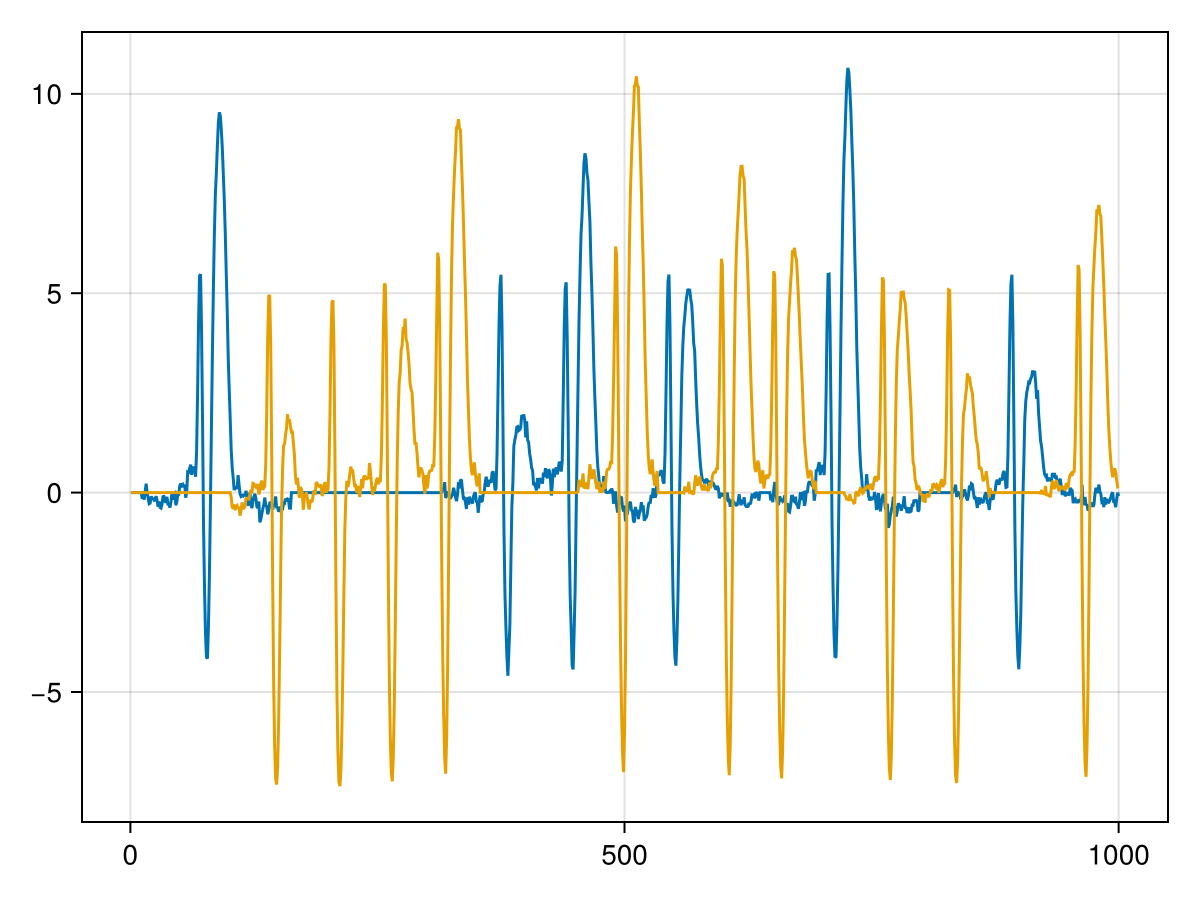

In the plot, we see the two partial predictions for car and face. They are respectively "0" outside the basisfunction windows
The above options can be combined as well, e.g. to get an epoch_to
, exclude_basis
version. epoch_timewindow
can be specified as well.
