Solver implementation

This document describes how the solver_main is implemented and how to add custom solvers.

some setup

using Unfold, UnfoldSim, CairoMakie
using LinearAlgebra: cholesky

Solver main

This function gis a eneral purpose solver-wrapper function. It calls prepare_fun and iterates over the first dimension of data, repeatedly calling the solver_fun.

Without any bells and whistles (progress, history etc.) the function roughly looks like this:

function _solver_min(X, data; prepare_fun, solver_fun!, stderror = false)
    Ĥ, dataP, prepared = prepare_fun(X, data)
    for ch = 1:size(dataP, 2)
        for t = 1:size(dataP, 3)
            ch == 1 || copyto!(view(Ĥ, ch, :, t), view(Ĥ, ch - 1, :, t))
            solver_fun!(view(Ĥ, ch, :, t), view(dataP, :, ch, t), prepared...)
        end
    end
    modelfit = stderror ? calculate_stderror(X, data, Ĥ) : nothing

    return modelfit

end

_solver_min (generic function with 1 method)

Before diving into the prepare_fun and solver_fun! functions, let's discuss first the inner loop t=1:size(dataP,3). This loop really only comes alife (that is size(dataP,3)!=1) if a mass-univariate model is fitted, that is, when ndims(data)==3`. We still have it around for 2D, un-epoched data, to have exactly the same code in both cases.

prepare_fun`

This function is the setup / prepare function. It is typically a chain of functions with similar input / output characteristica. The first fuction of the chain/pipeline should be a function taking (X,data)and returning (Ĥ::AbstractArray, dataP::AbstractArray, prepared::Tuple).

• Ĥ is used to save the beta/parameters inplace
• dataP is the data in format ch x repeat x time (with size(time) = 1 if data initially was a Matrix/2D-array)
• prepared is a tuple of all the other variables needed in the solver-step, e.g. the pinv(X) or X'X or simply X

The prepare function which is typiclly the first, just permutes the data & converts everything to GPU in case data::CuArray.

The next function in a pipeline then would take this (Ĥ::AbstractArray, dataP::AbstractArray, prepared::Tuple) inputs and process it further.`

solver_fun!

This function actually performs the fitting. It takes the inputs (Ĥ::view(Matrix),data::view(Array),prepared::Tuple)

• Ĥ is the current beta/parameters view, a vector/slice for one channel and one timepoint
• data is similarly the current data view, a vector/slice for one channel and one timepoint
• prepared is the tuple-output of the prepare function.

The solver_fun! can output some history of the solver, e.g. a log for iterative solvers.

Example (simple)

let's setup our own solver:

_my_solver!(Ĥ, data, X) = Ĥ .= Matrix(X) \ data

_my_solver! (generic function with 1 method)

let's simulate some data and see this in action

data, evts = UnfoldSim.predef_eeg()
m = fit(
    UnfoldModel,
    @formula(0 ~ 1 + condition),
    evts,
    data,
    firbasis((-0.1, 0.5), 100);
    solver = (x, y) ->
        Unfold.solver_main(x, y; solver_fun! = _my_solver!, show_time = true),
)

Remember from this table the time for one solve (~700ms on my test-computer) this is the time per channel.

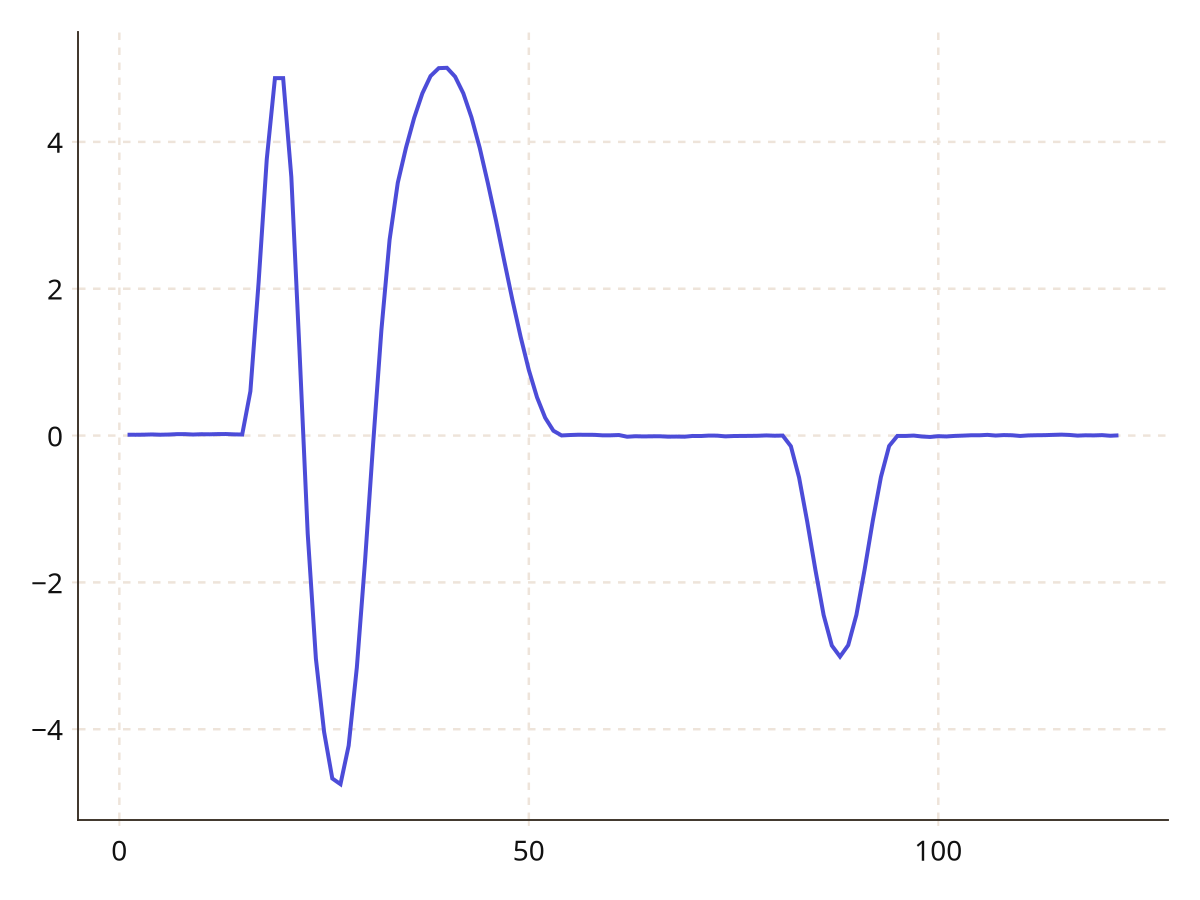

series(coef(m))

Cholesky Example

Given that the prepare function returns all necessary ingredients, this is a bit simple. So let's make it more complex

for nicety, we need some unpacking wrappers

_prepare_cholesky(all::Tuple) = _prepare_cholesky(all...)
_prepare_cholesky(Ĥ, data, all::Tuple) = _prepare_cholesky(Ĥ, data, all...)

_prepare_cholesky (generic function with 2 methods)

this function effectively only pre-calculates the cholesky decomposition

_prepare_cholesky(Ĥ, data, Xt, R_xx, R_xy) = (Ĥ, data, (Xt, cholesky(R_xx), R_xy))

_prepare_cholesky (generic function with 3 methods)

now we have everything to put together our solver-pipeline

_my_prepare =
    (x, y) -> Unfold.prepare(collect(x), y) |> Unfold.prepare_XTX |> _prepare_cholesky

#4 (generic function with 1 method)

let's test (note we have to reshape the data)

@time _my_prepare(modelmatrix(m), reshape(data, 1, :))

([0.0 0.0 … 0.0 0.0], [0.31631798033146774; 0.40338935529989906; … ; -0.22230944464885682; -0.01320095208877194;;], ([0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0; … ; 0.0 0.0 … 0.0 0.0; 0.0 0.0 … 0.0 0.0], LinearAlgebra.Cholesky{Float64, Matrix{Float64}}([44.721359549995796 0.0 … 1.3416407864998738 1.050951949424901; 0.0 44.721359549995796 … 0.872066511224918 1.3416407864998738; … ; 60.0 39.0 … 22.350948931592846 0.0017222814568252079; 47.0 60.0 … 0.0 22.35013390954843], 'U', 0), [5.0e-324, 0.0, 5.0e-324, 1.5e-323, 5.0e-324, 5.0e-324, 2.0e-323, 1.5e-323, 6.93362778451894e-310, 2.5e-323  …  1.73e-322, 6.93362778444305e-310, 2.0e-322, 1.8e-322, 6.9334739410459e-310, 2.08e-322, 1.83e-322, 6.93347394114704e-310, 2.03e-322, 1.83e-322]))

finally, we need a solver this is how we solve the single-channel equation

function _my_cholesky!(beta, data, Xt, XtX_cholesky, R_xy)
    @time Unfold.calc_Rxy!(R_xy, Xt, data)
    @time beta .= XtX_cholesky \ R_xy
end

m = fit(
    UnfoldModel,
    @formula(0 ~ 1 + condition),
    evts,
    data,
    firbasis((-0.1, 0.5), 100);
    solver = (x, y) -> Unfold.solver_main(
        x,
        y;
        prepare_fun = _my_prepare,
        solver_fun! = _my_cholesky!,
        show_time = true,
    ),
)

This (on my test-computer) took only 97ms per channel, so it is ~7x faster per channel.

series(coef(m))
