using Unfold
using UnfoldMakie, CairoMakie
using UnfoldSim
using UnfoldDecode
using DataFrames
using Statistics
include("../../example_rename_events.jl")

Motivation for BacktoBack

Introduction

“Back-to-Back” regression (B2B) is an approach to estimate the decoding performance from a set of correlated factors. Why do we need this? Let's have a look at a simple example:

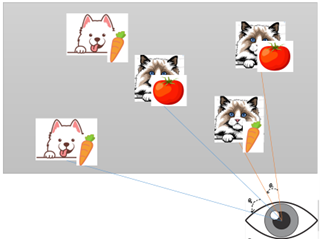

Imagine we record EEG data from an eyetracking experiment, and investigate each fixation (a resting period of the eye) as an event for an ERP. Imagine, we have both cats and dogs, but that we also make large and small eye-movements.

Data generation

Simulation and data collection

Collect the data genarated by UnfoldSim, and add certian level of noise

dat, evts = UnfoldSim.predef_eeg(; noiselevel = 0.1, return_epoched = true);
evts = example_rename_events(evts)

Data further generating

To make the example more impressive, let's add an orthogonal variable vegetable. But this variable is special: It is correlated with the covariate eye_movement_size.

evts.vegetable .=
    ["tomato", "carrot"][1 .+ (evts.eye_movement_size.+10 .* rand(size(evts, 1)).>7.5)];
cor(evts.eye_movement_size, evts.vegetable .== "carrot")

Summarized, we have three independent variables: animal, eye_movement_size, and vegetable, with the latter two being correlated.

Making it multi channel

Decoding is multivariate, so we need multiple channels. For simplicity, we just repeat the data 20 times, representing 20 channels.

dat_3d = permutedims(repeat(dat, 1, 1, 20), [3 1 2]);
dat_3d .+= 0.1 * rand(size(dat_3d)...);

Solver selection

b2b_solver = (x, y) -> UnfoldDecode.solver_b2b(x, y; cross_val_reps = 5);

Fitting function

Because we want to compare different scenarios involving different variables, we define a function to estimate them.

function run_b2b(f)
    # Define a design dictionary according to the formula
    times = range(0, 0.44, step = 1 / 100)
    designDict = [Any => (f, times)]
    # Fit the model
    m = Unfold.fit(UnfoldModel, designDict, evts, dat_3d; solver = b2b_solver)

    results = coeftable(m)
    results.estimate = abs.(results.estimate)
    results = results[results.coefname.!="(Intercept)", :]
    results.formula .= string(f)
    return results
end;

let's run a decoder without accounting for the other factors

results_all = map(
    run_b2b,
    [
        @formula(0 ~ 1 + animal),
        @formula(0 ~ 1 + vegetable),
        @formula(0 ~ 1 + eye_movement_size)
    ],
)
plot_erp(vcat(results_all...); axis = (xlabel = "Time [s]", ylabel = "Performance"))

As one can see, all three variables can be decoded well. Even though vegetable had no effect on the data!!

Let's now use B2B to take into account the correlation between vegetable and eye_movement_size:

results_all = map(
    run_b2b,
    [@formula(0 ~ 1 + vegetable), @formula(0 ~ 1 + vegetable + eye_movement_size)],
)
plot_erp(
    vcat(results_all...);
    mapping = (; color = :coefname, row = :formula),
    axis = (xlabel = "Time [s]", ylabel = "Performance"),
)

As can be seen, when modelling both effects (lower plot), the vegetable effect (correctly and as intended) vanishes. We now learned, that decodable information is only in eye_movement_size, but not vegetable, which is "just" correlated

For completeness sake, we also include the comparison to a non-correlated effect

results_all = map(
    run_b2b,
    [@formula(0 ~ 1 + animal), @formula(0 ~ 1 + animal + vegetable + eye_movement_size)],
)
plot_erp(
    vcat(results_all...);
    mapping = (; color = :coefname, row = :formula),
    axis = (xlabel = "Time [s]", ylabel = "Performance"),
)

the animal effect remains untouched :)
