using UnfoldDecode
using UnfoldSim
using UnfoldMakie
using CairoMakie
using Unfold

Overlap-corrected decoding tutorial

This approach follows the work of the Deoulle Group, especially Gal Vishne's work as published 2023: https://doi.org/10.1101/2023.06.28.546397

Simulation

We start with simulating some continuous, overlapping data with two conditions. As of now, UnfoldSim doesnt support multichannel, so we simply repeat the channel and add some noise`

dat, evt = UnfoldSim.predef_eeg()
dat = repeat(dat', 5)
dat .= dat .+ 20 .* rand(size(dat)...)

5×120199 Matrix{Float64}:
  4.47017   4.14245   2.84318   3.5998   …  10.1947    1.6747  10.6637
 19.3169   17.2812   20.3574   13.0755      13.3753   14.8961   1.75375
 16.3673   20.0926    4.53176   3.94819      3.58889   2.07     7.6664
  2.92952   4.32864  19.346     4.76091      8.54636  18.5658   5.1866
  5.8916   12.9058   16.3997   14.4299      13.5615   12.2012   8.2243

We have to define what model we want to use for overlap correction We decide for a one-basisfunction model, with one one condition and one covariate, from -0.1 to 0.5 seconds afte the stimulus onset. Sampling rate 100 as in the simulation

des = [Any => (@formula(0 ~ 1 + condition + continuous), firbasis((-0.1, 1.0), 100))];

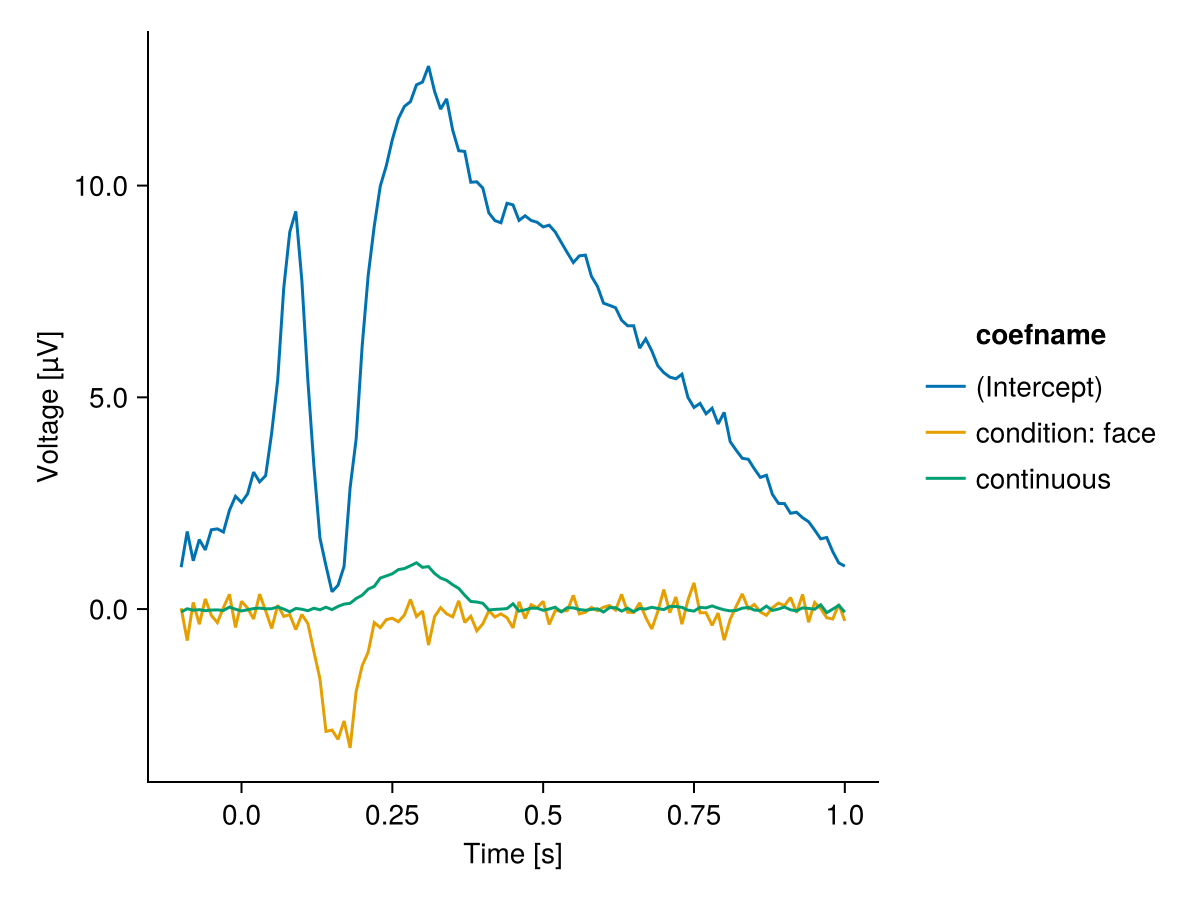

Fitting and visualizing a single channel of the model

uf = Unfold.fit(UnfoldModel, des, evt, dat[1, :]);
plot_erp(coeftable(uf))

Fitting the Overlap-corrected LDA model

Following the MLJ Modelzoo we have to do the following to load an LDA model

using MLJ, MultivariateStats, MLJMultivariateStatsInterface
LDA = @load LDA pkg = MultivariateStats
uf_lda =
    Unfold.fit(UnfoldDecodingModel, des, evt, dat, LDA(), Any => :condition; nfolds = 2) # 2 folds to speed up computation

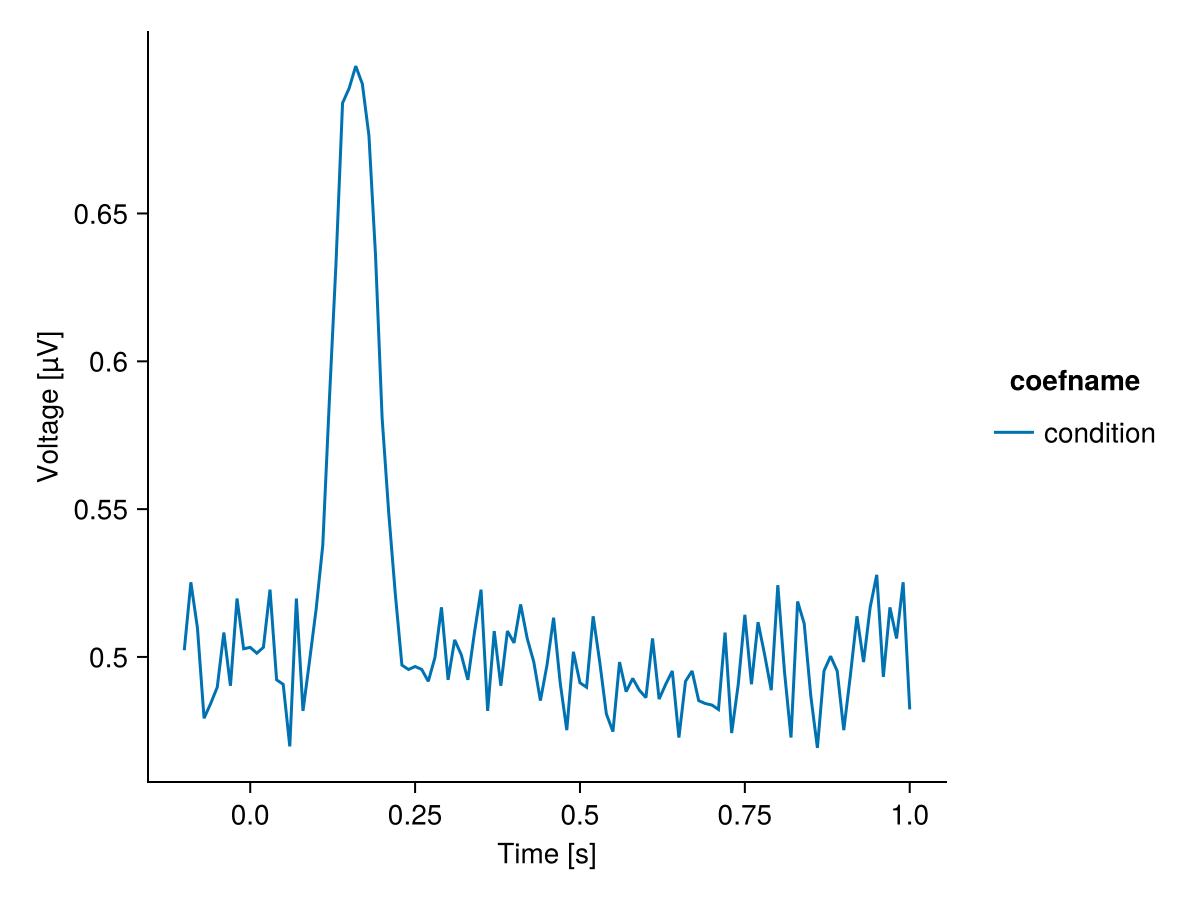

plot_erp(coeftable(uf_lda); mapping = (; color = :coefname))

Voila, the model classified the correct period.
