Contrast Coding

using CairoMakie
using Unfold
using UnfoldMakie
using UnfoldSim


# Contrast coding

Unfold.jl uses the StatsModels package for the formula interface. This allows for a wide range of contrast coding schemes. For a full tutorial, please see the StatsModels docs. Please read their tutorial, as a motivation of why one would change the contrast coding scheme is outside of the realms of this package and more a basic linear regression question.

Here we will show a simple example of how to change the contrast coding scheme. We will use the condition variable, which has two levels, A and B. We will change the contrast coding from Dummy aka Reference aka 0/1 coding to Sum coding, which is the default in R.

eeg, evts = UnfoldSim.predef_eeg(noiselevel = 0)
f = @formula 0 ~ 1 + condition
basis = firbasis((-0.1, 0.6), 100)
m_dummy = fit(UnfoldModel, f, evts, eeg, basis)
m_effec =
    fit(UnfoldModel, f, evts, eeg, basis; contrasts = Dict(:condition => EffectsCoding()))

we could directly inspect the designmatrix

modelmatrix(m_dummy, false)[1][1:5, :]

5×2 Matrix{Float64}:
 1.0  0.0
 1.0  1.0
 1.0  0.0
 1.0  0.0
 1.0  0.0

and the effects coding

modelmatrix(m_effec, false)[1][1:5, :]

5×2 Matrix{Float64}:
 1.0  -1.0
 1.0   1.0
 1.0  -1.0
 1.0  -1.0
 1.0  -1.0

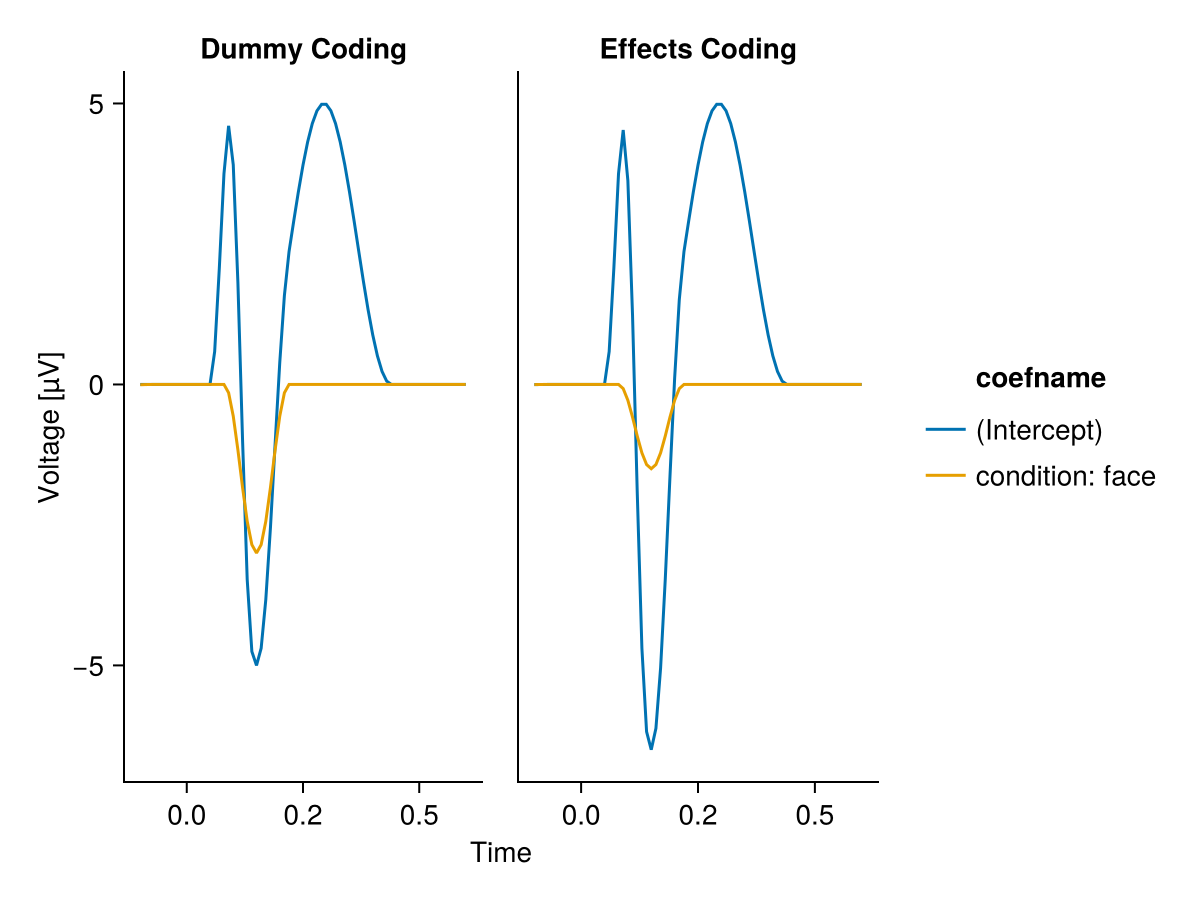

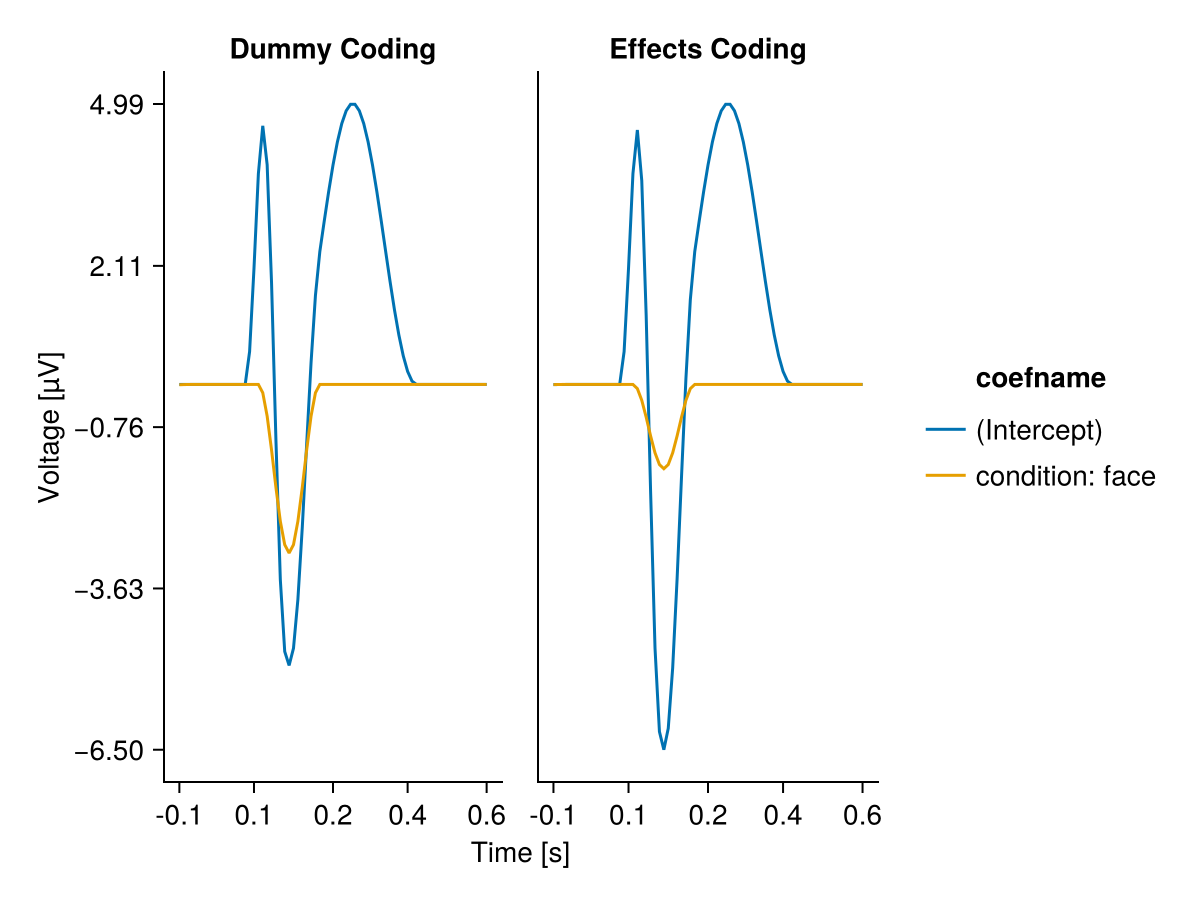

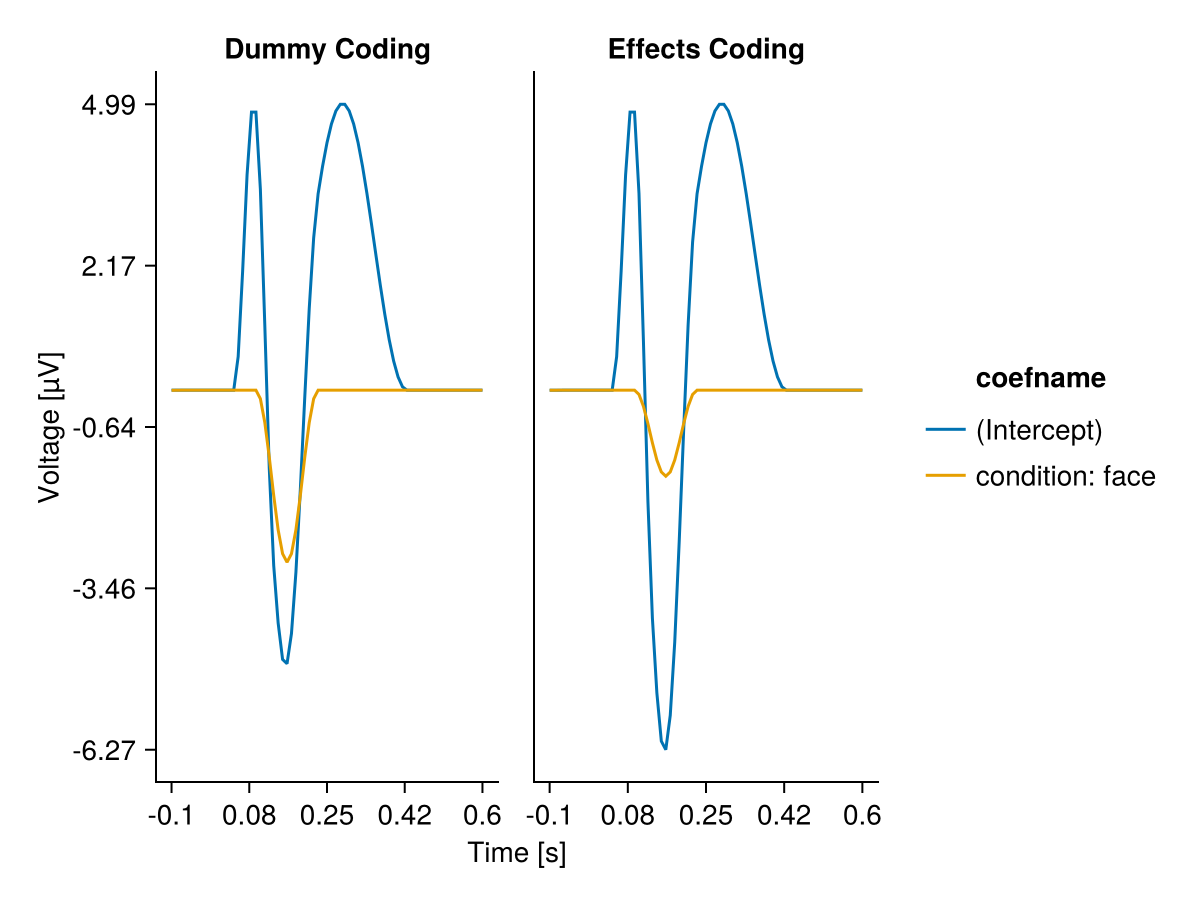

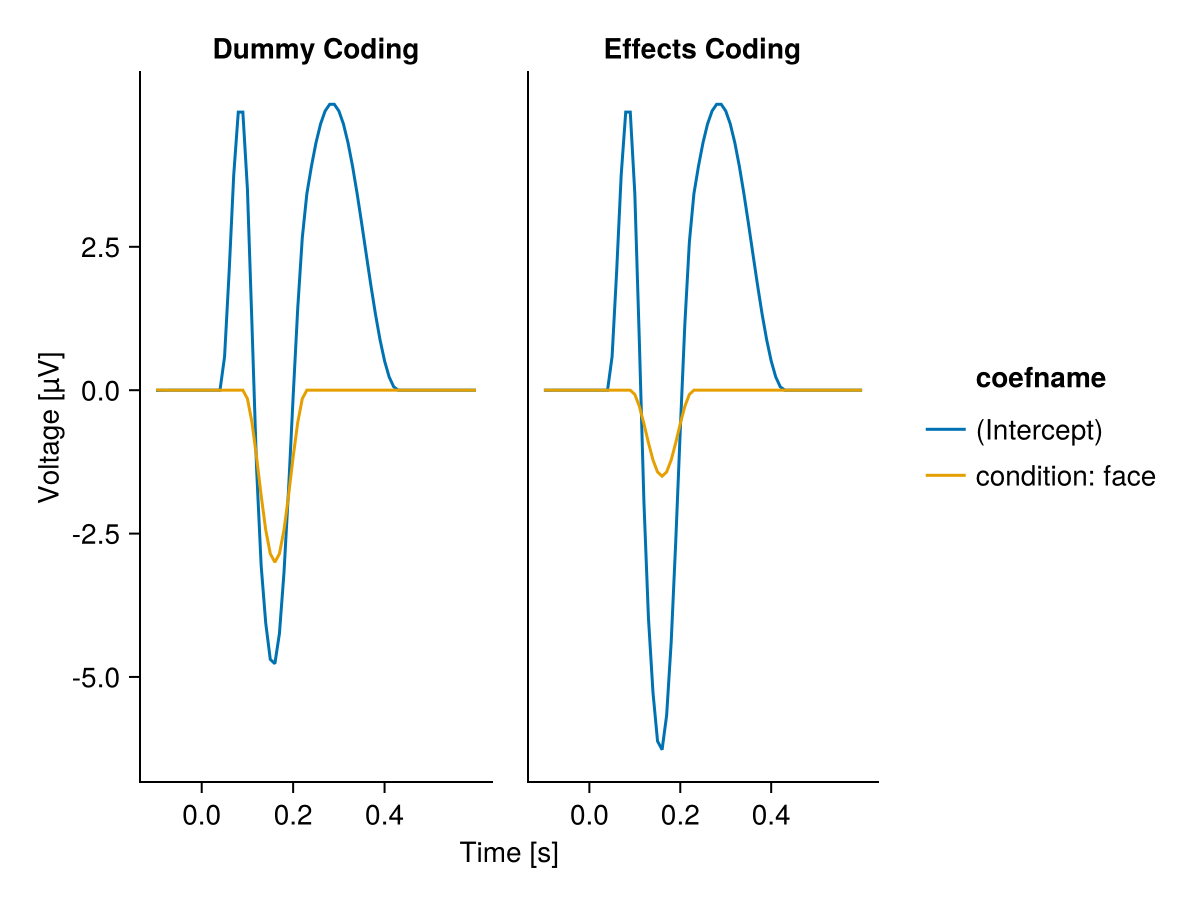

To confirm the difference in the actual fit, let's visualize them

c_d = coeftable(m_dummy)
c_e = coeftable(m_effec)
c_d.group .= "Dummy Coding"
c_e.group .= "Effects Coding"
c = vcat(c_d, c_e)

plot_erp(c; mapping = (; color = :coefname, col = :group))

As expected, the effects-coding slope of condition: face is half the size of the dummy-coding one (because -1/1 coding was used).
