Speed measurement

Here we will compare the speed of plotting UnfoldMakie with MNE (Python) and EEGLAB (MATLAB).

Three cases are measured:

  • Single topoplot
  • Topoplot series with 50 topoplots
  • Topoplott animation with 50 timestamps

Note that the results of benchmarking on your computer and on Github may differ.

using UnfoldMakie
using TopoPlots
using BenchmarkTools
using Observables
using CairoMakie
using Statistics
using PythonPlot;
using PyMNE;
    CondaPkg Found dependencies: /home/runner/.julia/packages/CondaPkg/8GjrP/CondaPkg.toml
    CondaPkg Found dependencies: /home/runner/.julia/packages/PyMNE/AlJE6/CondaPkg.toml
    CondaPkg Found dependencies: /home/runner/.julia/packages/PythonCall/83z4q/CondaPkg.toml
    CondaPkg Found dependencies: /home/runner/.julia/packages/PythonPlot/oS8x4/CondaPkg.toml
    CondaPkg Dependencies already up to date

Data input

dat, positions = TopoPlots.example_data()
df = UnfoldMakie.eeg_array_to_dataframe(dat[:, :, 1], string.(1:length(positions)));

Topoplots

UnfoldMakie.jl

@benchmark plot_topoplot(dat[:, 320, 1]; positions = positions)
BenchmarkTools.Trial: 101 samples with 1 evaluation per sample.
 Range (min … max):  44.910 ms … 310.186 ms  ┊ GC (min … max): 0.00% … 83.97%
 Time  (median):     46.677 ms               ┊ GC (median):    0.00%
 Time  (mean ± σ):   49.425 ms ±  26.236 ms  ┊ GC (mean ± σ):  5.22% ±  8.36%

  ▃    █  ▆▆ ▆▆ ▁▁▁▁▆▃▃▁ █▃▁
  █▁▇▄▁█▇▄██▄██▁████████▇███▇▁▇▄▁▁▇▁▄▁▄▁▄▁▄▄▁▇▁▇▁▁▁▄▁▁▁▁▁▄▄▁▁▄ ▄
  44.9 ms         Histogram: frequency by time         50.8 ms <

 Memory estimate: 11.82 MiB, allocs estimate: 194614.

UnfoldMakie.jl with DelaunayMesh

@benchmark plot_topoplot(
    dat[:, 320, 1];
    positions = positions,
    topo_interpolation = (; interpolation = DelaunayMesh()),
)
BenchmarkTools.Trial: 96 samples with 1 evaluation per sample.
 Range (min … max):  46.061 ms … 344.059 ms  ┊ GC (min … max): 0.00% … 84.33%
 Time  (median):     49.735 ms               ┊ GC (median):    0.00%
 Time  (mean ± σ):   52.433 ms ±  30.141 ms  ┊ GC (mean ± σ):  5.76% ±  8.61%

      ▆  ▃▃  ▁         ▁    ▃▃  ▁▃ ▁ █▃   ▁
  ▇▁▇▁█▄▇██▇▇█▇▇▇▄▇▄▇▇▄█▁▁▄▁██▇▇██▇█▄██▄▄▁█▁▁▄▄▄▄▇▁▄▁▁▁▁▁▁▁▄▁▄ ▁
  46.1 ms         Histogram: frequency by time         54.4 ms <

 Memory estimate: 11.82 MiB, allocs estimate: 194621.

MNE

posmat = collect(reduce(hcat, [[p[1], p[2]] for p in positions])')
pypos = Py(posmat).to_numpy()
pydat = Py(dat[:, 320, 1])

@benchmark begin
    f = PythonPlot.figure()
    PyMNE.viz.plot_topomap(
        pydat,
        pypos,
        sphere = 1.1,
        extrapolate = "box",
        cmap = "RdBu_r",
        sensors = false,
        contours = 6,
    )
    f.show()
end
BenchmarkTools.Trial: 315 samples with 1 evaluation per sample.
 Range (min … max):  11.602 ms … 750.502 ms  ┊ GC (min … max): 0.00% … 0.00%
 Time  (median):     11.819 ms               ┊ GC (median):    0.00%
 Time  (mean ± σ):   18.109 ms ±  62.350 ms  ┊ GC (mean ± σ):  0.00% ± 0.00%

  ▂▇▇█▇▅▄▂
  ████████▇▇▄▁▁▁▄▁▁▁▁▁▄▁▁▁▁▁▁▁▁▁▁▁▁▇▆▁▆█▆▇▆▇▄▆▁▆▄▁▁▆▄▁▁▁▁▁▁▁▆▄ ▇
  11.6 ms       Histogram: log(frequency) by time        15 ms <

 Memory estimate: 3.30 KiB, allocs estimate: 98.

Topoplot series

Note that UnfoldMakie and MNE have different defaults for displaying topoplot series. UnfoldMakie in plot_topoplot averages over time samples. MNE in plot_topopmap displays single samples without averaging.

UnfoldMakie.jl

@benchmark begin
    plot_topoplotseries(
        df;
        bin_num = 50,
        positions = positions,
        axis = (; xlabel = "Time windows [s]"),
    )
end
BenchmarkTools.Trial: 3 samples with 1 evaluation per sample.
 Range (min … max):  1.941 s …   2.061 s  ┊ GC (min … max): 0.00% … 0.00%
 Time  (median):     2.028 s              ┊ GC (median):    0.00%
 Time  (mean ± σ):   2.010 s ± 61.968 ms  ┊ GC (mean ± σ):  0.00% ± 0.00%

  █                                        █              █
  █▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁█▁▁▁▁▁▁▁▁▁▁▁▁▁▁█ ▁
  1.94 s         Histogram: frequency by time        2.06 s <

 Memory estimate: 342.16 MiB, allocs estimate: 4920162.

MNE

easycap_montage = PyMNE.channels.make_standard_montage("standard_1020")
ch_names = pyconvert(Vector{String}, easycap_montage.ch_names)[1:64]
info = PyMNE.create_info(PyList(ch_names), ch_types = "eeg", sfreq = 1)
info.set_montage(easycap_montage)
simulated_epochs = PyMNE.EvokedArray(Py(dat[:, :, 1]), info)

@benchmark simulated_epochs.plot_topomap(1:50)
BenchmarkTools.Trial: 6 samples with 1 evaluation per sample.
 Range (min … max):  673.464 ms …    1.992 s  ┊ GC (min … max): 0.00% … 0.00%
 Time  (median):     679.535 ms               ┊ GC (median):    0.00%
 Time  (mean ± σ):   897.716 ms ± 536.307 ms  ┊ GC (mean ± σ):  0.00% ± 0.00%

  █
  █▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▅ ▁
  673 ms           Histogram: frequency by time          1.99 s <

 Memory estimate: 2.39 KiB, allocs estimate: 69.

MATLAB

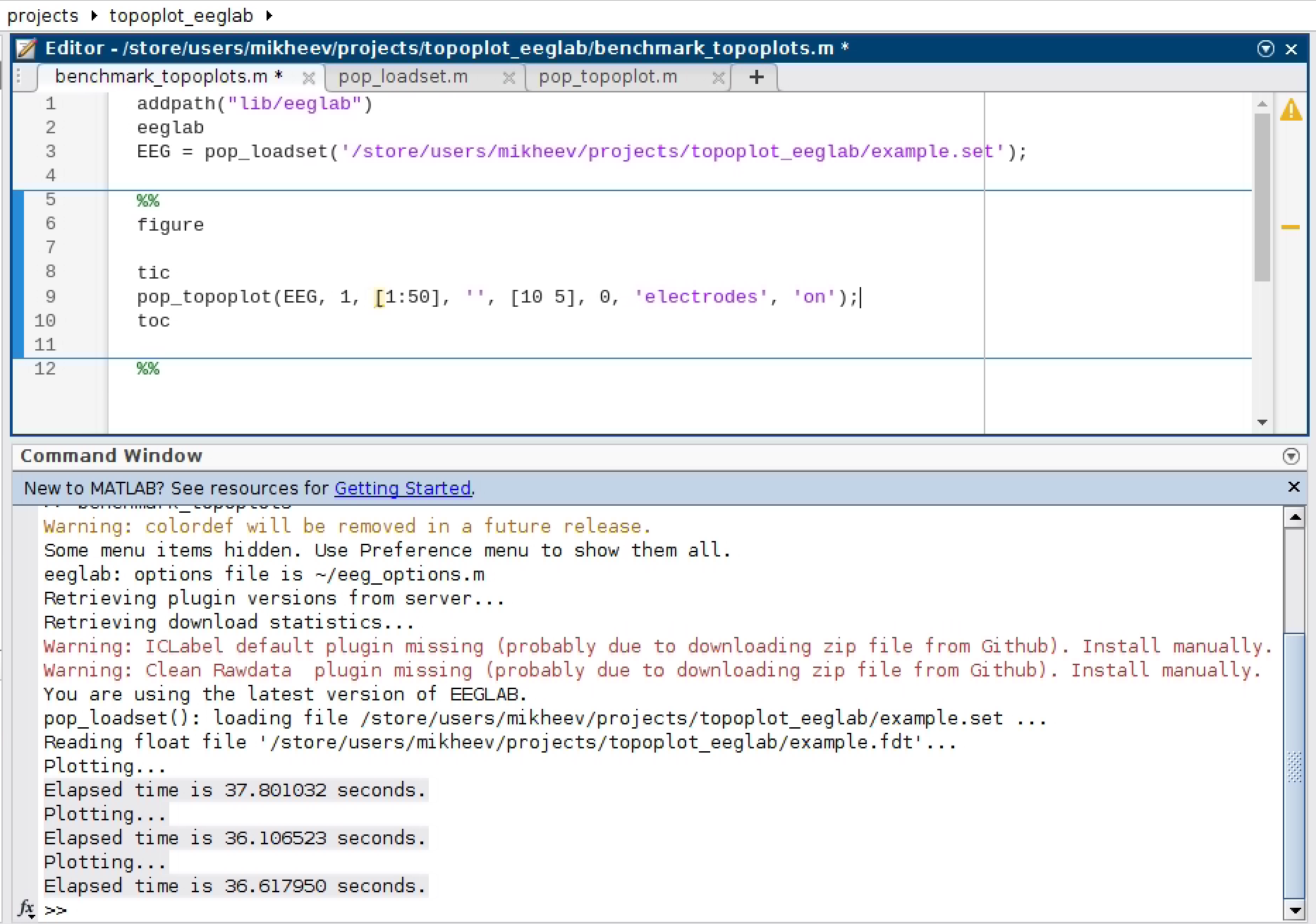

Running MATLAB on a GitHub Action is not easy. So we benchmarked three consecutive executions (on a screenshot) on a server with an AMD EPYC 7452 32-core processor. Note that Github and the server we used for MATLAB benchmarking are two different computers, which can give different timing results.

Animation

The main advantage of Julia is the speed with which the figures are updated.

timestamps = range(1, 50, step = 1)
framerate = 50
50

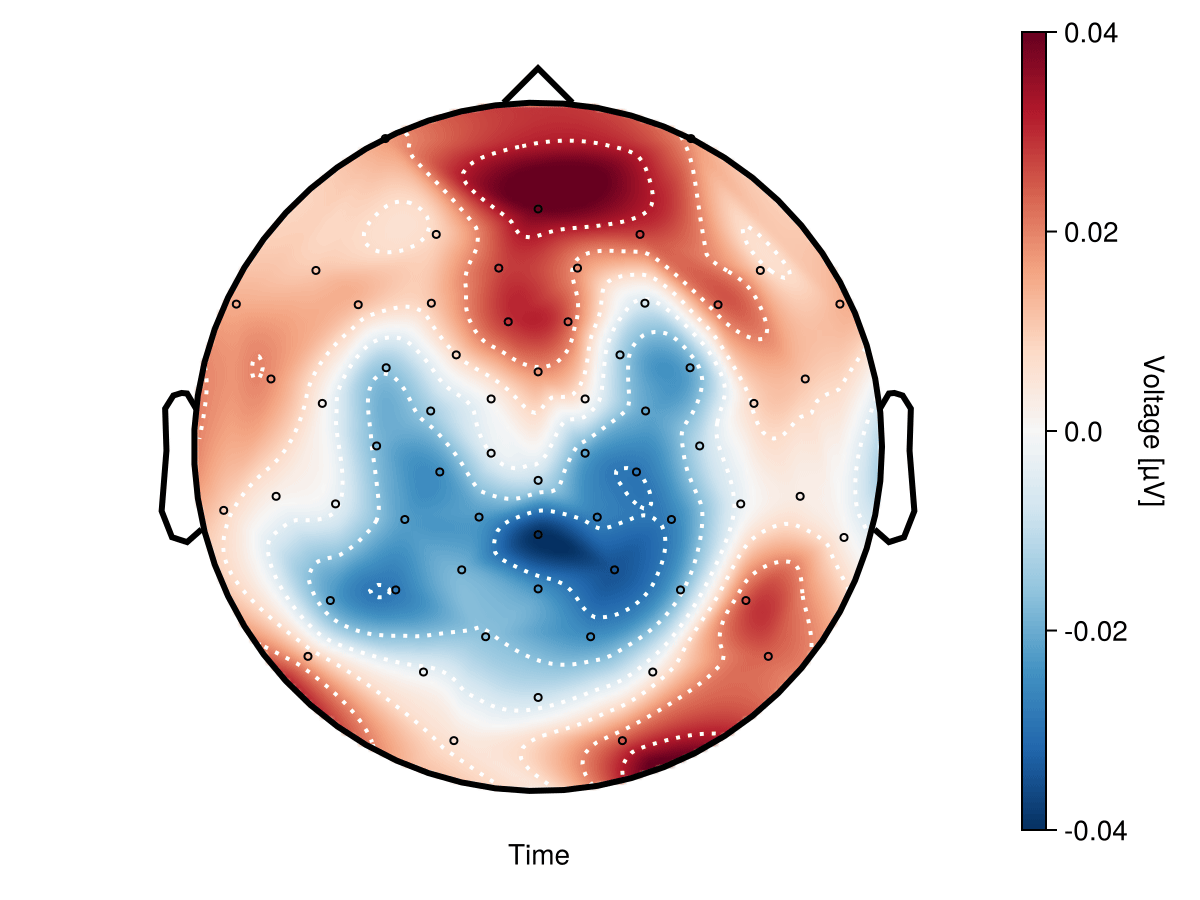

UnfoldMakie with .gif

vals = vec(dat[:, :, 1])
p01, p99 = quantile(vals, [0.01, 0.99])
m = max(abs(p01), abs(p99))
cr = Float32.((-m, m))
@benchmark begin
    f = Makie.Figure()
    dat_obs = Observable(dat[:, 1, 1])
    plot_topoplot!(f[1, 1], dat_obs, positions = positions, visual = (; contours = false, colorrange = cr),)
    record(f, "topoplot_animation_UM.gif", timestamps; framerate = framerate) do t
        dat_obs[] = @view(dat[:, t, 1])
    end
end
BenchmarkTools.Trial: 3 samples with 1 evaluation per sample.
 Range (min … max):  1.943 s …   2.079 s  ┊ GC (min … max): 0.00% … 0.00%
 Time  (median):     1.966 s              ┊ GC (median):    0.00%
 Time  (mean ± σ):   1.996 s ± 72.974 ms  ┊ GC (mean ± σ):  0.00% ± 0.00%

  █        █                                              █
  █▁▁▁▁▁▁▁▁█▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁█ ▁
  1.94 s         Histogram: frequency by time        2.08 s <

 Memory estimate: 120.33 MiB, allocs estimate: 416775.

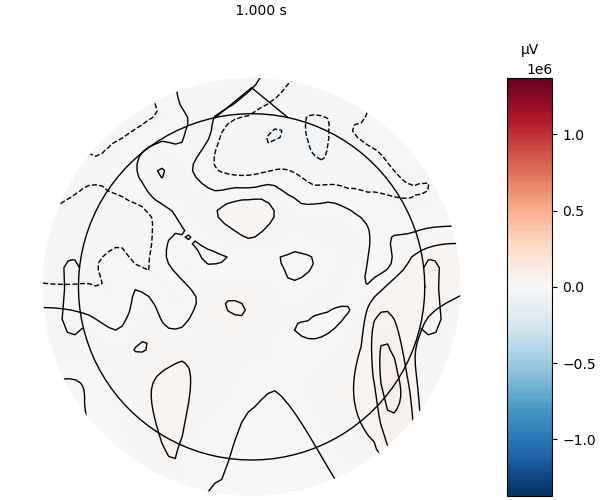

MNE with .gif

@benchmark begin
    fig, anim = simulated_epochs.animate_topomap(
        times = Py(timestamps),
        frame_rate = framerate,
        blit = false,
        image_interp = "cubic", # same as CloughTocher
    )
    anim.save("topomap_animation_mne.gif", writer = "ffmpeg", fps = framerate)
end
BenchmarkTools.Trial: 1 sample with 1 evaluation per sample.
 Single result which took 7.925 s (0.00% GC) to evaluate,
 with a memory estimate of 3.03 KiB, over 96 allocations.

Note, that due to some bugs in (probably) PythonCall topoplot is black and white.
