Change colormap of Butterfly plot

You want to change the colors of the lines and markers on the inserted topoplot. To do that you need to change the color scheme (aka color map) of the butterfly plot. You can find the list of colormaps for Makie here.

Setup

using UnfoldMakie
using CairoMakie
using DataFramesMeta
using Colors

results, positions = UnfoldMakie.example_data("TopoPlots.jl");

Simpliest way to change the colors is to use visual.colormap argument.

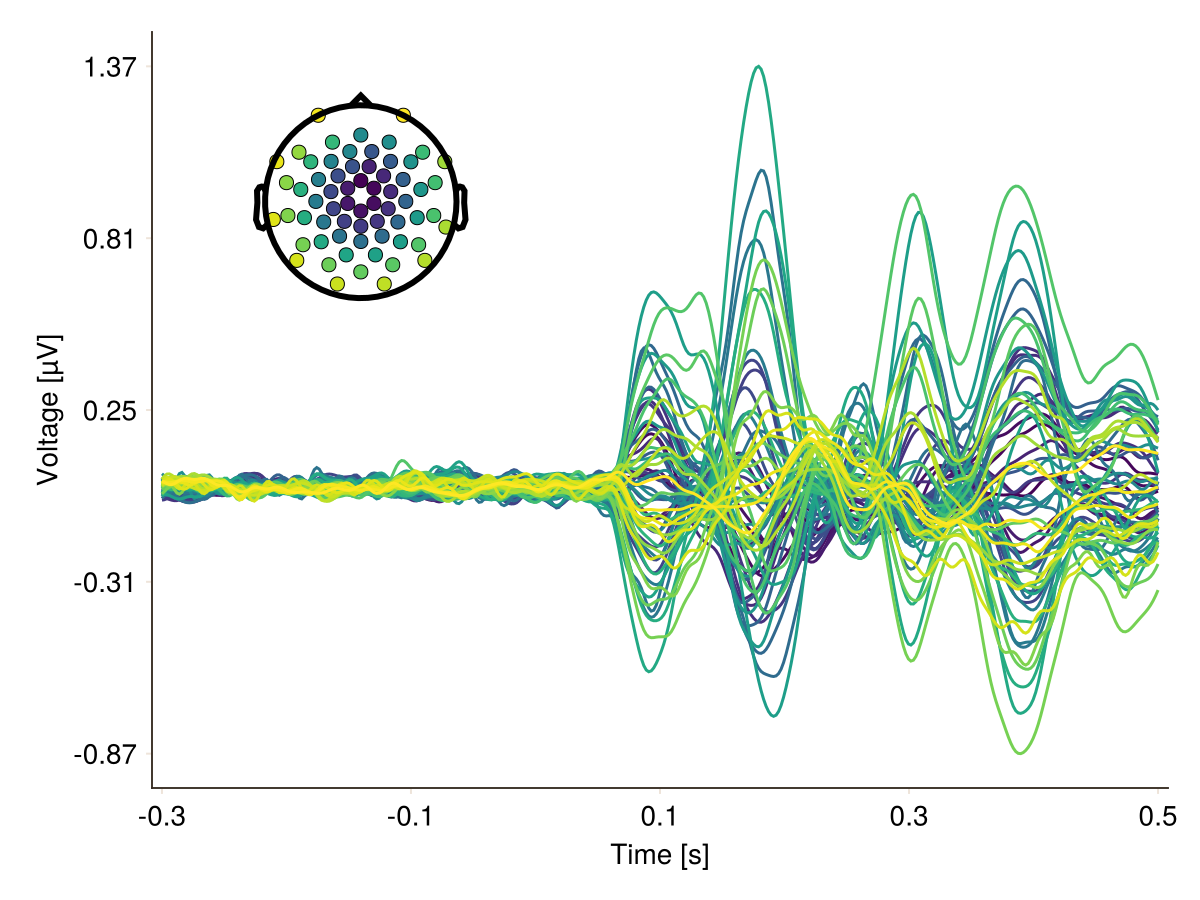

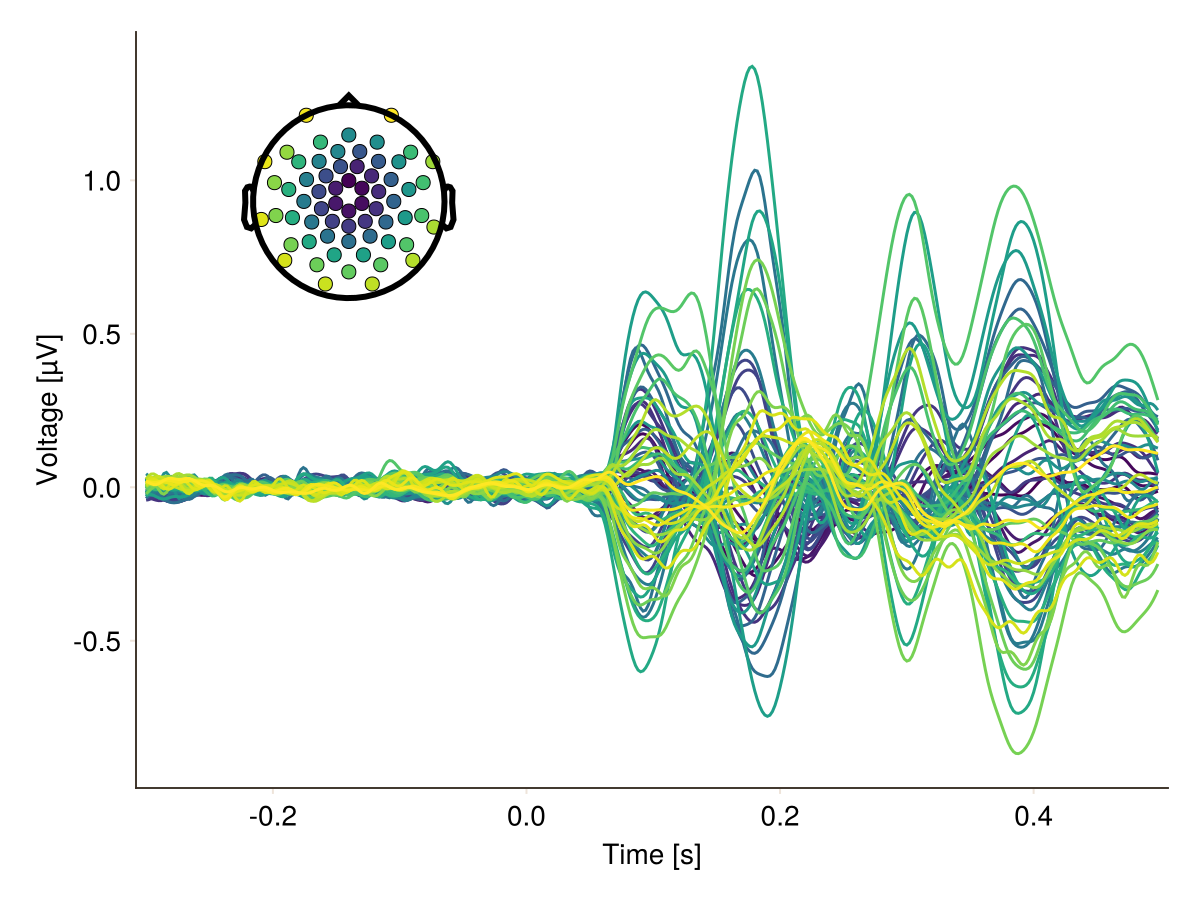

plot_butterfly(results; positions = positions, visual = (; colormap = :viridis))

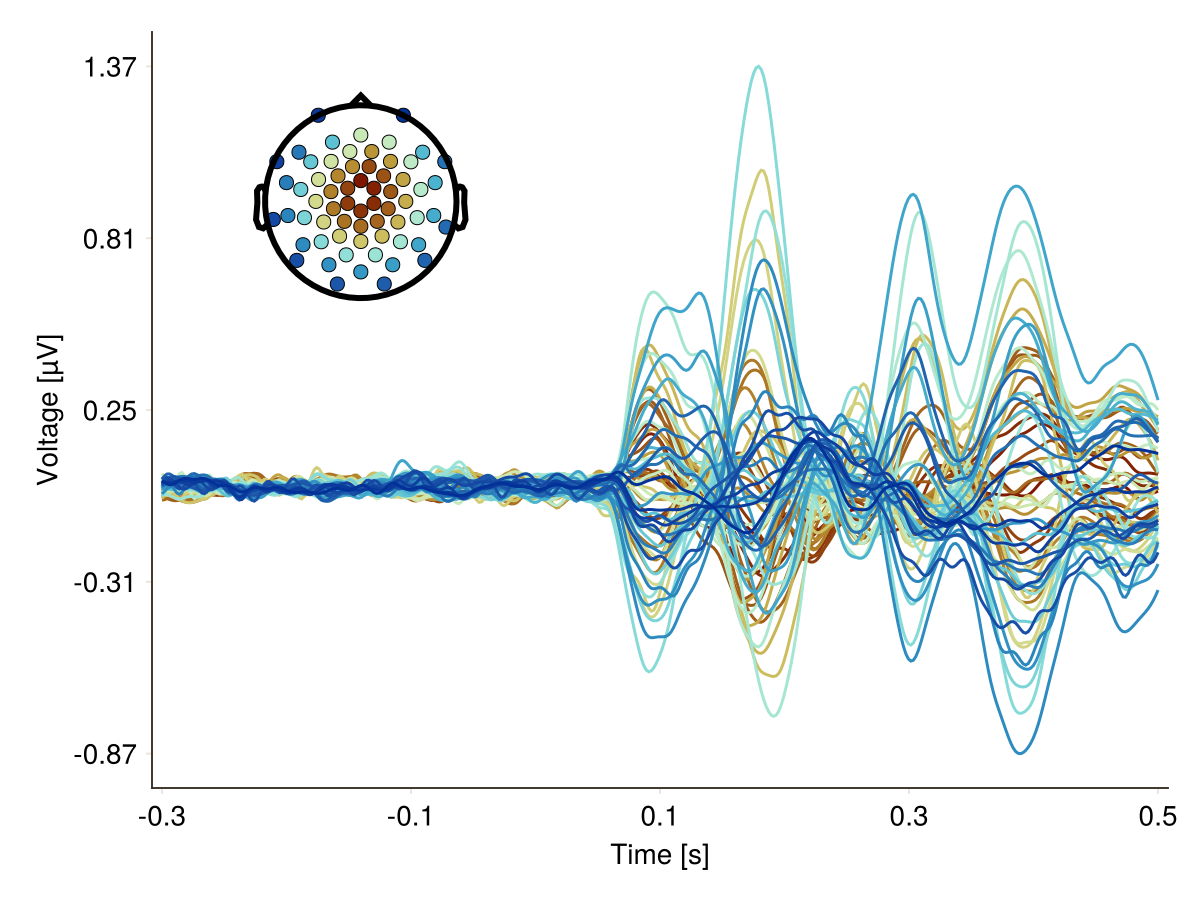

Example block output

But as you may notice it is not the correct way to do it: color is changing from center to periphery, but not according to the position of the electrodes.

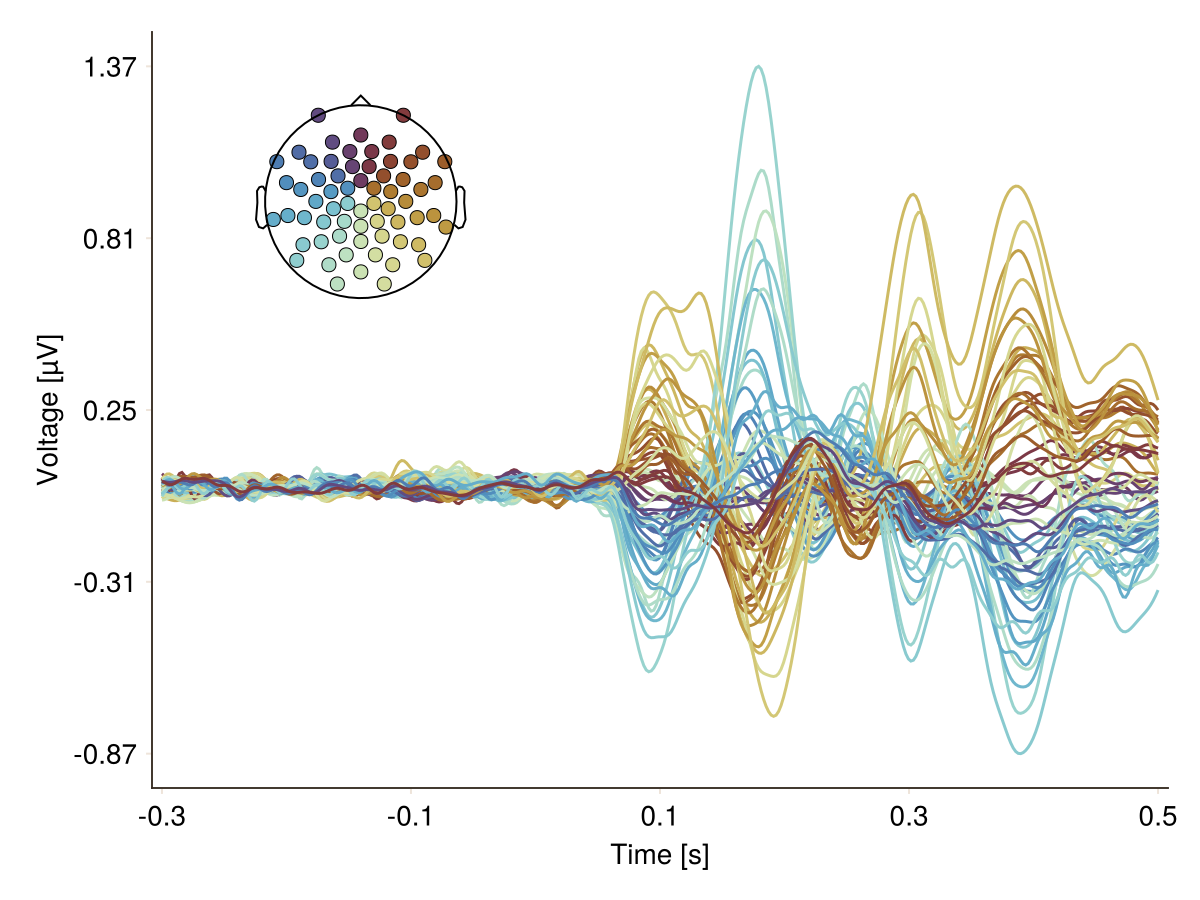

By default we use romaO colormap using the methods described below:

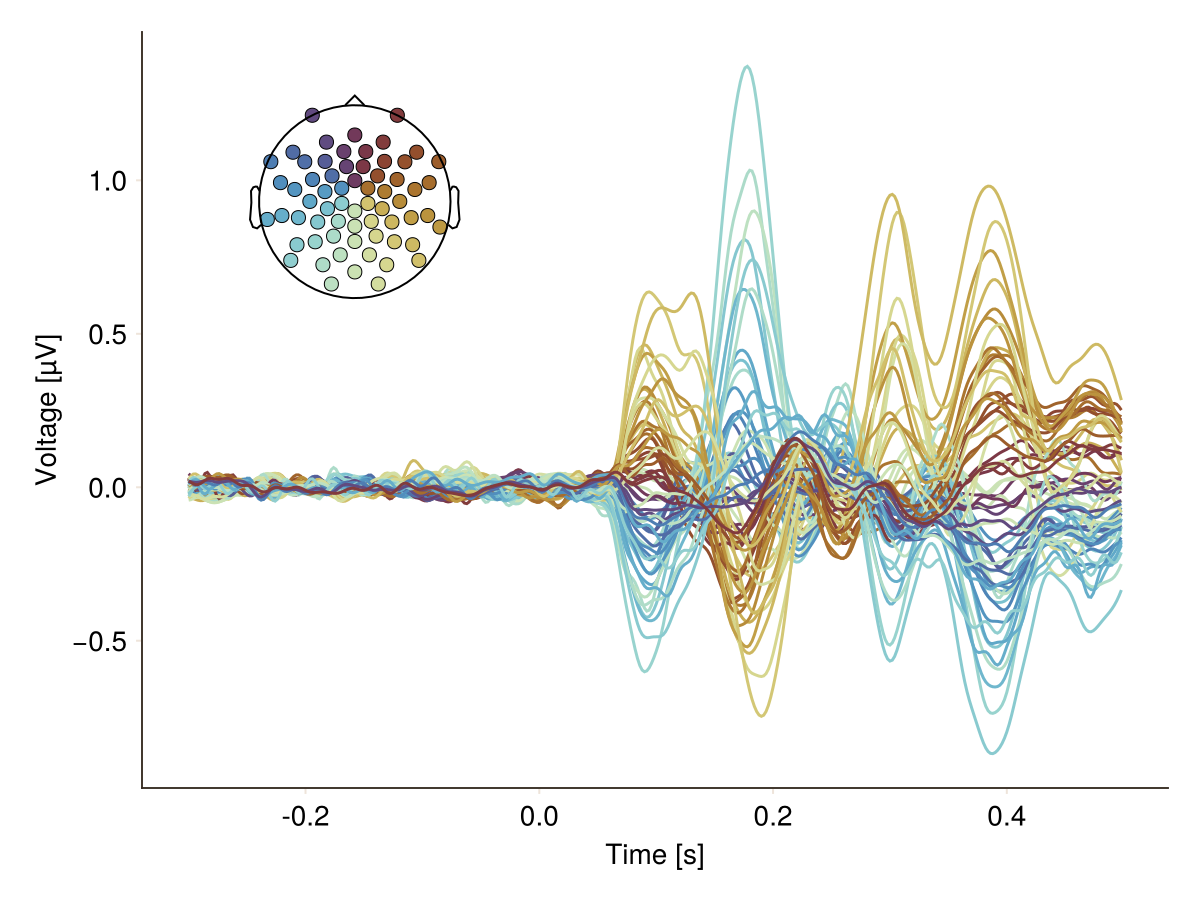

plot_butterfly(results; positions = positions)

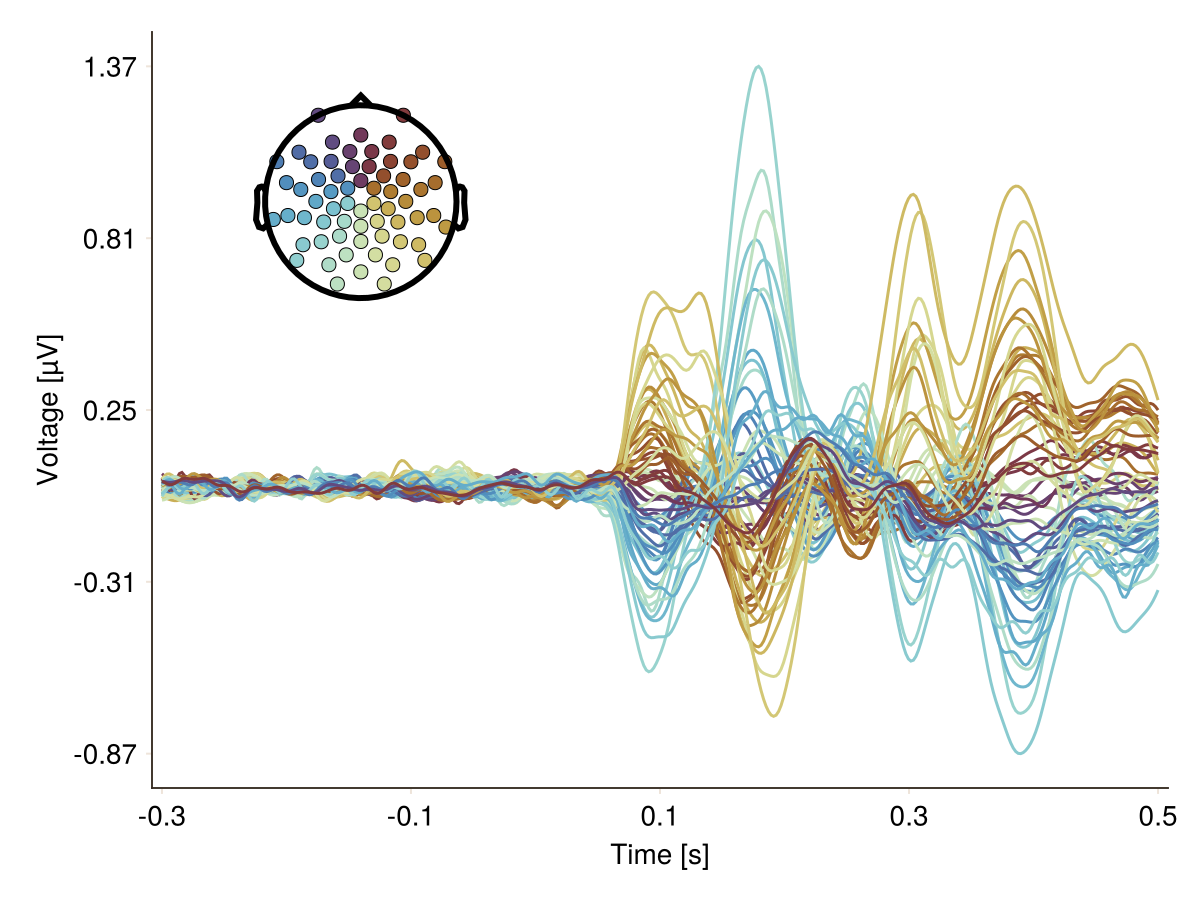

Example block output

Color schemes

MNE style

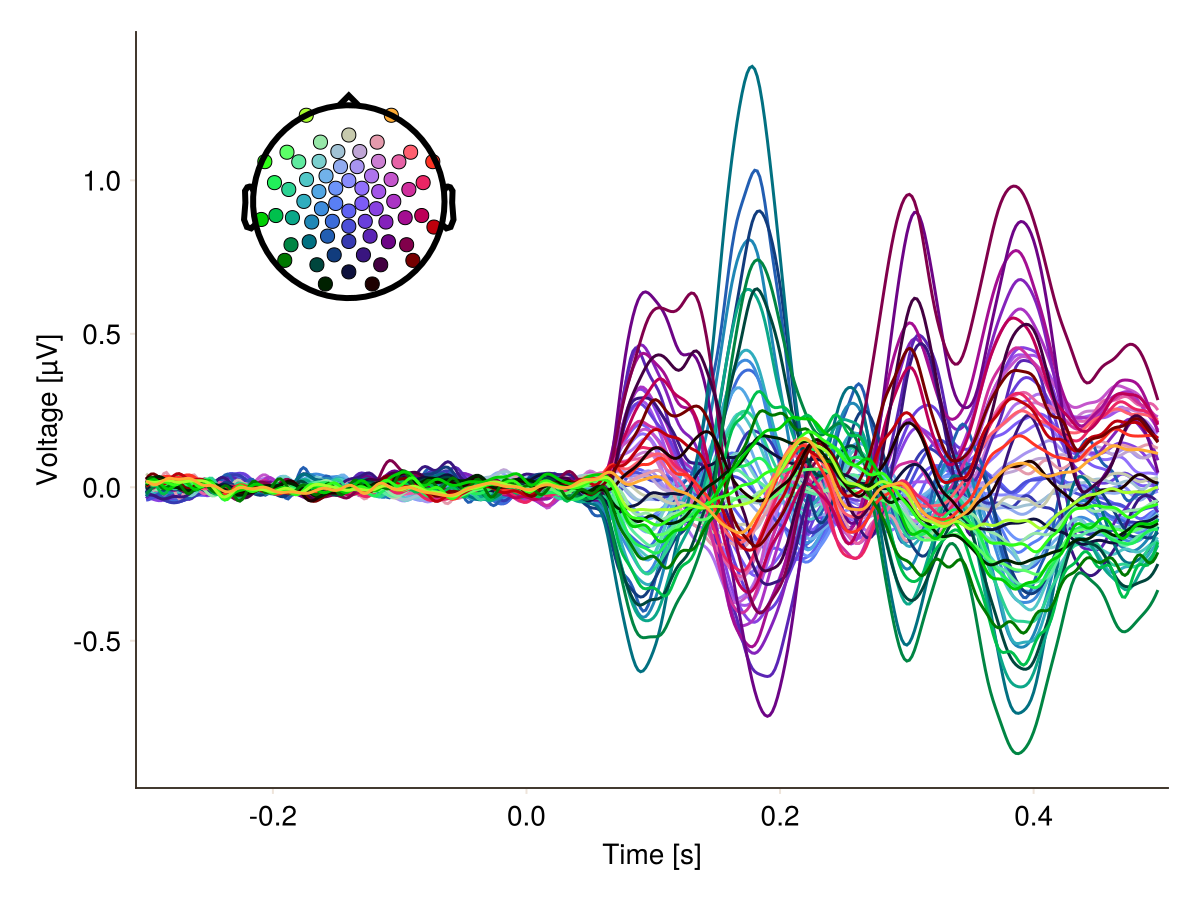

We can change the color scale by specifying a function that maps from an (x, y) tuple to a color. UnfoldMakie currently provides three different color scales:

  • pos_to_color_RGB (same as MNE-Python),
  • pos_to_color_HSV (HSV color space),
  • pos_to_color_RomaO.

While RGB & HSV have the advantage of being 2D color maps, Roma0 has the advantage of being perceptually uniform. Also you can specify a uniform color.

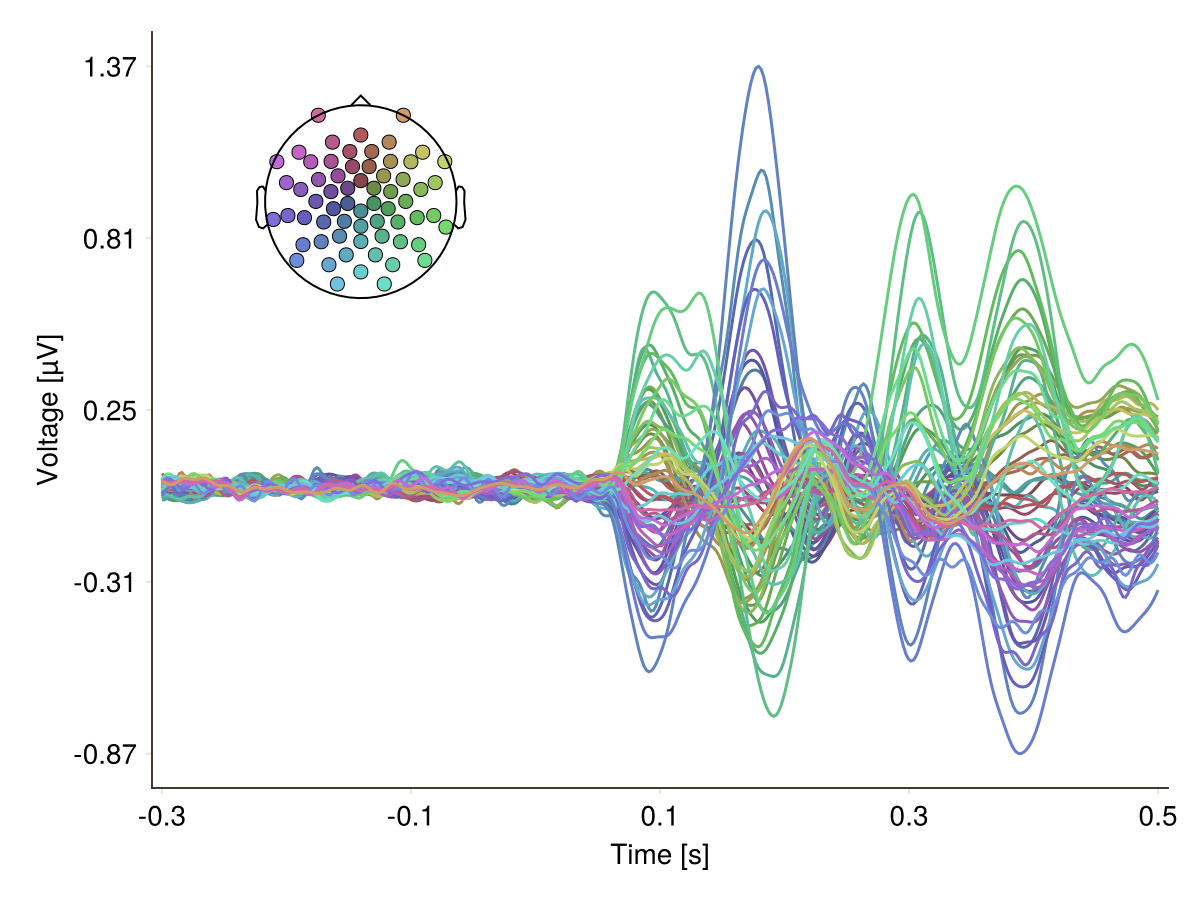

plot_butterfly(
    results;
    positions = positions,
    topopositions_to_color = pos -> UnfoldMakie.pos_to_color_RGB(pos),
)

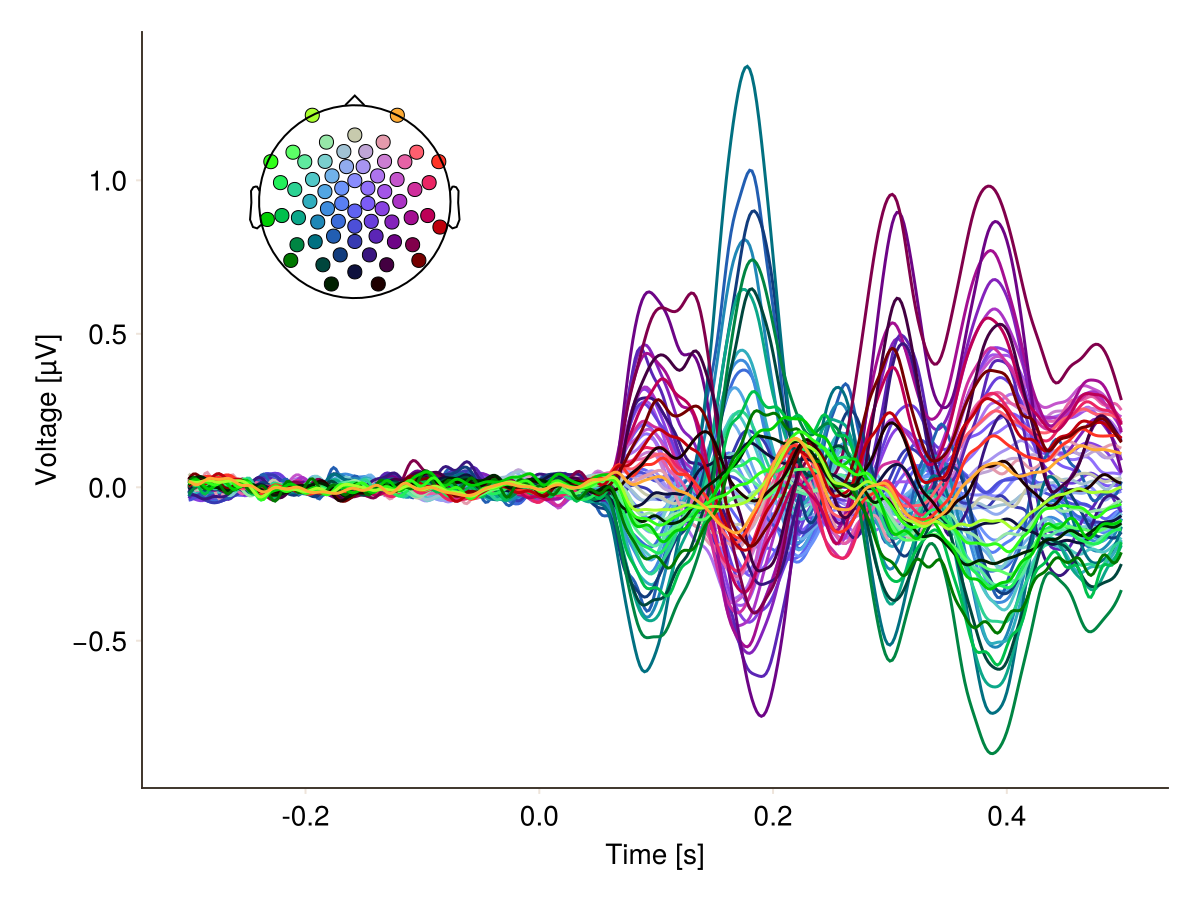

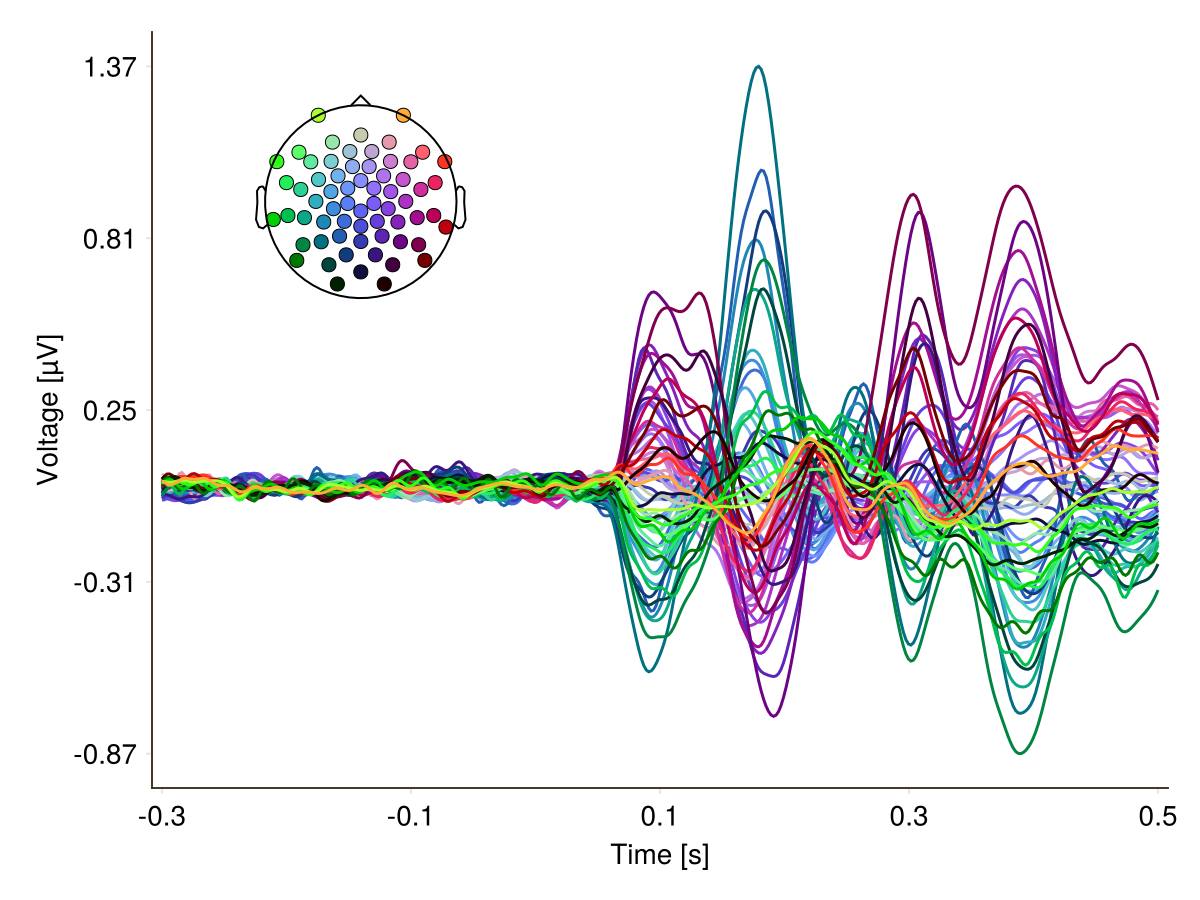

Example block output

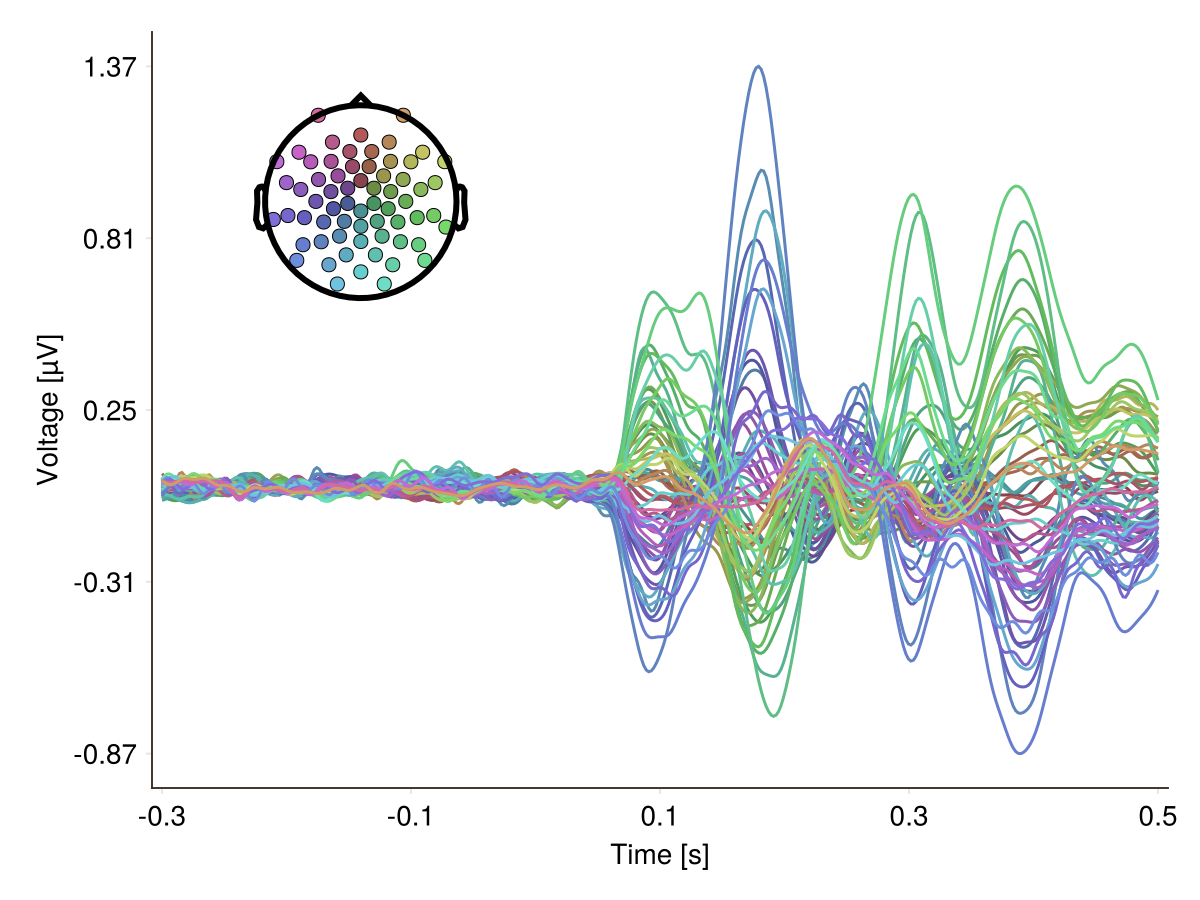

HSV-Space

plot_butterfly(
    results;
    positions = positions,
    topopositions_to_color = UnfoldMakie.pos_to_color_HSV,
)

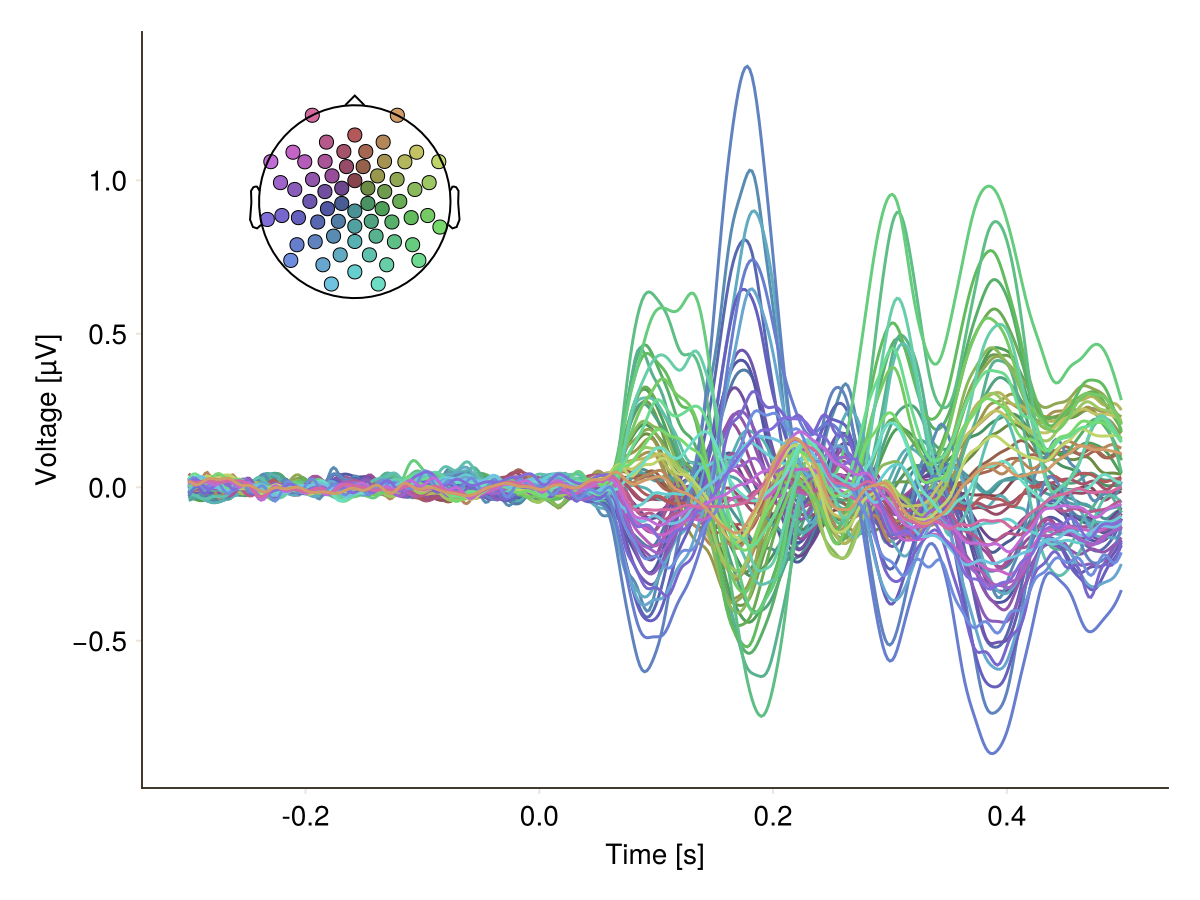

Example block output

Uniform Color

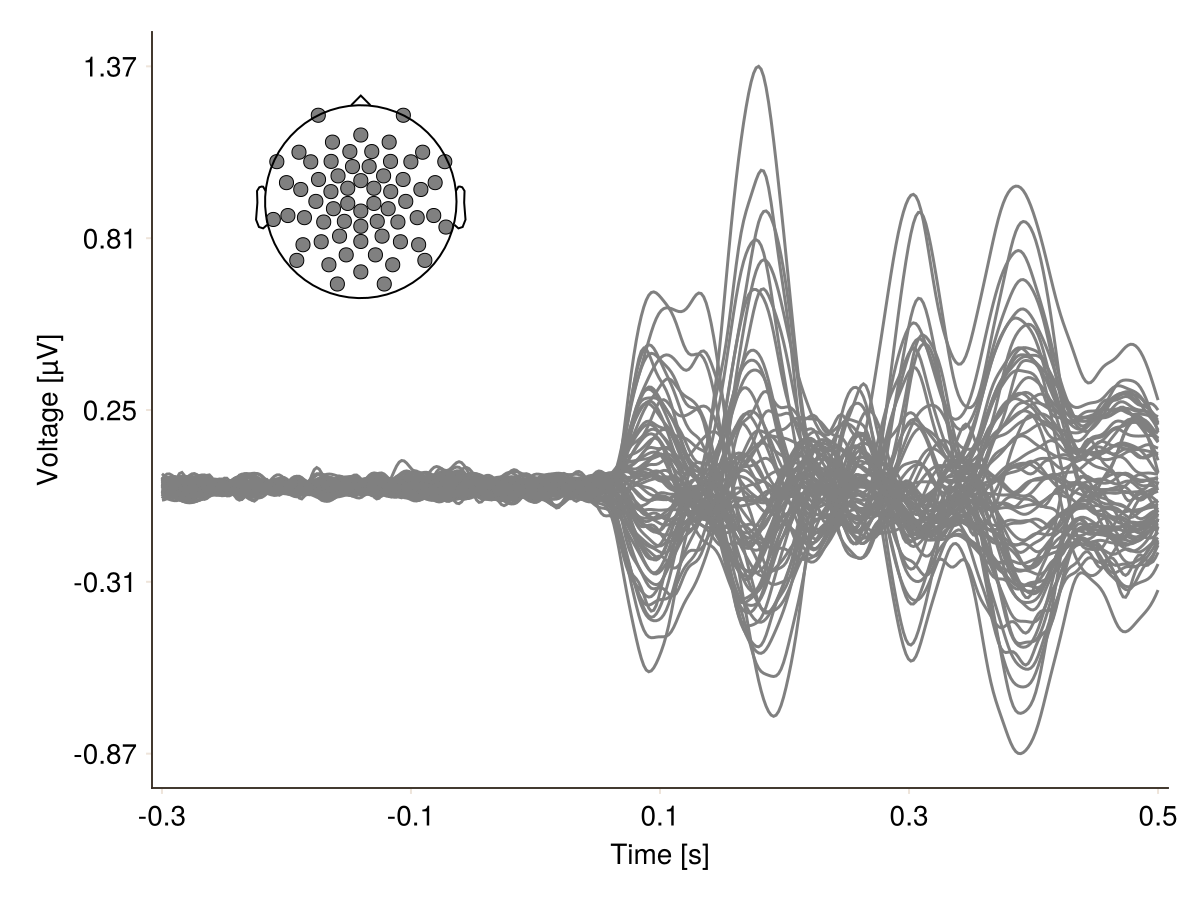

You can make all lines "gray", or any other arbitrary color. Also you can make it a function of electrode position.

plot_butterfly(
    results;
    positions = positions,
    topopositions_to_color = x -> Colors.RGB(0.5),
)

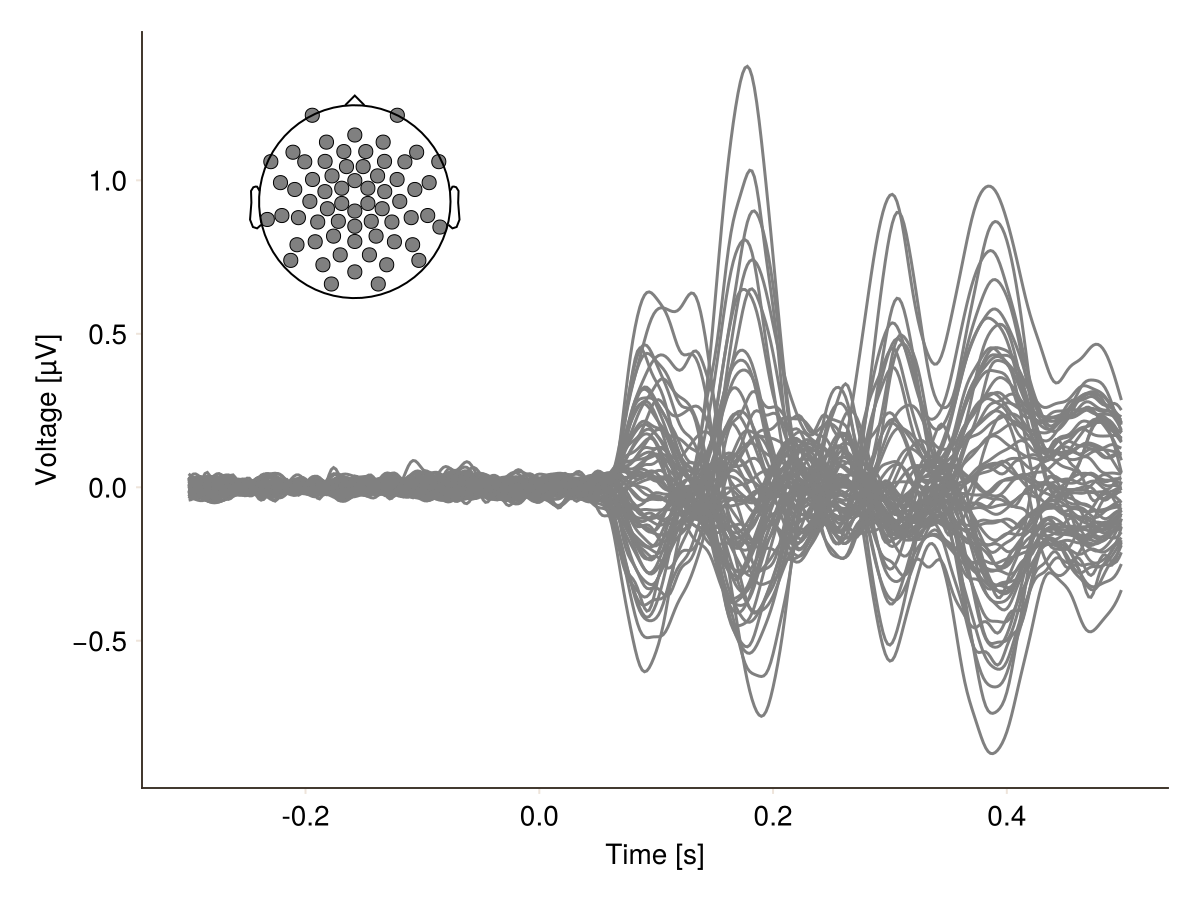

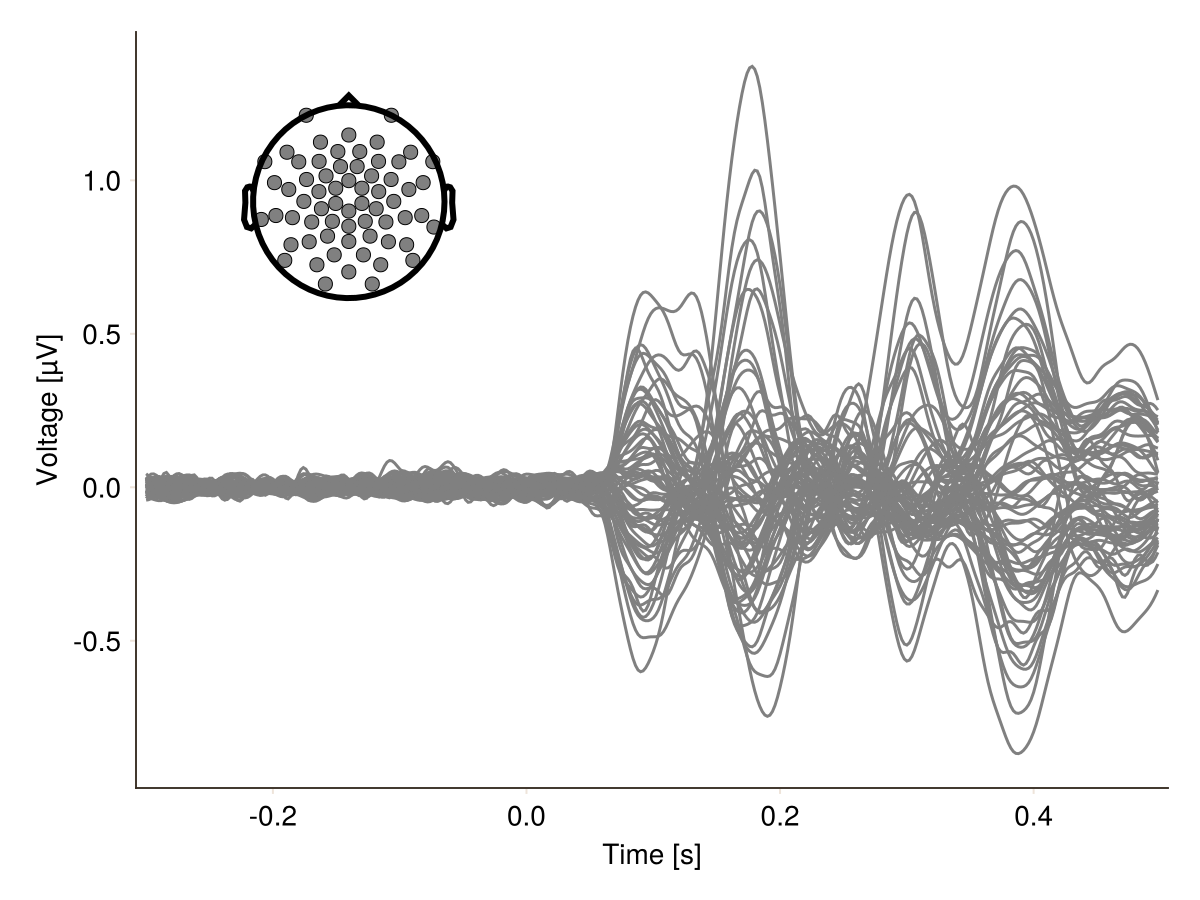

Example block output

Transparency

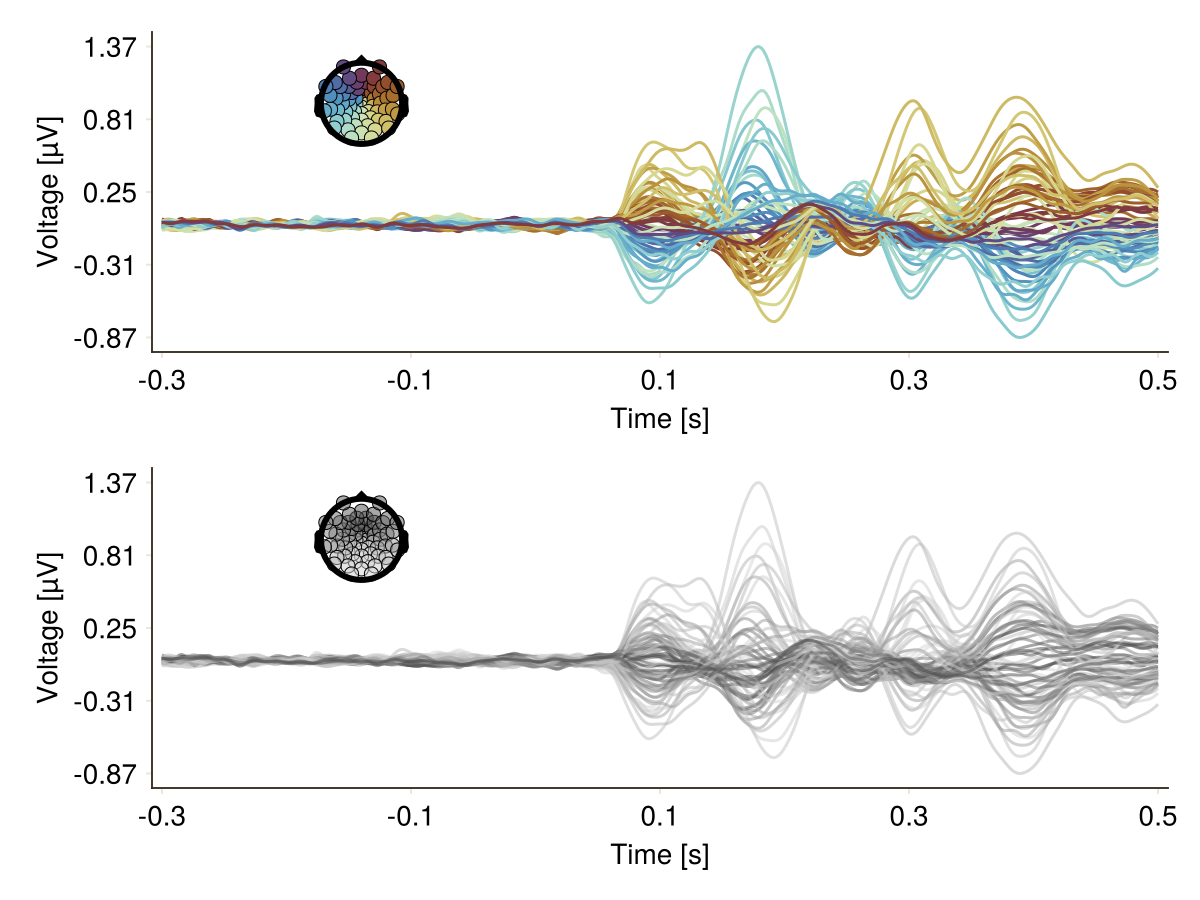

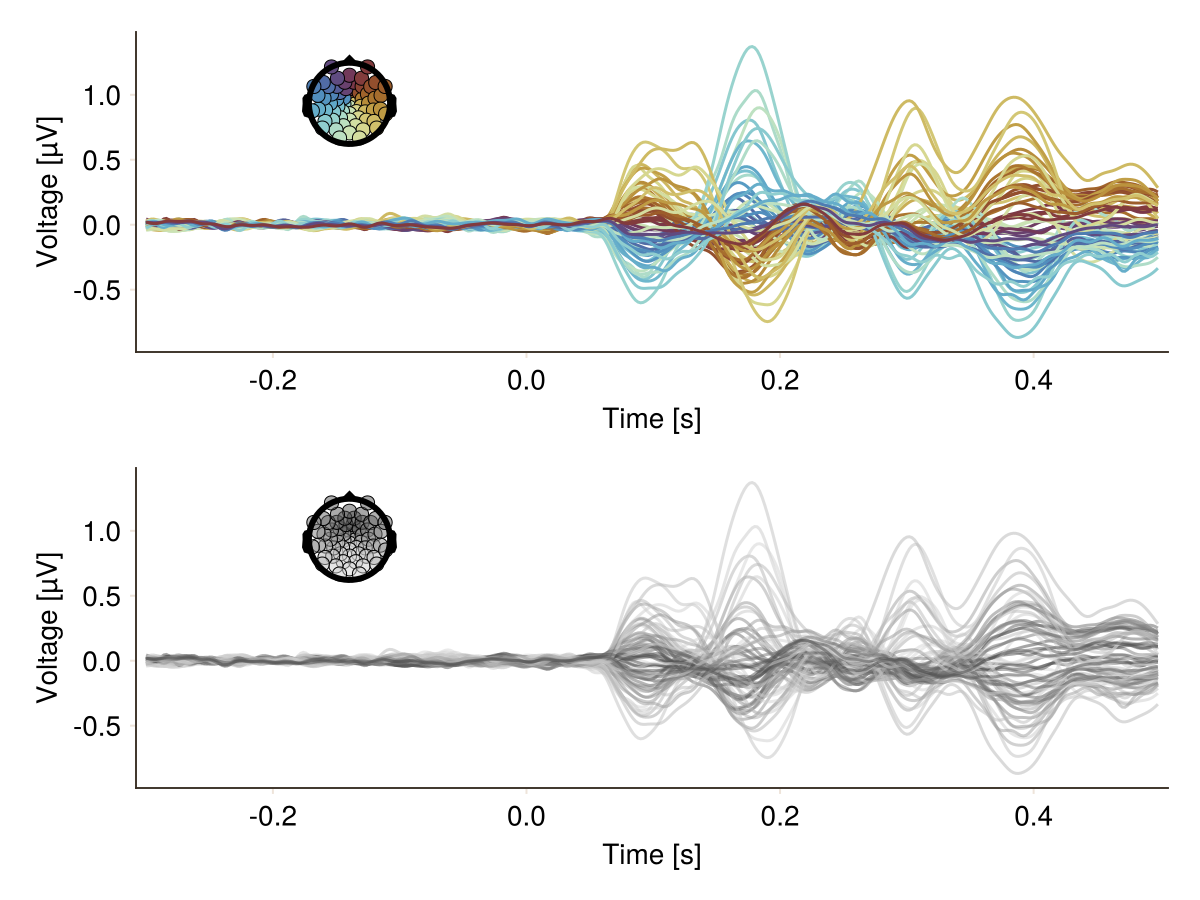

Unlike RGB, RGBA has a fourth channel, alpha, which is responsible for transparency. Here are two examples of how to manipulate it.

f = Figure()
plot_butterfly!(
    f[1, 1],
    results;
    positions = positions,
    topopositions_to_color = x -> (RGBA(UnfoldMakie.pos_to_color_RomaO(x), 1)),
)

plot_butterfly!(
    f[2, 1],
    results;
    positions = positions,
    topopositions_to_color = x -> (GrayA(UnfoldMakie.pos_to_color_RomaO(x), 0.5)),
)
f

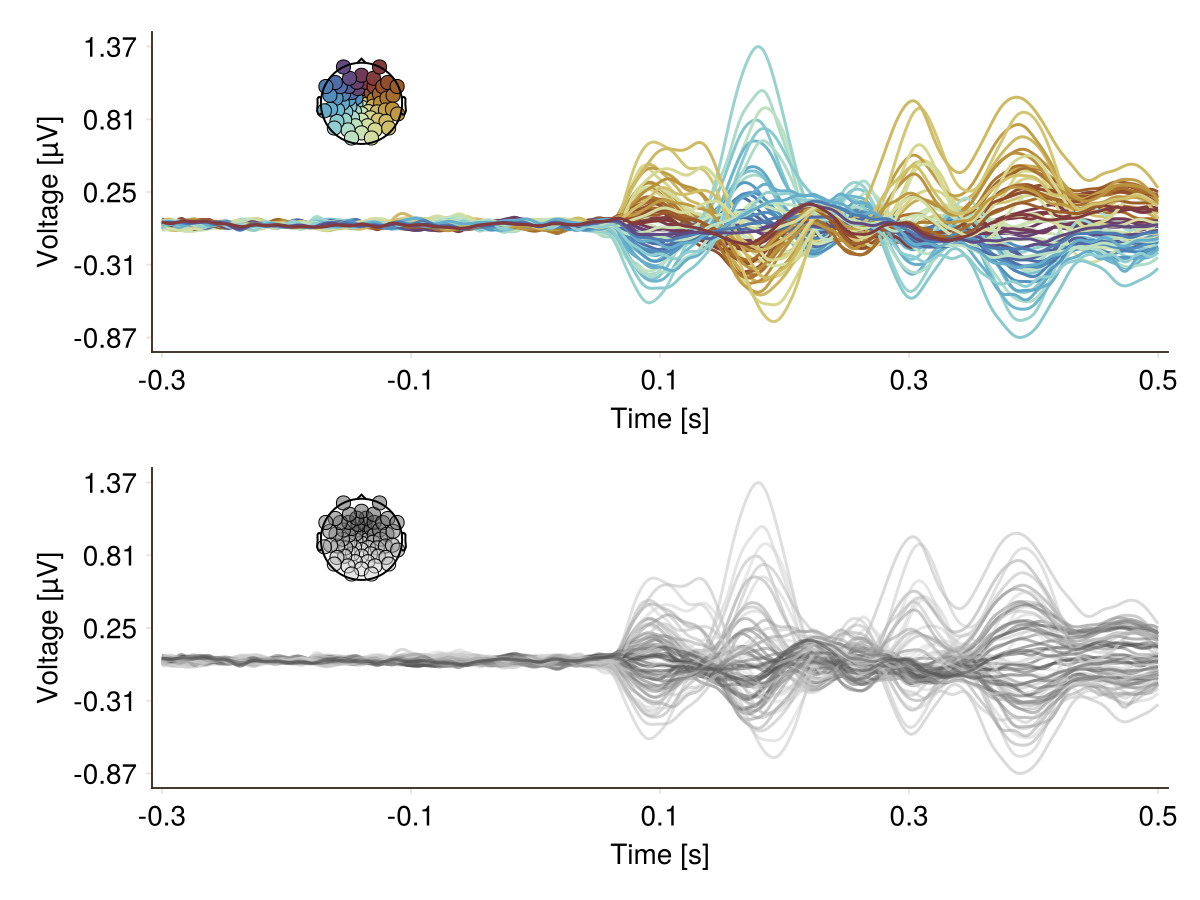

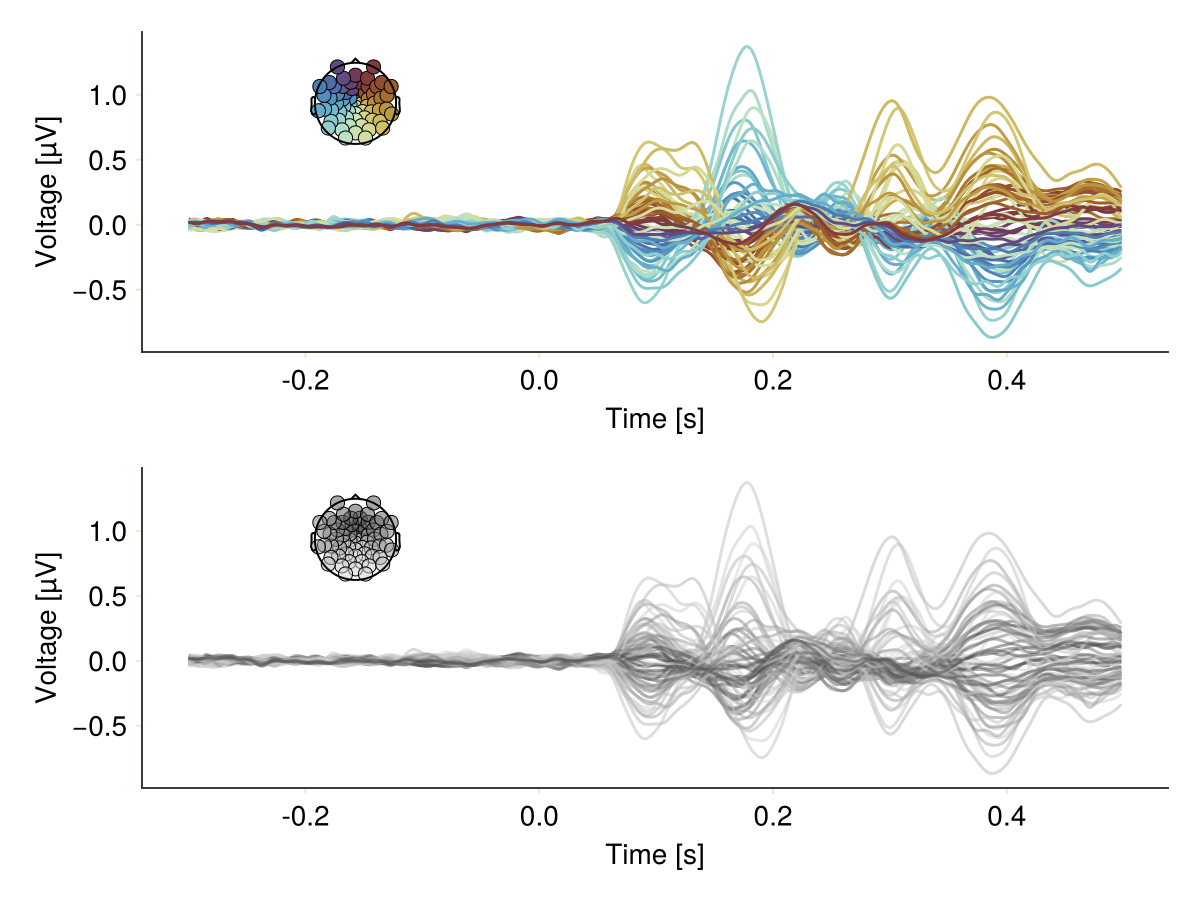

Example block output
