Adding labels to topoplot channels

using TopoPlots
using CairoMakie, MakieThemes
using UnfoldMakie, UnfoldSim

You need 3 vectors to add labels to topoplots: of channel labels, of channel positions, and of voltage estimates.

On the internet, you can find various standard montages with channel labels. For instance, see the labels and positions of standard10052D. You can find many others here. But make sure you also have the corresponding data for them!

In our case, we have predefined data with 227 channels:

df_toposeries, pos_toposeries, lab_toposeries = UnfoldMakie.example_data("bootstrap_toposeries"; noiselevel = 7);
df_trial1_t50 = filter(row -> row.trial == 1 && row.time == 50, df_toposeries)

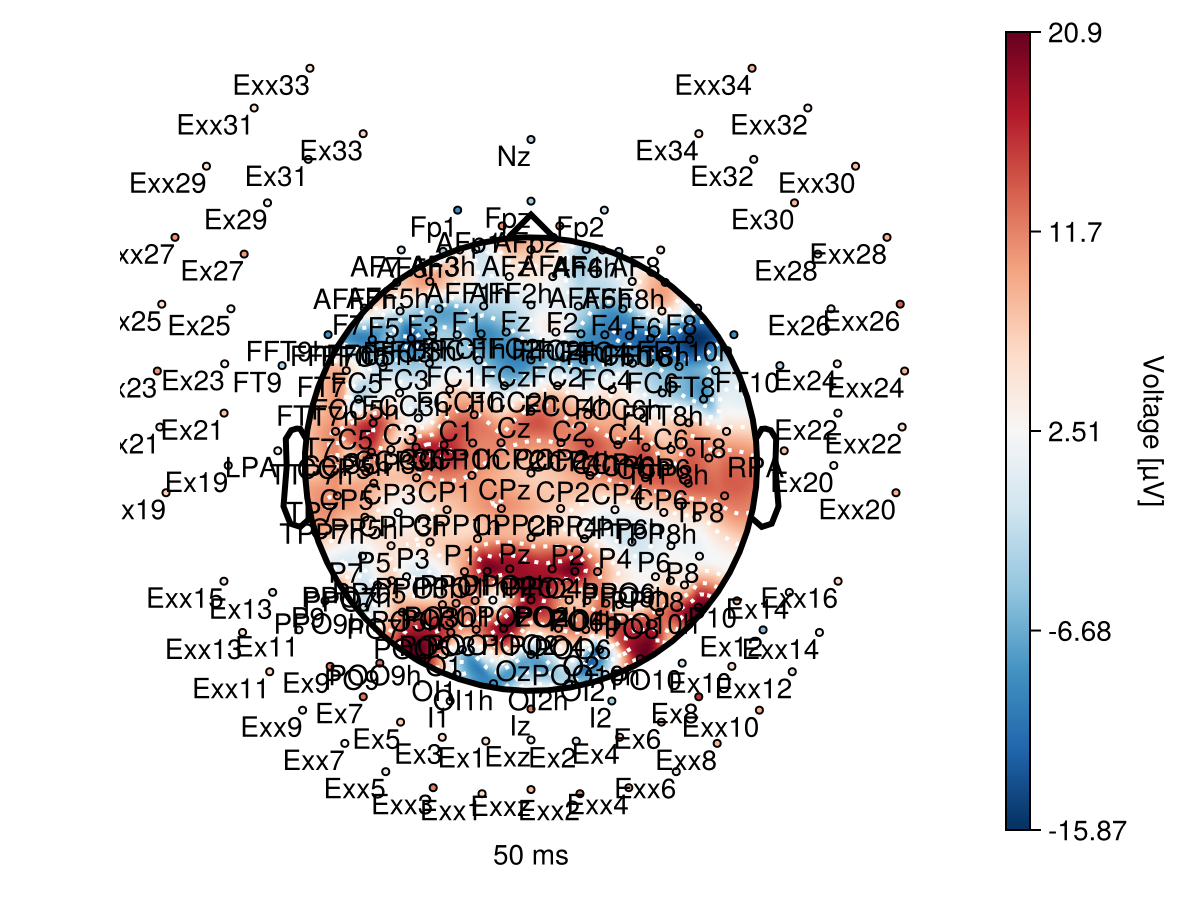

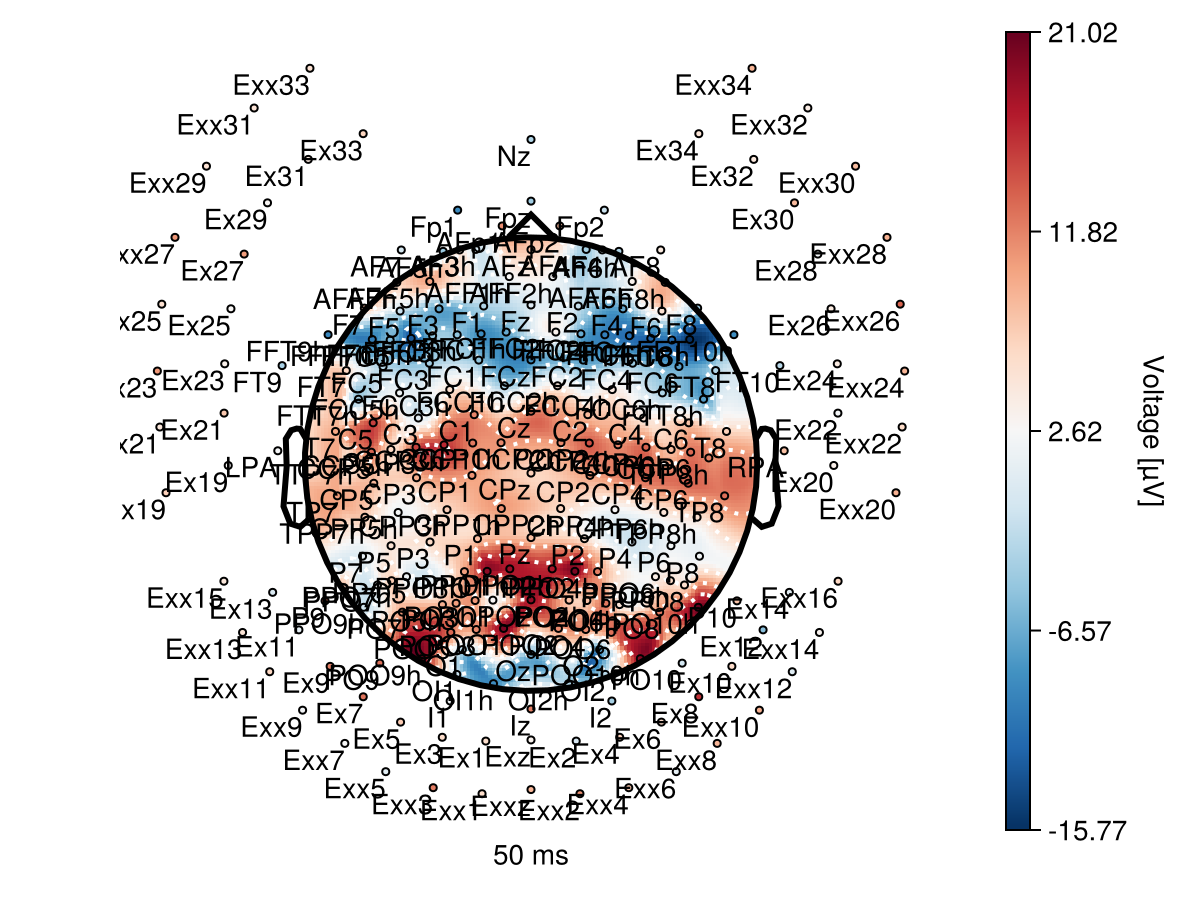

plot_topoplot(
    df_trial1_t50.estimate;
    labels = lab_toposeries,
    positions = pos_toposeries,
    visual = (; label_text = true, enlarge = 0.5, label_scatter = false),
    axis = (; xlabel = "50 ms", limits = ((0, 1), (0, 0.9))),
)

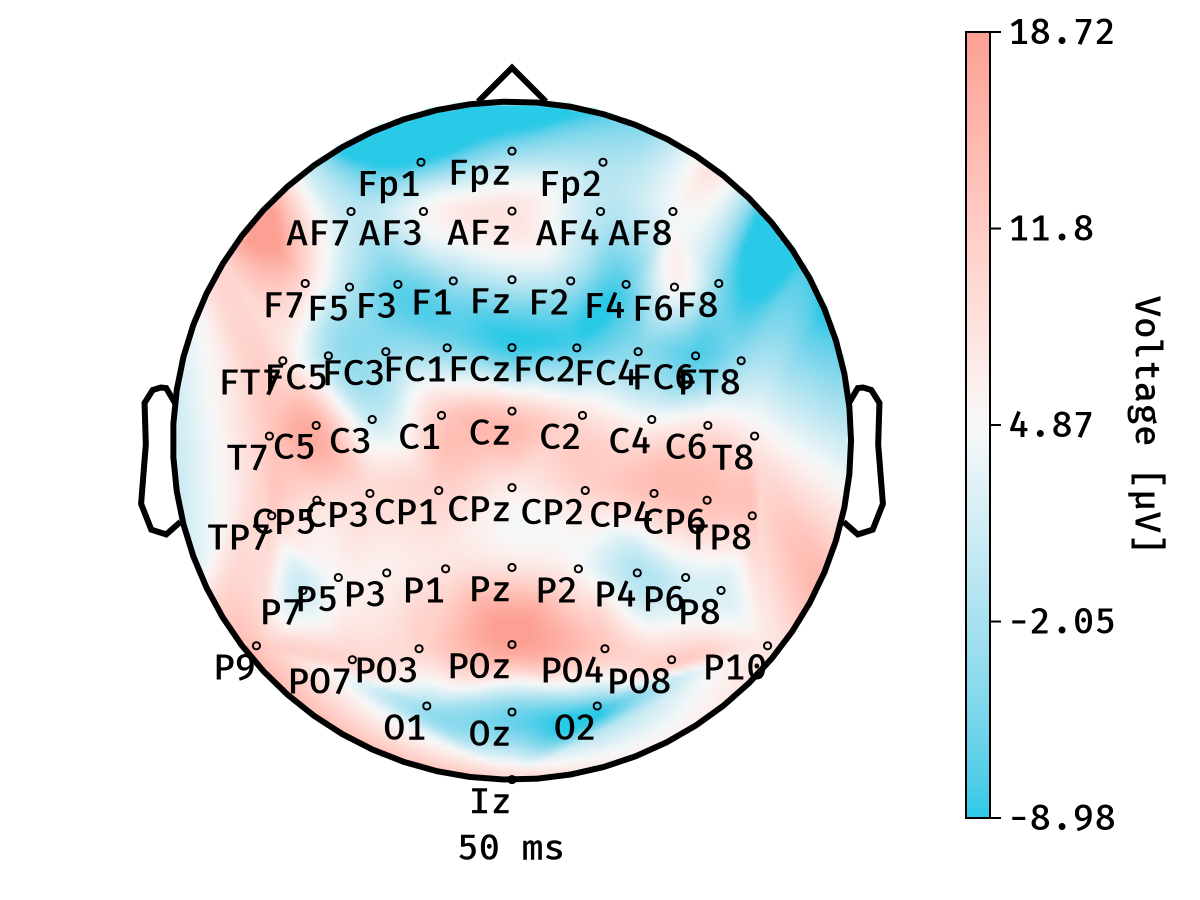

Imagine we want only 64 channels. In that case, we need to find which of the 227 channels correspond to the 64 channels in the montage. For that, let's use the 64 channel names from the BioSemi montage (also predefined):

l64, _ = example_montage("biosemi_64")

(["Fp1", "AF7", "AF3", "F1", "F3", "F5", "F7", "FT7", "FC5", "FC3"  …  "CP4", "CP2", "P2", "P4", "P6", "P8", "P10", "PO8", "PO4", "O2"], Point{2, Float32}[[-92.0, -72.0], [-92.0, -54.0], [-74.0, -65.0], [-50.0, -68.0], [-60.0, -51.0], [-75.0, -41.0], [-92.0, -36.0], [-92.0, -18.0], [-72.0, -21.0], [-50.0, -28.0]  …  [50.0, -28.0], [32.0, -45.0], [50.0, -68.0], [60.0, -51.0], [75.0, -41.0], [92.0, -36.0], [115.0, -36.0], [92.0, -54.0], [74.0, -65.0], [92.0, -72.0]])

Let's extract these 64 labels from the full 227-channel dataset provided by the HArtMuT head model:

hart = headmodel()
filter_idx = findall(l -> l in l64, hart.electrodes["label"])

labels_64 = hart.electrodes["label"][filter_idx]
estimates_64 = df_trial1_t50.estimate[filter_idx]
positions_64 =
    hart.electrodes["pos"] |>
    x -> to_positions(x') |>
    x -> [UnfoldMakie.Point2f(p[1] + 0.5, p[2] + 0.5) for p in x] |>
    x -> x[filter_idx];

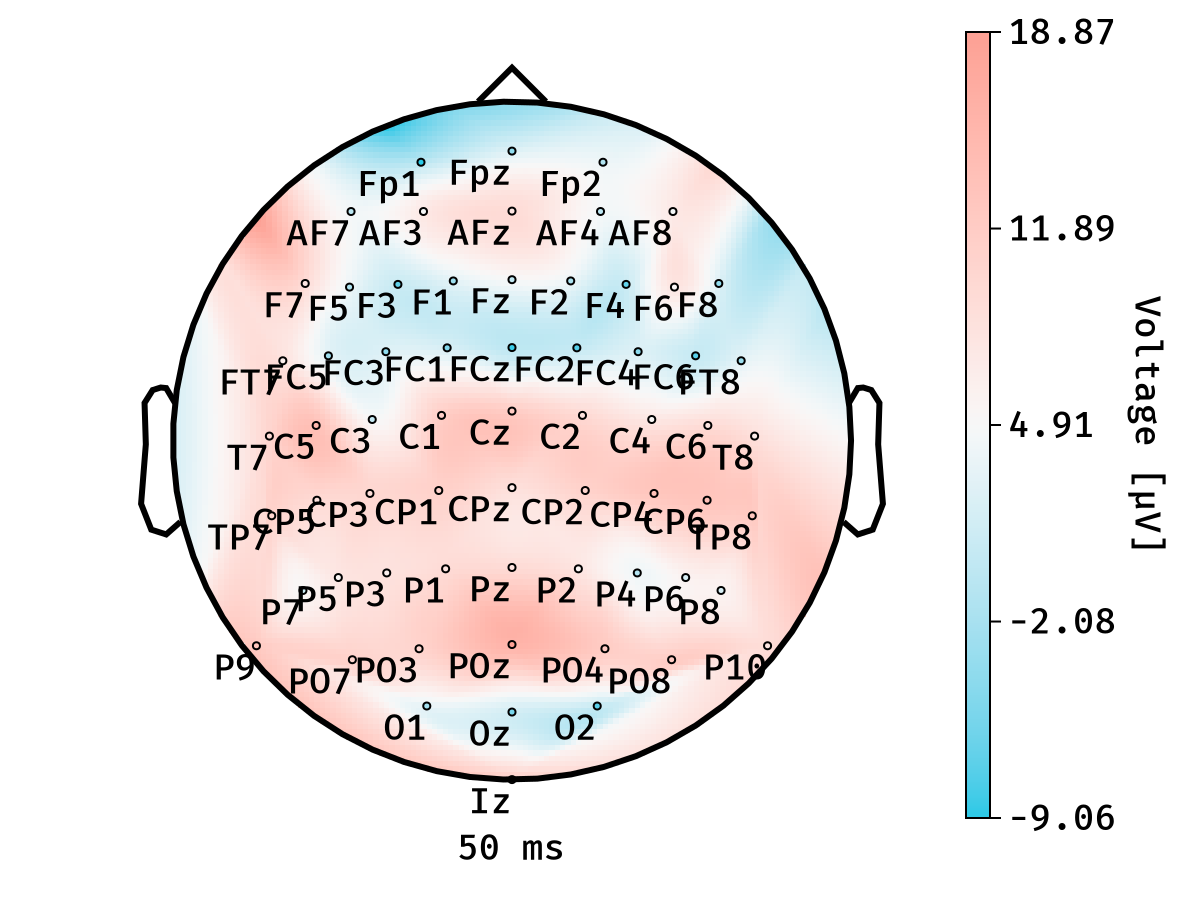

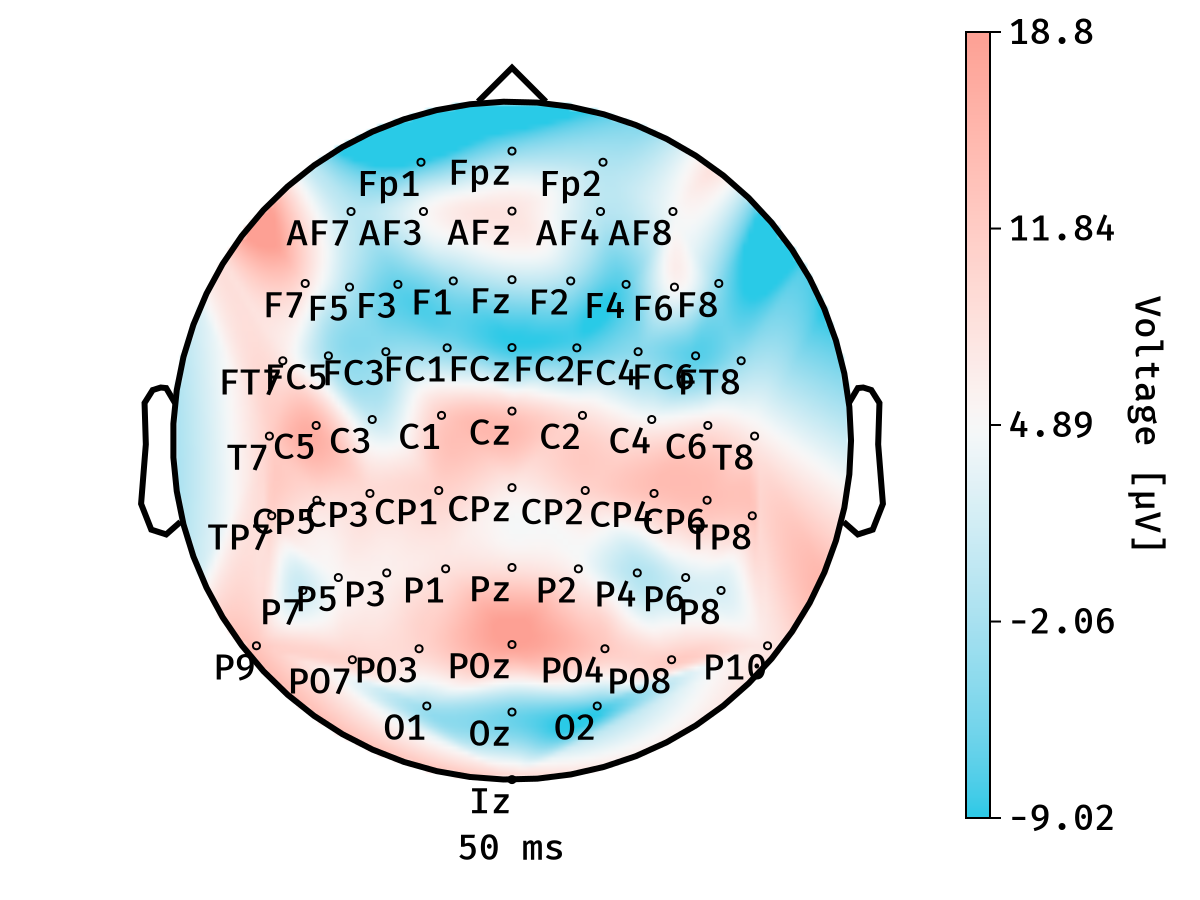

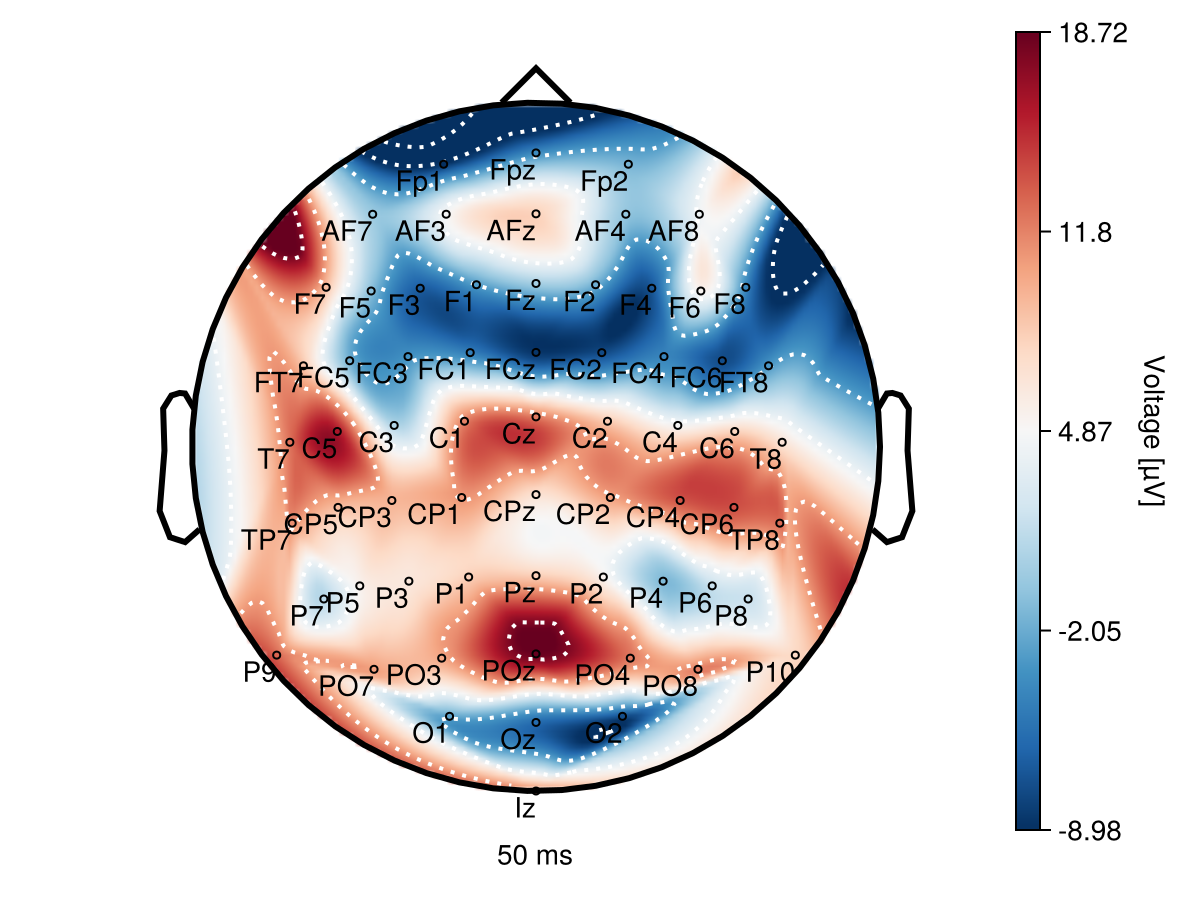

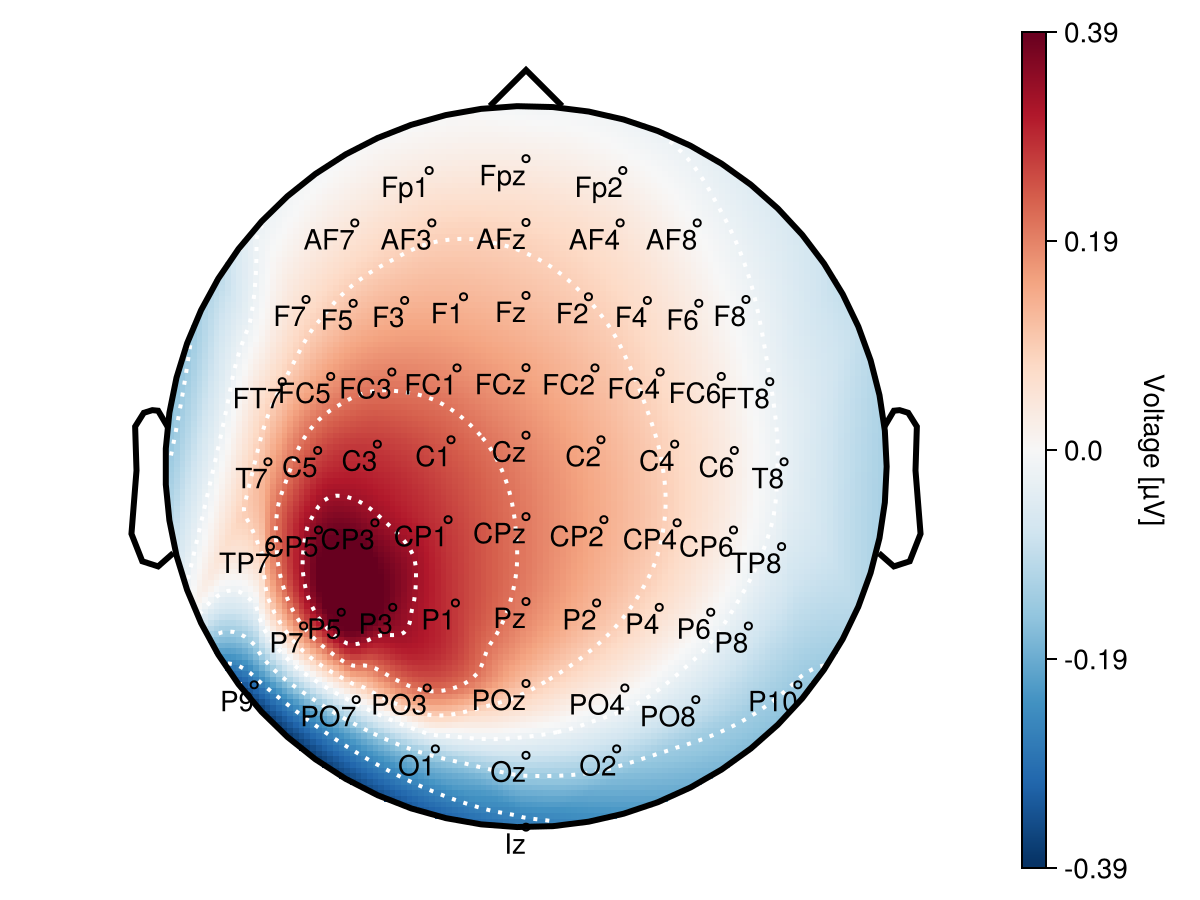

plot_topoplot(
    estimates_64;
    labels = labels_64,
    positions = positions_64,
    visual = (; label_text = true),
    axis = (; xlabel = "50 ms"),
)

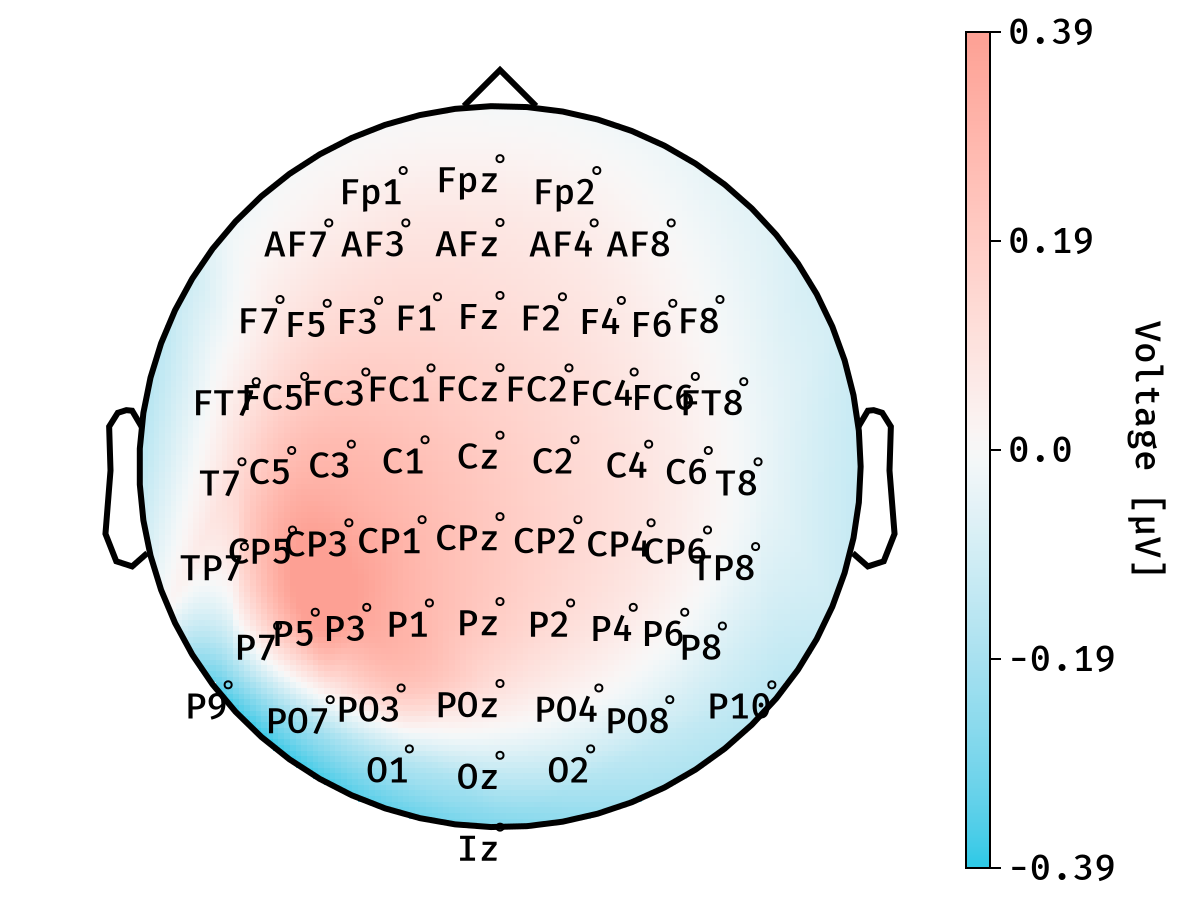

Let's add some customizations:

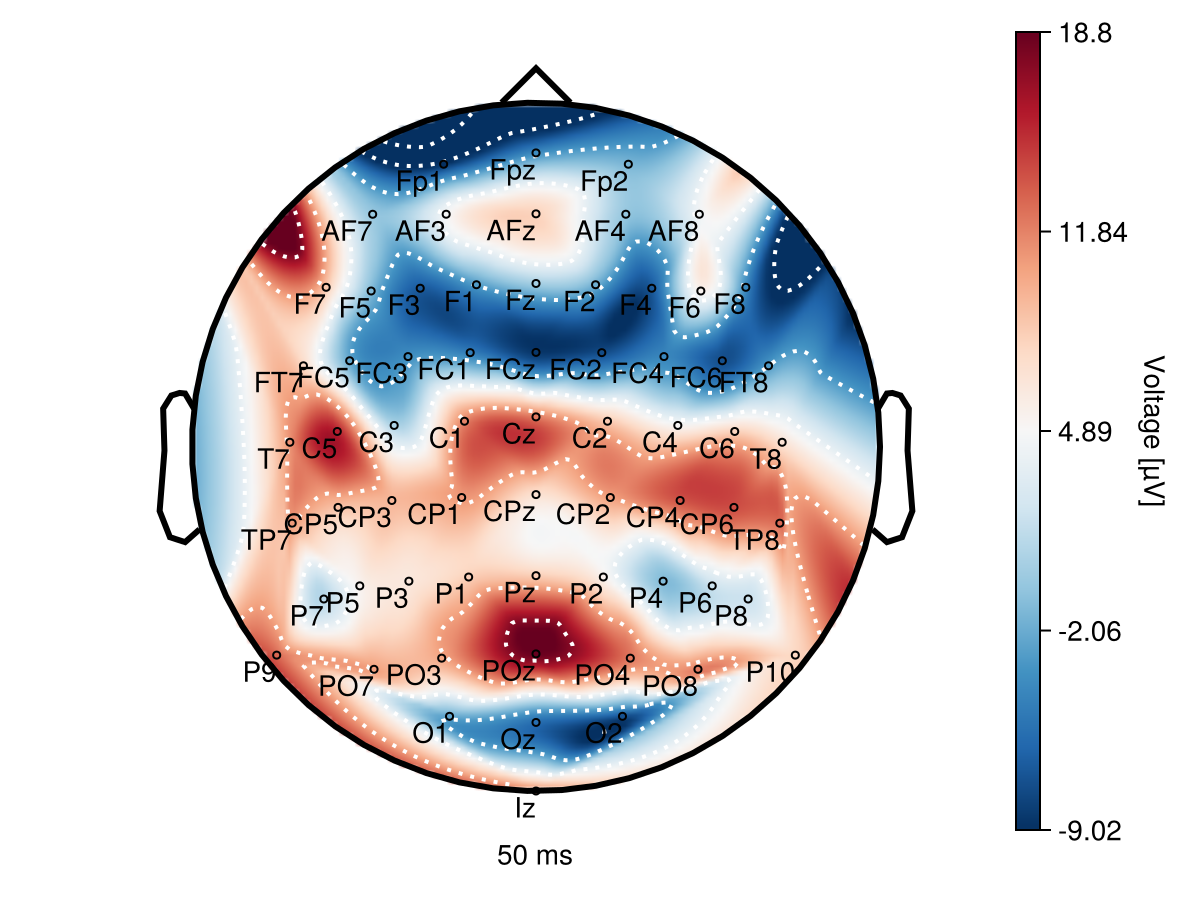

with_theme(Theme(; fontsize = 18, fonts = (; regular = "Ubuntu Mono"))) do
    plot_topoplot(
        estimates_64;
        labels = labels_64,
        positions = positions_64,
        visual = (; label_text = true, colormap = :diverging_tritanopic_cwr_75_98_c20_n256, contours = false),
        axis = (; xlabel = "50 ms"),
    )
end

This page was generated using Literate.jl.
