Start simulating timeseries

We offer some predefined signals, check them out!

For instance an P1/N170/P300 complex.

using UnfoldSim
using CairoMakie # plotting

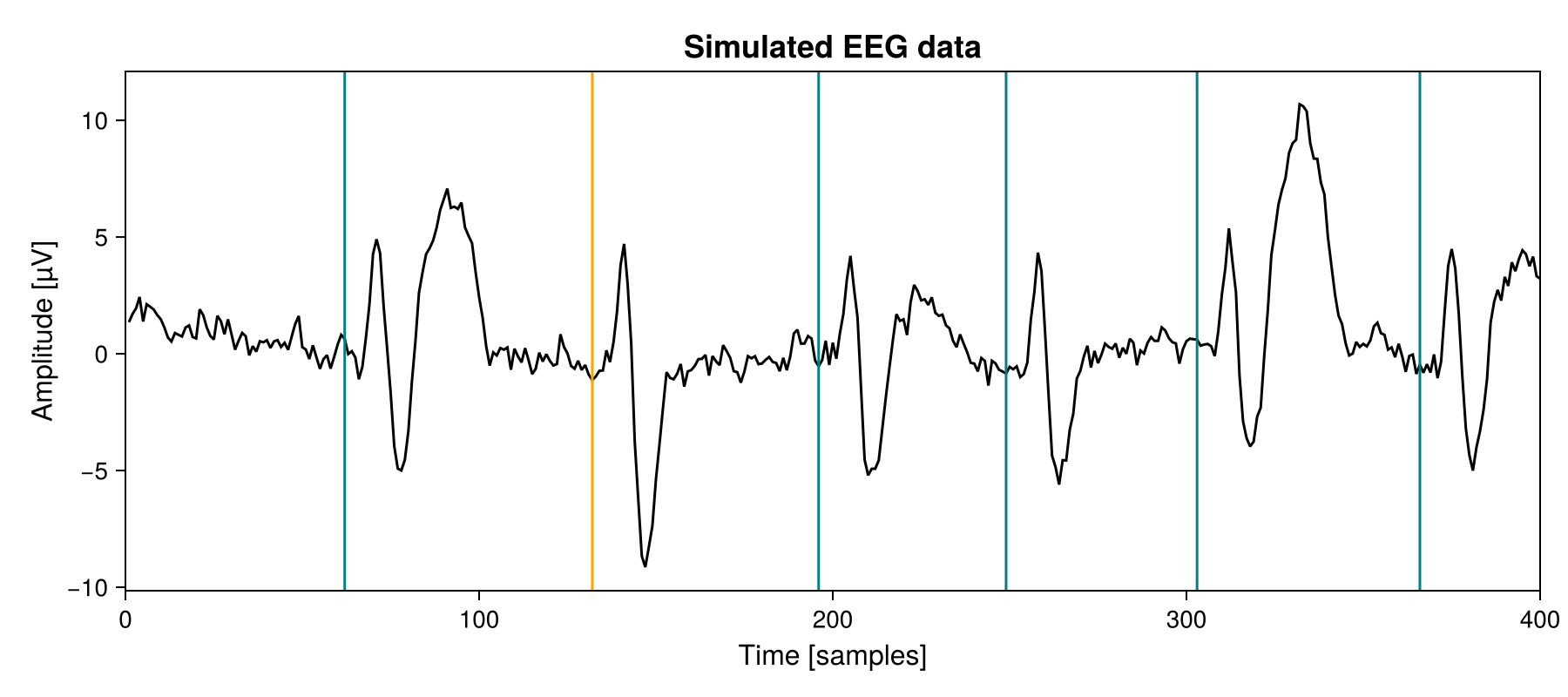

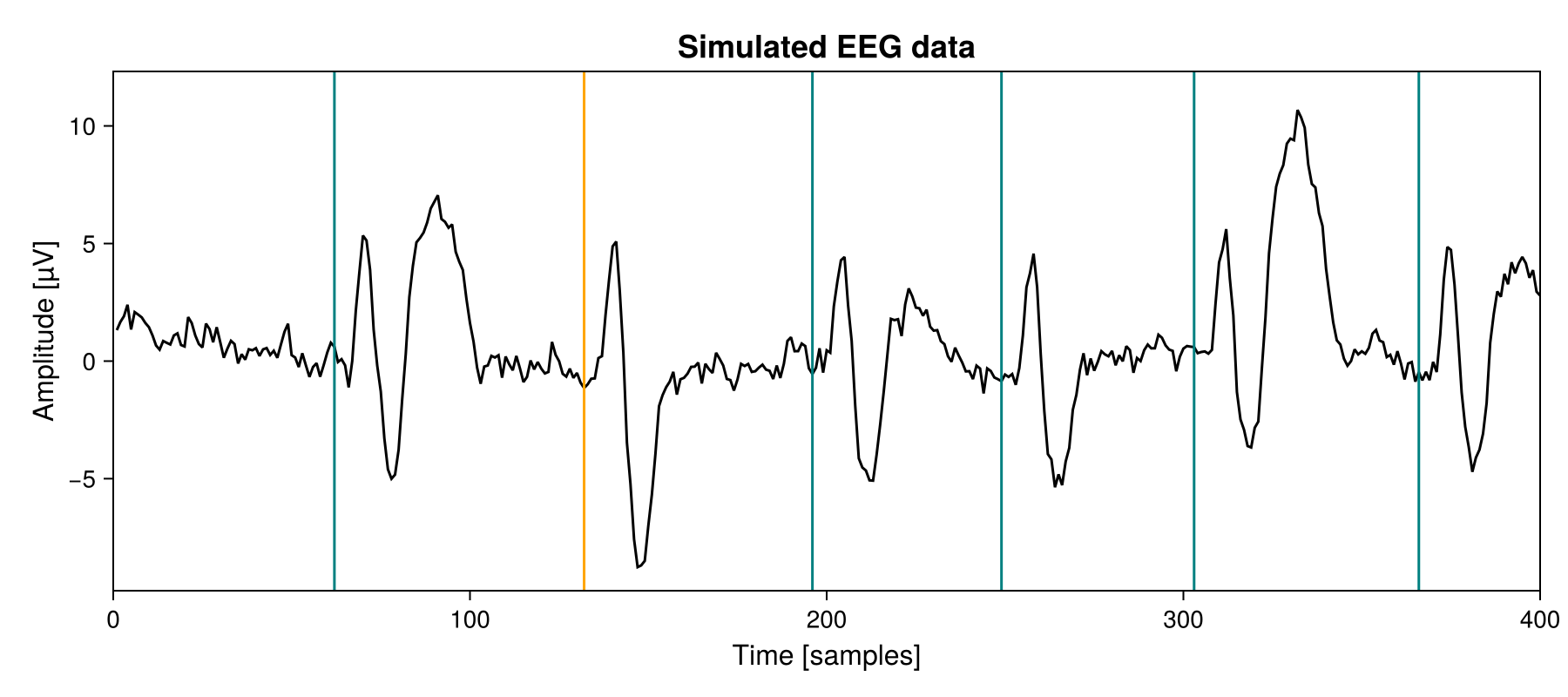

data, evts = UnfoldSim.predef_eeg(; n_repeats = 1, noiselevel = 0.8)

lines(data; color = "black")
vlines!(evts.latency; color = ["orange", "teal"][1 .+ (evts.condition.=="car")])

current_figure()

Or simulate epoched data directly

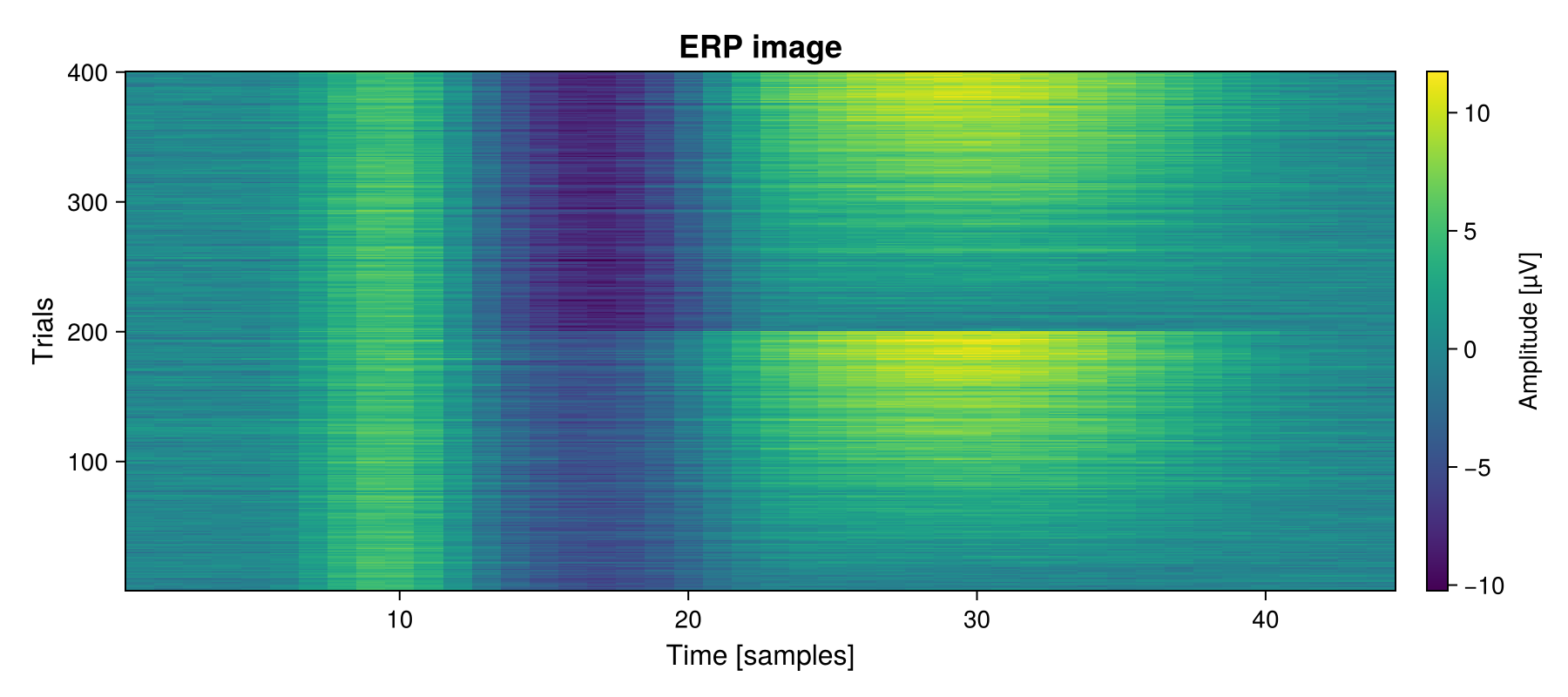

data, evts = UnfoldSim.predef_eeg(; n_repeats = 20, noiselevel = 0.8, return_epoched = true)
heatmap(data[:, sortperm(evts, [:condition, :continuous])])
