Define design-dependent component basis functions

Here you will learn how to specify a component basis that uses a function that depends on the design and returns per-event basis vectors, instead of the same basis vector for all events.

Setup

# Load required packages
using UnfoldSim
using Unfold
using Random
using DSP
using CairoMakie, UnfoldMakie

sfreq = 100;

Design

Let's generate a design with a categorical effect and a continuous duration effect

design = UnfoldSim.SingleSubjectDesign(;
    conditions = Dict(
        :category => ["dog", "cat"],
        :duration => Int.(round.(20 .+ rand(100) .* sfreq)),
    ),
);

Instead of defining a "boring" vector basis function e.g. [0,0,1,2,3,3,2,1,0,0,0], let's use a function - in our case, a Hanning window with the size depending on the experimental design's duration.

mybasisfun = design -> hanning.(generate_events(design).duration)
signal = LinearModelComponent(;
    basis = (mybasisfun, 100),
    formula = @formula(0 ~ 1 + category),
    β = [1, 0.5],
);

erp = UnfoldSim.simulate_component(MersenneTwister(1), signal, design);

After simulation, we are ready to plot it. We expect that the length of the simulated responses is scaled by the design's duration. To show it more effectively, we sort by duration.

##---
f = Figure()
df = UnfoldMakie.eeg_array_to_dataframe(erp')
df.duration = repeat(generate_events(design).duration, inner = size(erp, 1))
df.category = repeat(generate_events(design).category, inner = size(erp, 1))
plot_erp!(
    f[1, 1],
    df,
    mapping = (; group = :group => nonnumeric, col = :category), #  color = :duration, fails right nowUnfoldMakie#353
    layout = (; legend_position = :left),
    colorbar = (; label = "Duration"),
)
plot_erpimage!(
    f[2, 1],
    erp,
    sortvalues = generate_events(design).duration,
    layout = (; legend_position = :bottom),
)
f

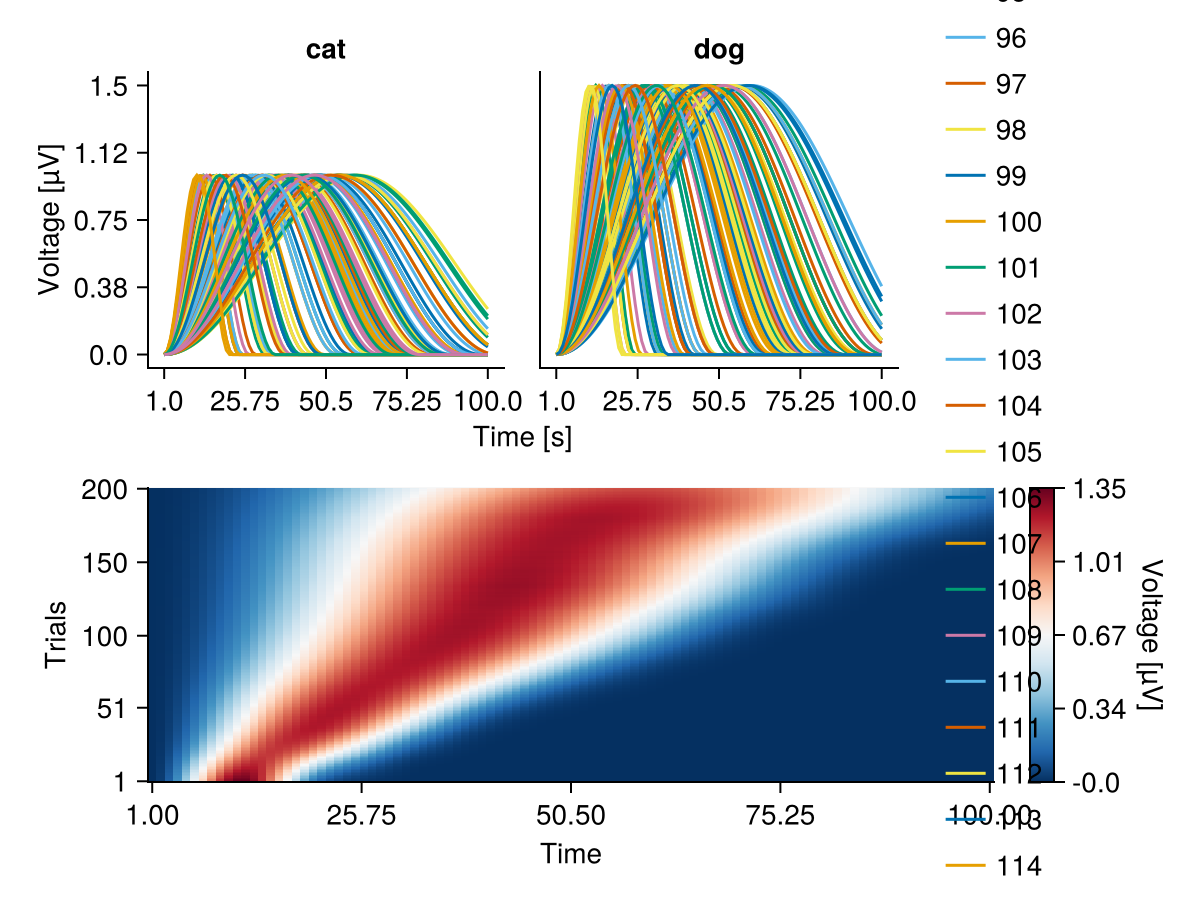

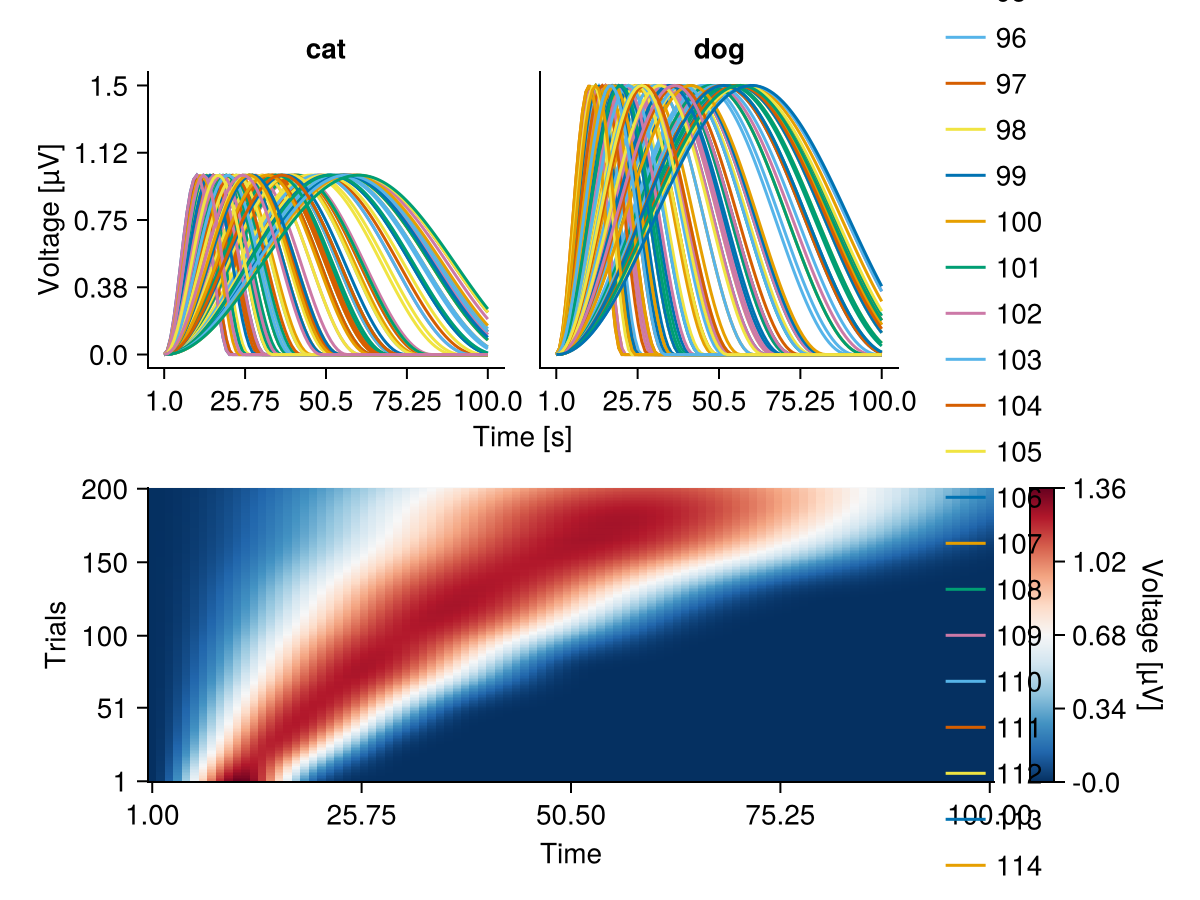

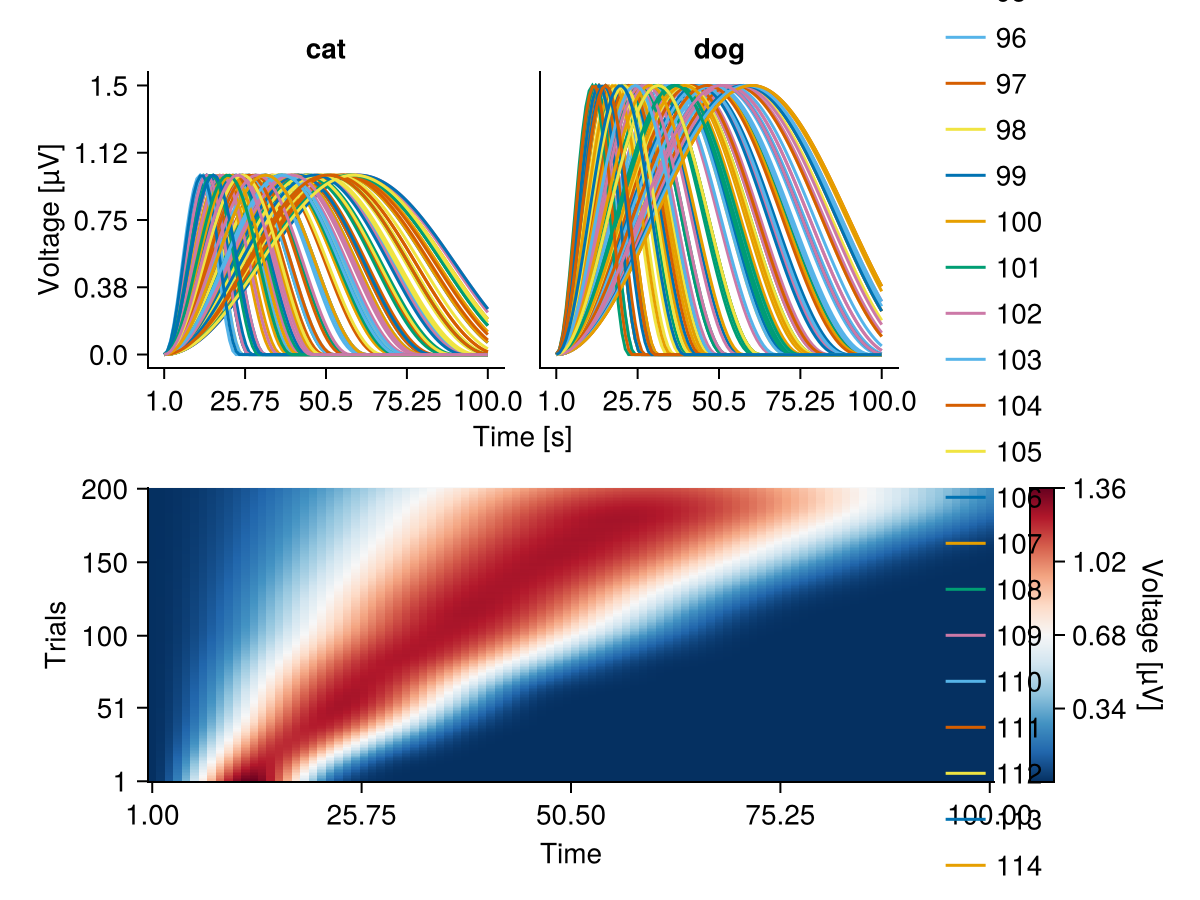

The scaling by the two condition effect levels and the modified event duration by the duration are clearly visible.

This page was generated using Literate.jl.
