Simulate ground truth marginal effects

Often when testing some algorithm, we want to compare our results to a known ground truth. In the case of marginal effects via the Unfold.effects/ Effects.jl interface, we can do this using an EffectsDesign. You can find more on what marginalized effects are here in the Unfold.jl documentation.

Setup

Click to expand

# Load required packages
using UnfoldSim
using Unfold
using CairoMakie
using UnfoldMakie
using Random

Simulation

First let's set up a SingleSubject simulation

Note

An EffectsDesign for a MultiSubjectDesign is not implemented yet.

design =
    SingleSubjectDesign(;
        conditions = Dict(
            :condition => ["bike", "face"],
            :continuous => range(0, 5, length = 10),
        ),
    ) |> x -> RepeatDesign(x, 5);

n170 has a condition effect, faces are more negative than bikes

n1 = LinearModelComponent(;
    basis = n170(),
    formula = @formula(0 ~ 1 + condition),
    β = [5, 3],
);

p300 has a continuous effect, higher continuous values will result in larger P300's. We include both a linear and a quadratic effect of the continuous variable.

p3 = LinearModelComponent(;
    basis = p300(),
    formula = @formula(0 ~ 1 + continuous + continuous^2),
    β = [5, 1, 0.2],
);

components = [n1, p3]
data, evts = simulate(
    MersenneTwister(1),
    design,
    components,
    UniformOnset(; width = 0, offset = 1000),
    PinkNoise(),
);

Simulate marginal effects directly

To simulate marginal effects we first have to specify an effects dictionary and subsequently hand this dict plus the original design to EffectsDesign()

effects_dict = Dict(:condition => ["bike", "face"])

effects_design = EffectsDesign(design, effects_dict)

EffectsDesign(RepeatDesign{SingleSubjectDesign}
  design: SingleSubjectDesign
  repeat: Int64 5
, Dict(:condition => ["bike", "face"]))

Note

We only specified the condition levels here, by default every unspecified variable will be set to a "typical" (i.e. the mean) value.

And finally we can simulate our ground truth marginal effects

gt_data, gt_events = simulate(
    MersenneTwister(1),
    effects_design,
    components,
    NoOnset(),
    NoNoise(),
    return_epoched = true,
);
@show gt_events

2×2 DataFrame

Row	condition	continuous
	String	Float64
1	bike	2.5
2	face	2.5

Additionally, we can get the simulated effects into a tidy dataframe using Unfold's result_to_table. Note that the data has to be reshaped into a channel X times X predictor form. (In our one channel example size(gt_data) = (45,2), missing the channel dimension.)

g = reshape(gt_data, 1, size(gt_data)...)
times = range(1, size(gt_data, 1));
gt_effects = Unfold.result_to_table([g], [gt_events], [times], ["effects"])
first(gt_effects, 5)

5×6 DataFrame

Row	yhat	channel	condition	continuous	time	eventname
	Float64	Int64	String	Float64	Int64	String
1	0.0	1	bike	2.5	1	effects
2	0.0	1	bike	2.5	2	effects
3	0.0	1	bike	2.5	3	effects
4	0.0	1	bike	2.5	4	effects
5	0.0	1	bike	2.5	5	effects

Compare with Unfold.jl results

m = fit(
    UnfoldModel,
    [
        Any => (
            @formula(0 ~ 1 + condition + spl(continuous, 4)),
            firbasis(τ = [-0.1, 1], sfreq = 100, name = "basis"),
        ),
    ],
    evts,
    data,
);

ef = effects(effects_dict, m);

Note

The ground truth signal is shorter because the ground truth typically returns values between [0 maxlength(components)], whereas in our Unfold model we included a baseline period of 0.1s. If you want to actually compare results with the ground truth, you could either us UnfoldSim.pad_array() or set the Unfold modelling window to τ=[0,1].

gt_effects.type .= "UnfoldSim effects"
ef.type .= "Unfold effects"

gt_effects.time = gt_effects.time ./ 100 .- 1 / 100
ef.continuous .= 2.5 # needed to be able to easily merge the two dataframes
comb = vcat(gt_effects, ef)

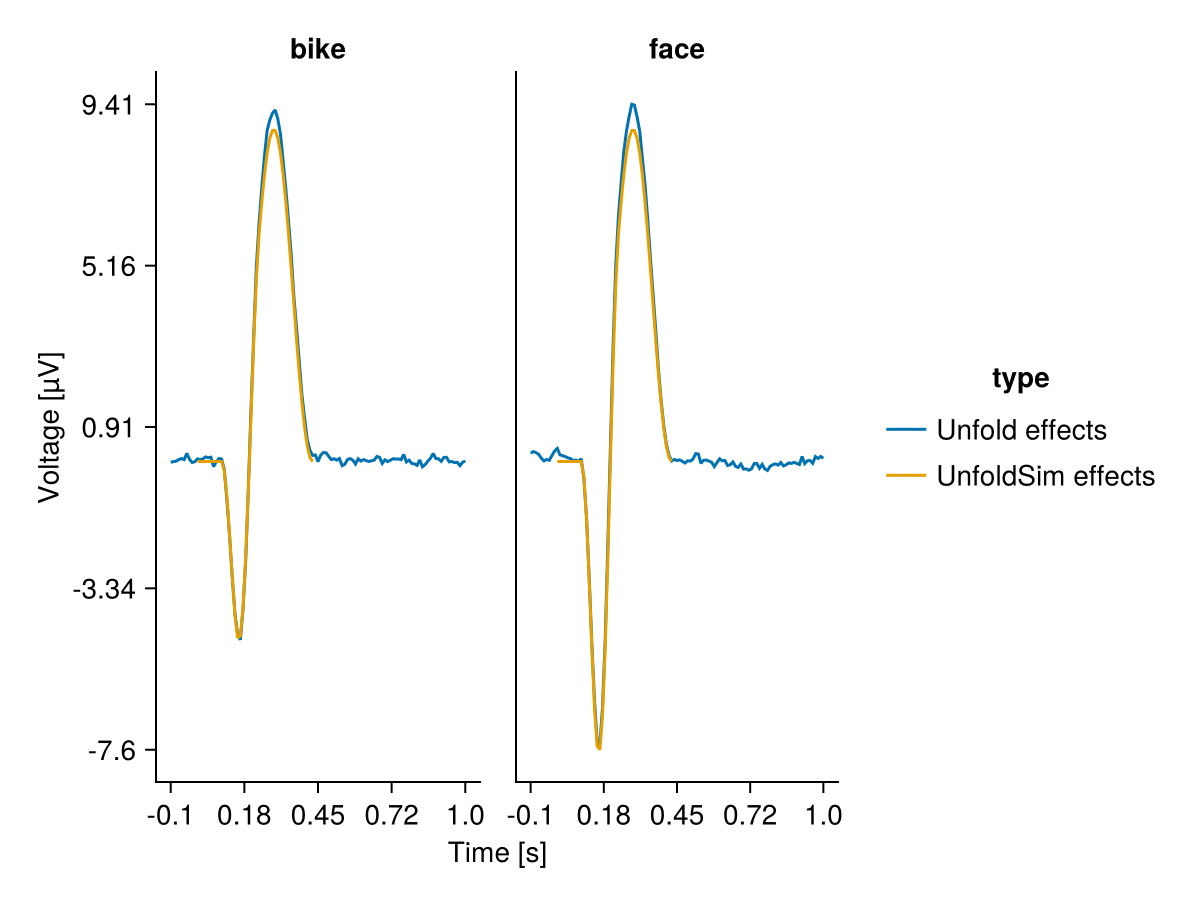

plot_erp(comb; mapping = (; color = :type, col = :condition))

The simulated ground truth marginal effects, and the fitted marginal effects look similar as expected, but the fitted has some additional noise because of finite data (also as expected).
