Use existing experimental designs & onsets in the simulation

Let's say you want to use the events data frame (containing the levels of the experimental variables and the event onsets (latencies)) from a previous study in your simulation.

Setup

# Load required packages
using UnfoldSim
using DataFrames
using Random
using CairoMakie # for plotting

From a previous study, we (somehow, e.g. by using pyMNE.jl) imported an event data frame like this:

my_events = DataFrame(:condition => [:A, :B, :B, :A, :A], :latency => [7, 13, 22, 35, 41])

To use exactly these values, we can generate a new AbstractDesign, which will always return this event dataframe

struct MyManualDesign <: AbstractDesign
    my_events::Any
end
UnfoldSim.generate_events(rng, d::MyManualDesign) = deepcopy(d.my_events) ## generate function which is called internally in UnfoldSim
UnfoldSim.size(d::MyManualDesign) = size(d.my_events, 1); ## necessary function to tell what the dimensionality of the experimental design is

Next we generate a MyManualDesign

mydesign = MyManualDesign(my_events);

We could already use this "solo" and simulate some data, for example:

signal = LinearModelComponent(;
    basis = [1, 1, 0.5, 0, 0],
    formula = @formula(0 ~ 1 + condition),
    β = [1, 0.5],
);

data, events =
    simulate(MersenneTwister(1), mydesign, signal, UniformOnset(; width = 10, offset = 5))

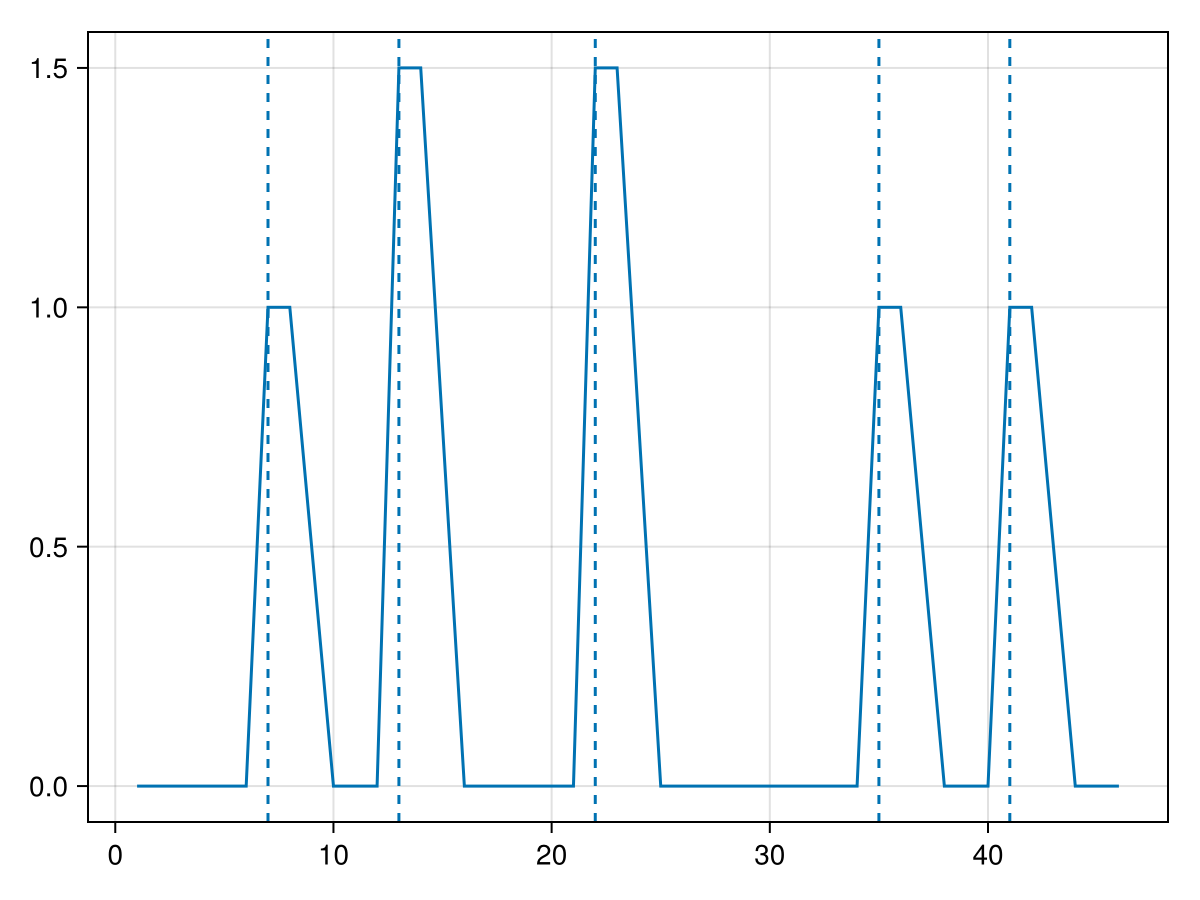

lines(data) # plotting
vlines!(my_events.latency; linestyle = :dash)
current_figure()

Looks good, but the events don't match our custom onsets yet.

Custom Timings

Finally, we want to use our custom timings as well. For this we define a new AbstractOnset. Again, it simply returns our manually provided latencies

struct MyManualOnset <: AbstractOnset end
UnfoldSim.simulate_onsets(rng, onset::MyManualOnset, simulation::Simulation) =
    generate_events(rng, simulation.design).latency

And that's it

data, events = simulate(MersenneTwister(1), mydesign, signal, MyManualOnset())
lines(data) # plotting
vlines!(my_events.latency, linestyle = :dash)
current_figure()

now everything matches, lovely!
