Overview: Basis function (component) types

There are several basis types directly implemented. They can be easily used for the components.

Note

You can use any arbitrary shape defined by yourself! We often make use of hanning(50) from the DSP.jl package.

Setup

Click to expand
# Load required packages
using UnfoldSim
using CairoMakie
using DSP
using StableRNGs

EEG

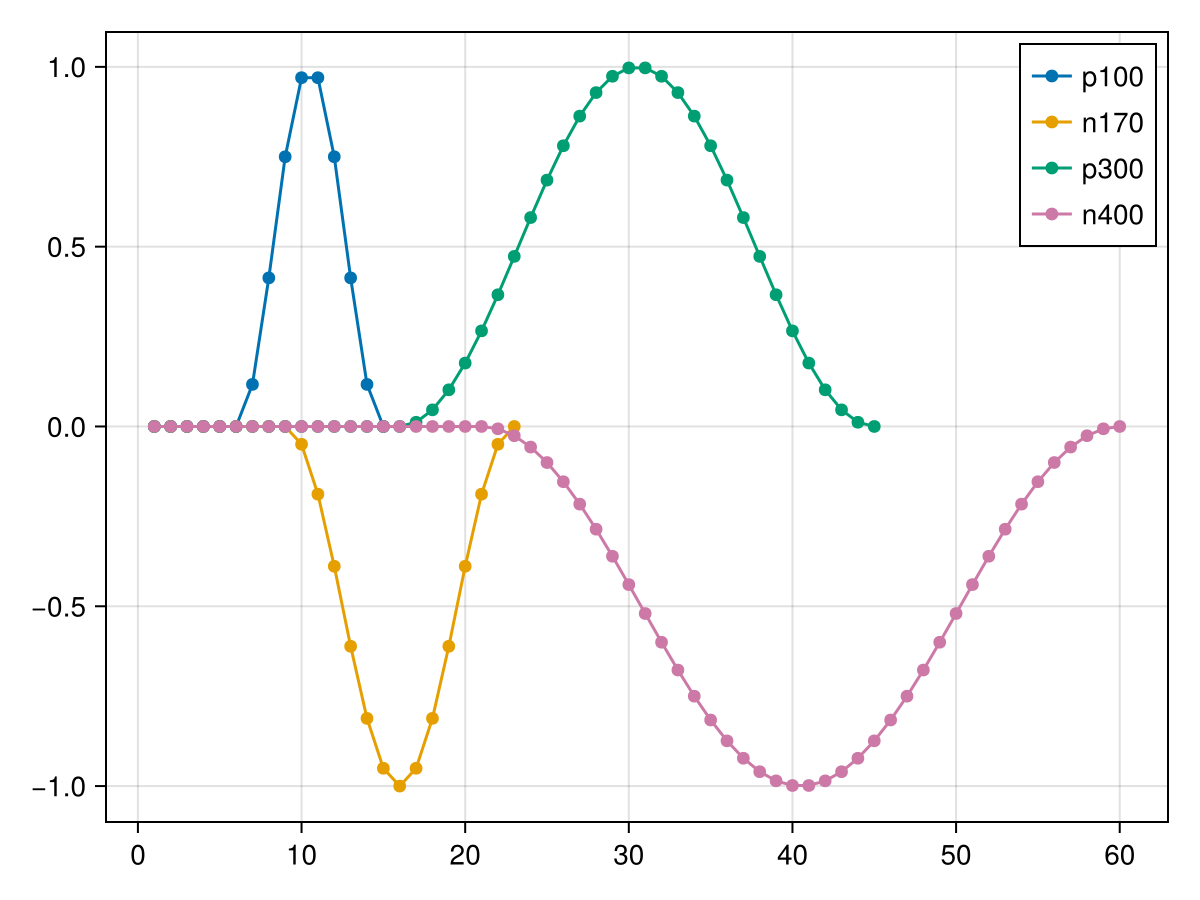

By default, the EEG bases assume a sampling rate of 100, which can easily be changed by e.g. p100(; sfreq=300)

f = Figure()
ax = f[1, 1] = Axis(f)
for b in [p100, n170, p300, n400]
    lines!(ax, b(), label = string(b))
    scatter!(ax, b(), label = string(b))
end
axislegend(ax, merge = true)
f
Example block output

fMRI

default hrf TR is 1. Get to know all your favourite shapes!

##--
f = Figure()
plotConfig = (
    :peak => 1:3:10,
    :post_undershoot => 10:5:30,
    :amplitude => 2:5,
    :shift => 0:3:10,
    :peak_width => 0.1:0.5:1.5,
    :post_undershoot_width => 0.1:0.5:1.5,
)

for (ix, pl) in enumerate(plotConfig)
    col = (ix - 1) % 3 + 1
    row = Int(ceil(ix / 3))

    ax = f[row, col] = Axis(f)
    cfg = collect(pl)
    for k in cfg[2]
        lines!(ax, UnfoldSim.hrf(; TR = 0.1, (cfg[1] => k,)...), label = string(k))
    end

    axislegend(string(cfg[1]); merge = true)
end
f
Example block output

Pupil

We use the simplified PuRF from Hoeks & Levelt, 1993. Note that https://www.science.org/doi/10.1126/sciadv.abi9979 show some evidence in their supplementary material, that the convolution model is not fully applicable.

f = Figure()
plotConfig = (:n => 5:3:15, :tmax => 0.5:0.2:1.1)

for (ix, pl) in enumerate(plotConfig)
    ax = f[1, ix] = Axis(f)
    cfg = collect(pl)
    for k in cfg[2]
        lines!(ax, UnfoldSim.PuRF(; (cfg[1] => k,)...), label = string(k))
    end

    axislegend(string(cfg[1]); merge = true)
end
f
Example block output

This page was generated using Literate.jl.
