Overview: Onset types

The onset types determine the distances between event onsets in the continuous EEG signal. The distances are sampled from a certain probability distribution. Currently, there are two types of onset distributions implemented: UniformOnset and LogNormalOnset.

Setup

Click to expand

# Load required packages
using UnfoldSim
using CairoMakie
using Random

# Define a simple design and repeat it 10000.
# This will result in 20000 events i.e. event onsets.
design =
    SingleSubjectDesign(conditions = Dict(:cond => ["A", "B"])) |>
    x -> RepeatDesign(x, 10000);

UniformOnset

The UniformOnset is based on a uniform distribution and has two parameters: width and offset.

Example:

onset_uniform = UniformOnset(; width = 50, offset = 0);

The width parameter defines the upper bound of the interval of the uniform distribution (its lower bound is 0) i.e. all values between 0 and width are equally probable.

The offset parameter determines the minimal distance between two events and its value is added to the value sampled from the uniform distribution i.e. it shifts the distribution. Its default value is 0, i.e. no offset.

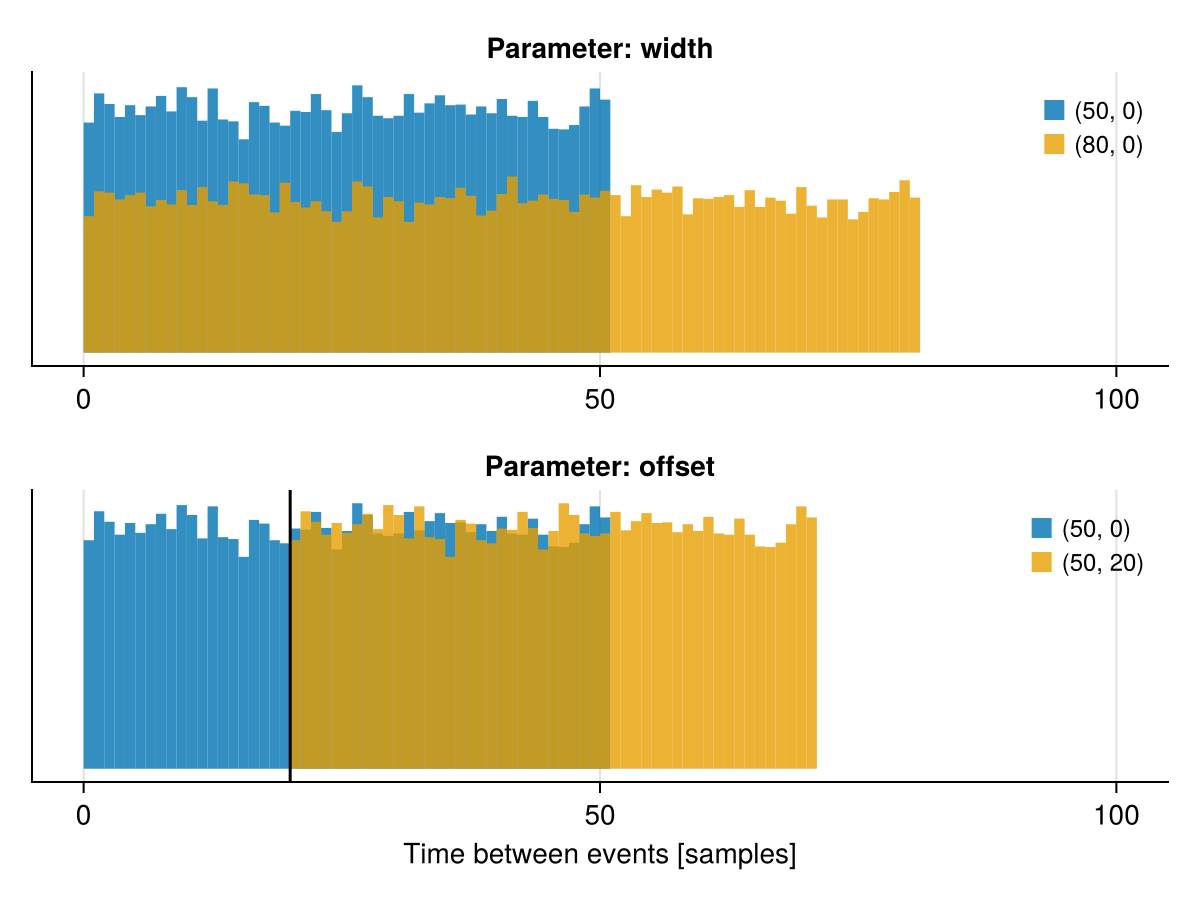

In the figure below, it is illustrated how the onset distribution changes when changing one of its parameters.

Click to show the code for the figure above

let
    f = Figure()

    # Define parameter combinations
    parameters = [(((50, 0), (80, 0)), "width"), (((50, 0), (50, 20)), "offset")]

    axes_list = Array{Any}(undef, length(parameters))

    # Create a subplot for each parameter i.e. one for width and one for offset
    for (index, (combinations, label)) in enumerate(parameters)
        ax = Axis(f[index, 1], title = "Parameter: $label")
        axes_list[index] = ax

        # Go through all parameter combinations and plot a histogram of the sampled onsets
        for (width, offset) in combinations
            onsets = UnfoldSim.simulate_interonset_distances(
                MersenneTwister(42),
                UniformOnset(; width = width, offset = offset),
                design,
            )

            hist!(ax, onsets, bins = range(0, 100, step = 1), label = "($width, $offset)")

            if label == "offset" && offset != 0
                vlines!(offset, color = "black")
            end
        end
        hideydecorations!(ax)
        hidespines!(ax, :t, :r)
        axislegend(
            ax,
            framevisible = false,
            labelsize = 12,
            markersize = 5,
            patchsize = (10, 10),
        )
    end
    axes_list[end].xlabel = "Time between events [samples]"
    linkyaxes!(axes_list...)
end

LogNormalOnset

The LogNormalOnset is based on a log-normal distribution and has four parameters: μ, σ, offset and truncate_upper.

Example:

onset_lognormal = LogNormalOnset(; μ = 3, σ = 0.25, offset = 0, truncate_upper = nothing);

The parameters μ and σ are the location and scale parameter of the log-normal distribution. However, they are not identical to its mean and standard deviation. If a variable $X$ is log-normally distributed then $Y = ln(X)$ is normally distributed with mean μ and standard deviation σ^[1].

The offset parameter determines the minimal distance between two events and its value is added to the value sampled from the log-normal distribution i.e. it shifts the distribution. Its default value is 0, i.e. no offset.

The truncate_upper parameter allows to truncate the distribution at a certain sample value. Its default value is nothing, i.e. no truncation.

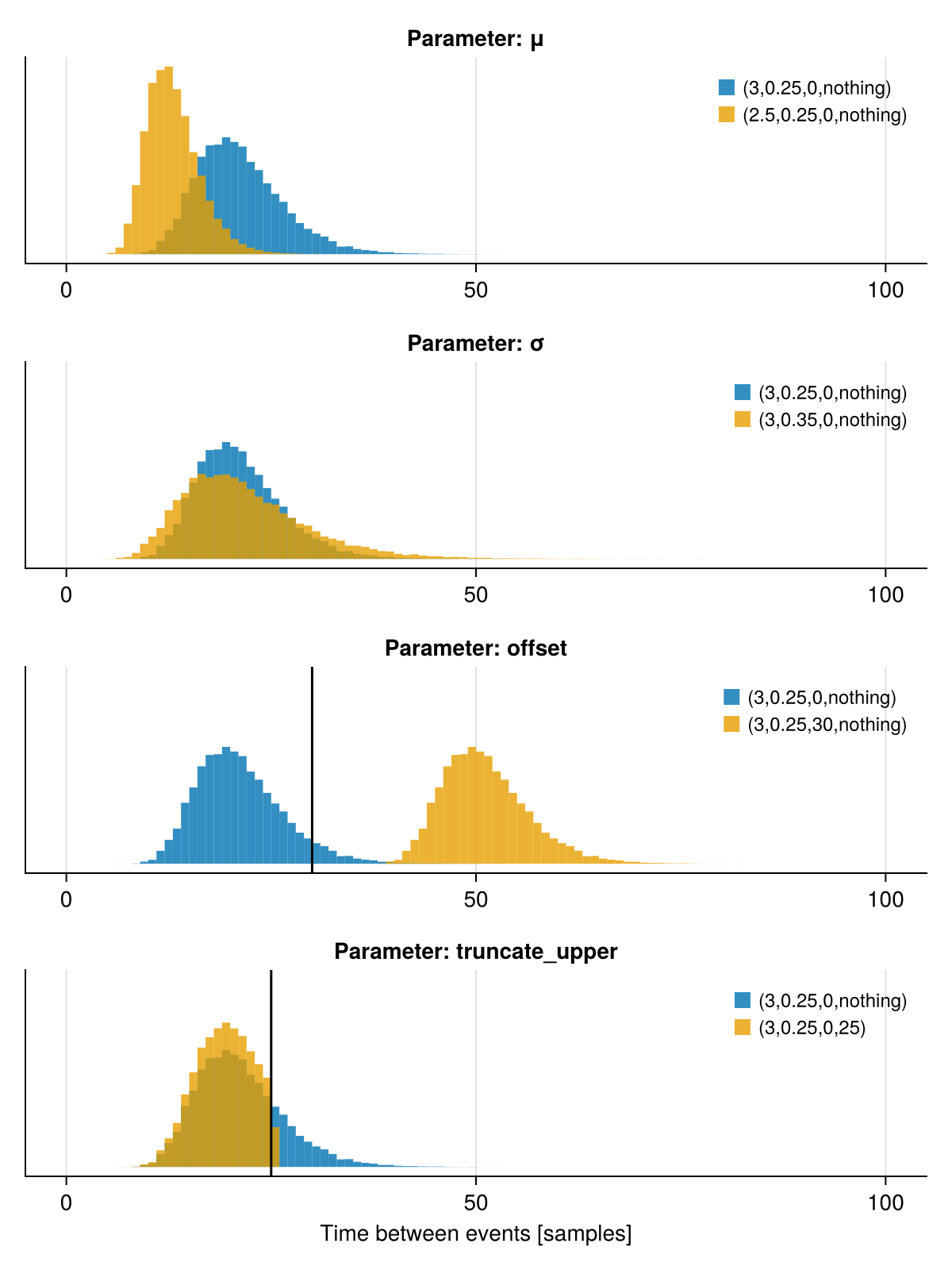

In the figure below, it is illustrated how the onset distribution changes when changing one of its parameters.

Click to show the code for the figure above

let
    f = Figure(size = (600, 800))

    # Define parameter combinations
    parameters = [
        (((3, 0.25, 0, nothing), (2.5, 0.25, 0, nothing)), "μ"),
        (((3, 0.25, 0, nothing), (3, 0.35, 0, nothing)), "σ"),
        (((3, 0.25, 0, nothing), (3, 0.25, 30, nothing)), "offset"),
        (((3, 0.25, 0, nothing), (3, 0.25, 0, 25)), "truncate_upper"),
    ]

    axes_list = Array{Any}(undef, length(parameters))

    # Create a subplot for each parameter i.e. one for μ, one for σ etc
    for (index, (combinations, label)) in enumerate(parameters)
        ax = Axis(f[index, 1], title = "Parameter: $label")
        axes_list[index] = ax

        # Go through all parameter combinations and plot a histogram of the sampled onsets
        for (μ, σ, offset, truncate_upper) in combinations
            onsets = UnfoldSim.simulate_interonset_distances(
                MersenneTwister(42),
                LogNormalOnset(;
                    μ = μ,
                    σ = σ,
                    offset = offset,
                    truncate_upper = truncate_upper,
                ),
                design,
            )

            hist!(
                ax,
                onsets,
                bins = range(0, 100, step = 1),
                label = "($μ,$σ,$offset,$truncate_upper)",
            )

            if label == "offset" && offset !== 0
                vlines!(offset, color = "black")
            elseif label == "truncate_upper" && truncate_upper !== nothing
                vlines!(truncate_upper, color = "black")
            end
        end
        hideydecorations!(ax)
        hidespines!(ax, :t, :r)
        axislegend(
            ax,
            framevisible = false,
            labelsize = 12,
            markersize = 5,
            patchsize = (10, 10),
        )
    end
    axes_list[end].xlabel = "Time between events [samples]"
    linkyaxes!(axes_list...)
end

Overlap of subsequent events

Note

The overlap of subsequent events can be indirectly controlled by setting the offset parameter relative to the length of the component basis. Assuming that signal is a component e.g. LinearModelComponent,

if offset > length(signal.basis) -> no overlap
if offset < length(signal.basis) -> there might be overlap, depending on the other parameters of the onset distribution
