Quickstart

To get started with data simulation, the user needs to provide four ingredients:

an experimental design, defining which conditions and how many events/"trials" exist
an event basis function, defining the simulated event-related response for every event (e.g. the ERP shape in EEG)
an inter-onset event distribution, defining the distances in time of the event sequence
a noise specification, defining the type of noise signal that is added to the simulated signal (e.g. pink noise)

Tip

Use subtypes(AbstractNoise) (or subtypes(AbstractComponent) etc.) to find already implemented building blocks.

Specify the simulation ingredients

Setup

Click to expand

# Load required packages
using UnfoldSim
using Random # to get an RNG
using CairoMakie # for plotting

Experimental Design

Define a 1 x 2 design with 20 trials. That is, one condition (cond_A) with two levels.

design =
    SingleSubjectDesign(; conditions = Dict(:cond_A => ["level_A", "level_B"])) |>
    x -> RepeatDesign(x, 10);

Event basis function (Component)

Define a simple component and ground truth simulation formula. Akin to ERP components, we call one simulation signal a component.

Note

You could easily specify multiple components by providing a vector of components, which are automatically added at the same onsets. This procedure simplifies to generate some response that is independent of simulated condition, whereas other depends on it.

signal = LinearModelComponent(;
    basis = [0, 0, 0, 0.5, 1, 1, 0.5, 0, 0],
    formula = @formula(0 ~ 1 + cond_A),
    β = [1, 0.5],
);

Onsets and Noise

We will start with a uniform (but overlapping, offset < length(signal.basis)) inter-onset distribution.

onset = UniformOnset(; width = 20, offset = 4);

And we will use some noise

noise = PinkNoise(; noiselevel = 0.2);

Combine & Generate

Finally, we will combine all ingredients and simulate some data.

data, events = simulate(MersenneTwister(1), design, signal, onset, noise);

data is a n-sample Vector (but could be a Matrix for e.g. MultiSubjectDesign or epoched data).

events is a DataFrame that contains a column latency with the onsets of events (in samples).

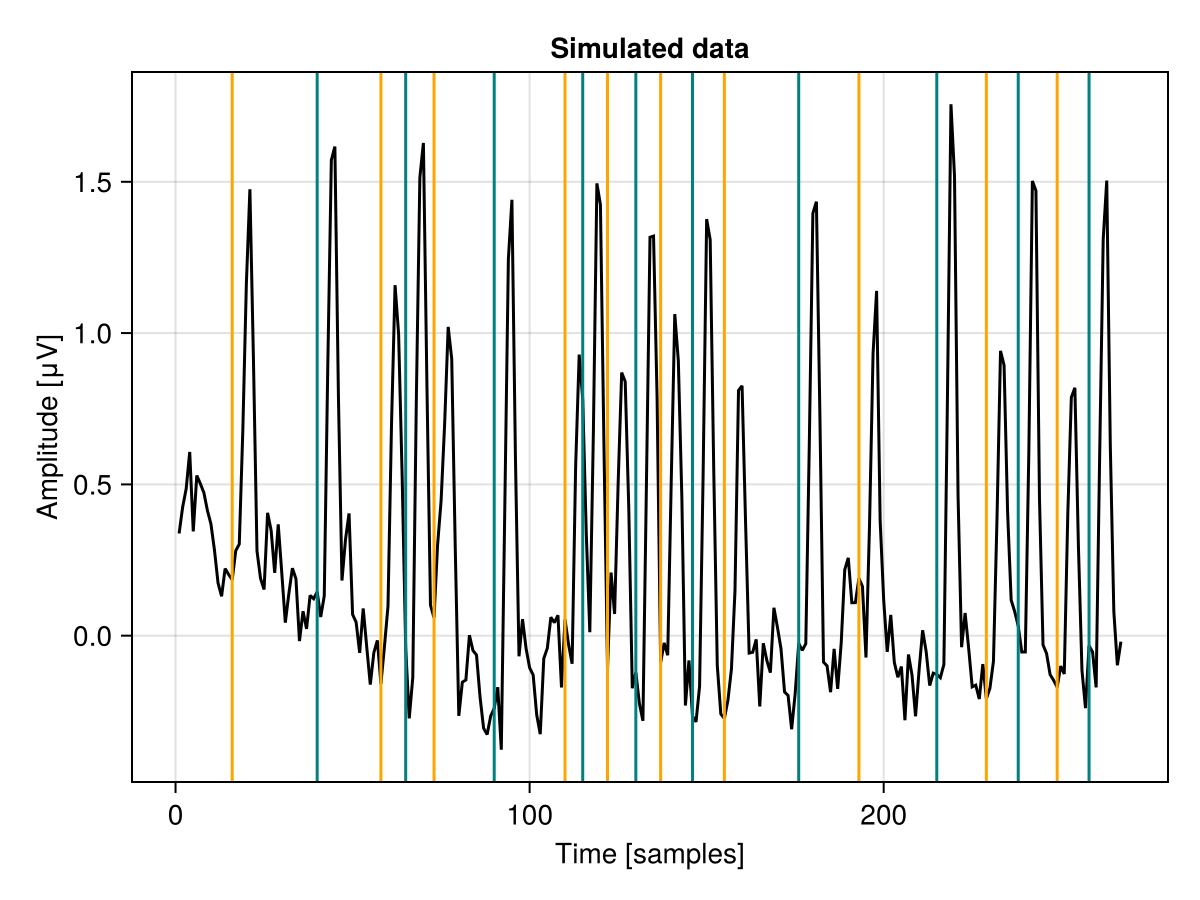

Plot them!

lines(data; color = "black")
vlines!(events.latency; color = ["orange", "teal"][1 .+ (events.cond_A.=="level_B")])

current_axis().title = "Simulated data"
current_axis().xlabel = "Time [samples]"
current_axis().ylabel = "Amplitude [μV]"

current_figure()
