Simulate event-related potentials (ERPs)

One subfield of EEG research focuses on so-called event-related potentials (ERPs) which are defined as brain responses time-locked to a certain event e.g. stimulus onset. The waveform of an ERP usually consists of multiple ERP components which denote the peaks and troughs of the waveform.

ERP components are characterized (and named) by their timing relative to the event, their polarity (positive or negative) and their scalp topography. For example, the N170 describes a negative deflection which occurrs roughly 170 ms after the onset of (certain) visual stimuli. Often, researchers are interested how a component (e.g. its amplitude or timing) changes depending on certain experimental factors. For example, N170 has been shown to be related to face processing and its amplitude is modulated by whether the stimulus is a face or an object e.g. a car. (Source)

Here we will learn how to simulate a typical ERP complex with P100, N170, P300.

Setup

# Load required packages
using UnfoldSim # For simulation
using Random # For randomization
using StableRNGs # To get an RNG
using Unfold # For analysis
using CairoMakie # For plotting
using UnfoldMakie # For plotting

Specify the simulation "ingredients"

1. Experimental design

We specify an experimental design with one subject in two experimental conditions including a continuous variable with 10 values. To mimic randomization in an experiment, we shuffle the trials using the event_order_function argument. To generate more trials we repeat the design 100 times which results in 2000 trials in total.

design =
    SingleSubjectDesign(;
        conditions = Dict(
            :condition => ["car", "face"],
            :continuous => range(0, 5, length = 10),
        ),
        event_order_function = shuffle,
    ) |> x -> RepeatDesign(x, 100);

The generate_events function can be used to create an events data frame from the specified experimental design.

events_df = generate_events(StableRNG(1), design);
first(events_df, 5)

Above you can see the first five rows extracted from the events data frame representing the experimental design. Each row corresponds to one event. The columns continuous and condition display the levels of the predictor variables for the specific event.

2. Event basis functions (Components)

Next, we create a signal consisting of three different components.

For the first component, we use the prespecified P100 base which will be unaffected by our design and has an amplitude of 5 µV.

p1 = LinearModelComponent(; basis = p100(), formula = @formula(0 ~ 1), β = [5]);

For the second component, we use the prespecified N170 base with an intercept of 5 µV and a condition effect of 3 µV for the “face/car” condition i.e. faces will have a more negative signal than cars.

n1 = LinearModelComponent(;
    basis = n170(),
    formula = @formula(0 ~ 1 + condition),
    β = [5, 3],
);

For the third component, we use the prespecified P300 base and include a linear and a quadratic effect of the continuous variable: the larger the value of the continuous variable, the larger the simulated potential.

p3 = LinearModelComponent(;
    basis = p300(),
    formula = @formula(0 ~ 1 + continuous + continuous^2),
    β = [5, 1, 0.2],
);

3. Inter-onset distribution

In the next step, we specify an inter-onset distribution, in this case, a uniform distribution with an inter-event distance of exactly 200 samples.

onset = UniformOnset(; width = 0, offset = 200);

4. Noise specification

As the last ingredient, we specify the noise, in this case, Pink noise.

noise = PinkNoise(; noiselevel = 2);

Simulate data

Finally, we combine all the ingredients and simulate data. To make the simulation reproducible, one can specify a random generator.

# Combine the components in a vector
components = [p1, n1, p3]

# Simulate data
eeg_data, events_df = simulate(StableRNG(1), design, components, onset, noise);

To inspect the simulated data we will visualize the first 1400 samples.

f = Figure(size = (1000, 400))
ax = Axis(
    f[1, 1],
    title = "Simulated EEG data",
    titlesize = 18,
    xlabel = "Time [samples]",
    ylabel = "Amplitude [µV]",
    xlabelsize = 16,
    ylabelsize = 16,
    xgridvisible = false,
    ygridvisible = false,
)

n_samples = 1400
lines!(eeg_data[1:n_samples]; color = "black")
v_lines = [
    vlines!(
        [r["latency"]];
        color = ["orange", "teal"][1+(r["condition"]=="car")],
        label = r["condition"],
    ) for r in
    filter(:latency => x -> x < n_samples, events_df)[:, ["latency", "condition"]] |>
    eachrow
]
xlims!(ax, 0, n_samples)
axislegend("Event onset"; unique = true);

current_figure()

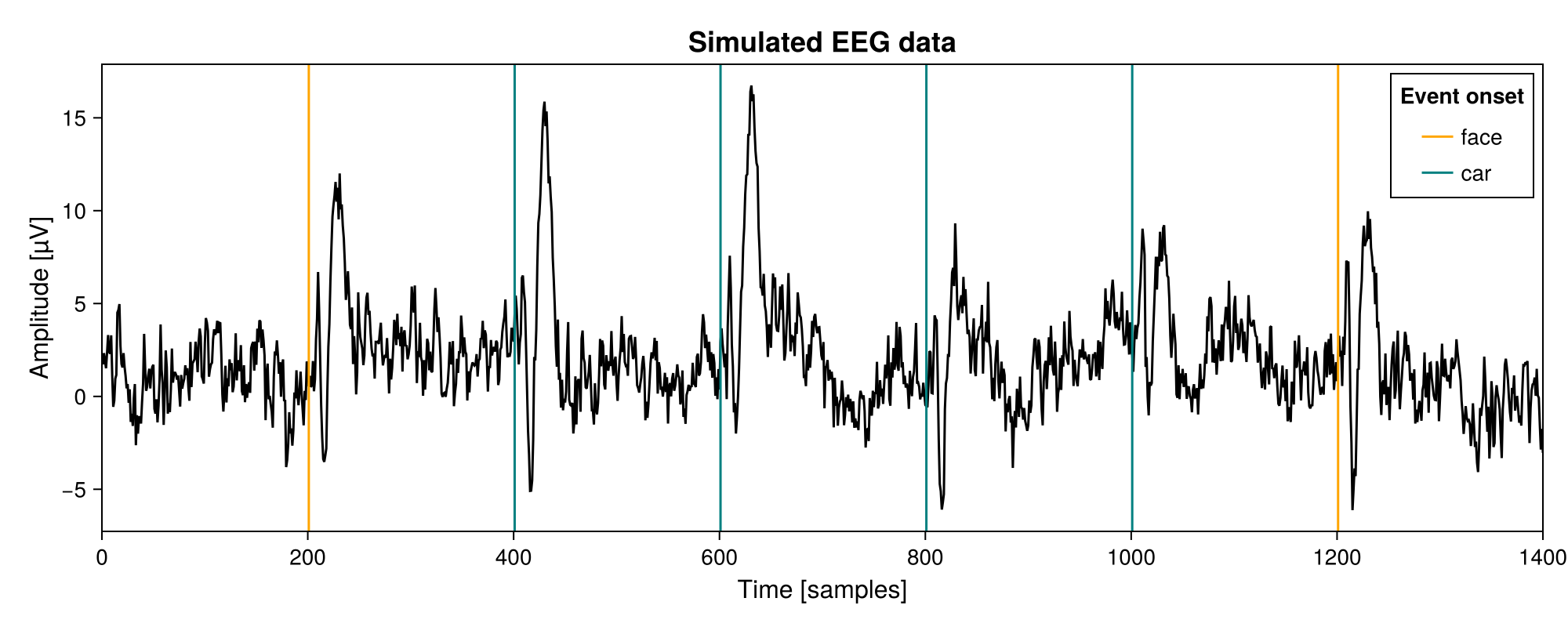

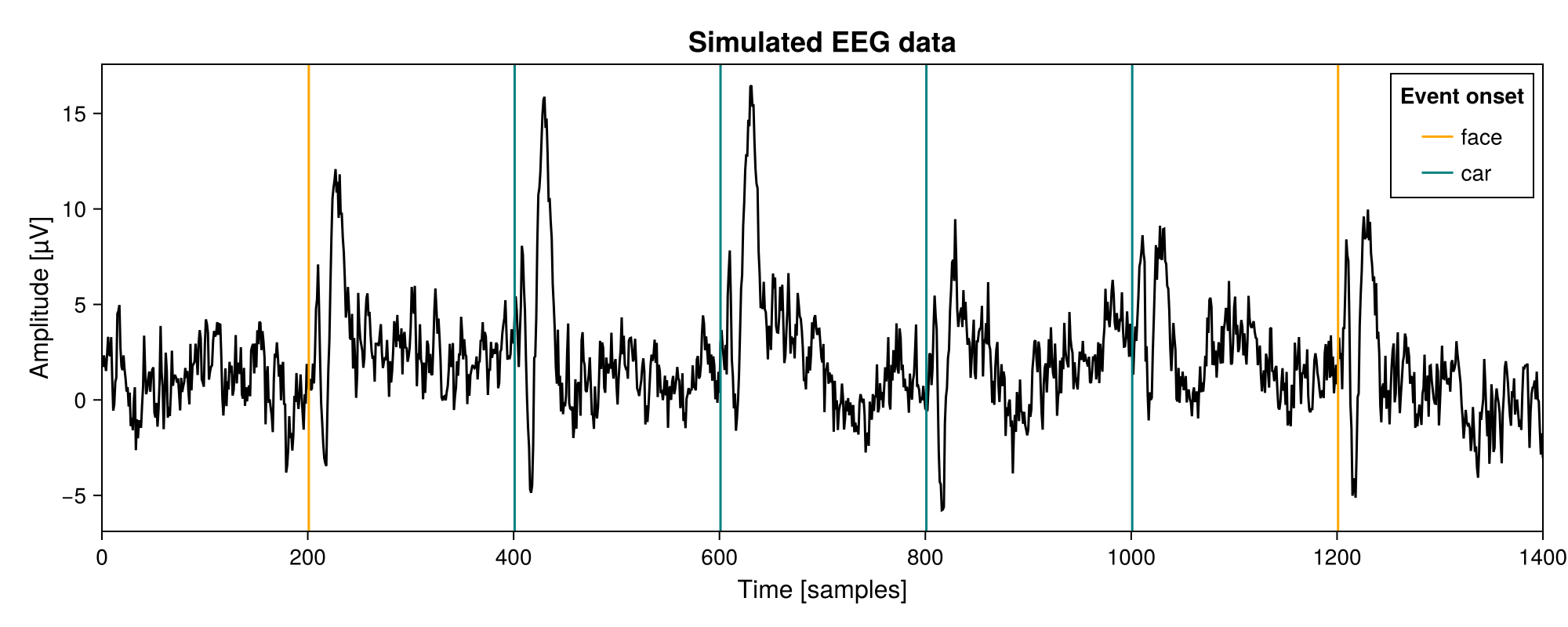

The vertical lines denote the event onsets and their colour represents the respective condition i.e. car or face.

Validate the simulation results

To validate the simulation results, we use the Unfold.jl package to fit an Unfold regression model to the simulated data and examine the estimated regression parameters and marginal effects. For the formula, we include a categorical predictor for condition and a non-linear predictor (based on splines) for continuous.

m = fit(
    UnfoldModel,
    [
        Any => (
            @formula(0 ~ 1 + condition + spl(continuous, 4)),
            firbasis(τ = [-0.1, 1], sfreq = 100, name = "basis"),
        ),
    ],
    events_df,
    eeg_data,
);

To inspect the modelling results we will visualize the model coefficient estimates together with the estimated marginal effects i.e. the predicted ERPs.

# Create a data frame with the model coefficients and extract the coefficient names
coefs = coeftable(m)
coefnames = unique(coefs.coefname)

f2 = Figure(size = (1000, 400))
ga = f2[1, 1] = GridLayout()
gb = f2[1, 2] = GridLayout()

# Plot A: Estimated regression parameters
ax_A = Axis(
    ga[1, 1],
    title = "Estimated regression parameters",
    titlegap = 12,
    xlabel = "Time [s]",
    ylabel = "Amplitude [μV]",
    xlabelsize = 16,
    ylabelsize = 16,
    xgridvisible = false,
    ygridvisible = false,
)

for coef in coefnames
    estimate = filter(:coefname => ==(coef), coefs)

    lines!(ax_A, estimate.time, estimate.estimate, label = coef)
end
axislegend("Coefficient", framevisible = false)
hidespines!(ax_A, :t, :r)

# Plot B: Marginal effects
plot_B = plot_erp!(
    gb,
    effects(Dict(:condition => ["car", "face"], :continuous => 0:0.5:5), m);
    mapping = (; color = :continuous, linestyle = :condition, group = :continuous),
    legend = (; valign = :top, halign = :right),
    axis = (
        title = "Marginal effects",
        titlegap = 12,
        xlabel = "Time [s]",
        ylabel = "Amplitude [μV]",
        xlabelsize = 16,
        ylabelsize = 16,
        xgridvisible = false,
        ygridvisible = false,
    ),
)

# Add letter labels to the plots
# Adapted from: https://docs.makie.org/stable/tutorials/layout-tutorial/
for (label, layout) in zip(["A", "B"], [ga, gb])
    Label(
        layout[1, 1, TopLeft()],
        label,
        fontsize = 26,
        font = :bold,
        padding = (0, 5, 5, 0),
        halign = :right,
    )
end

current_figure()

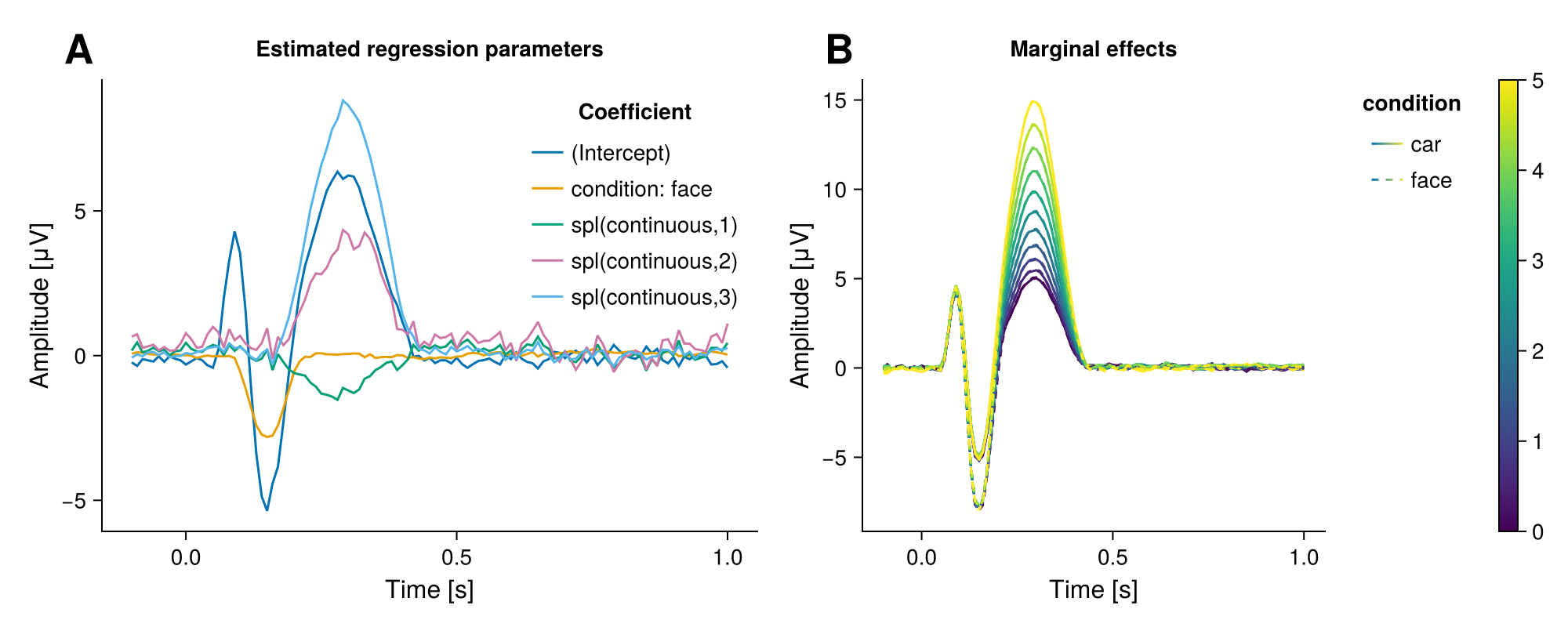

In subplot A, one can see the model coefficient estimates and as intended the first component is unaffected by the experimental design, there is a condition effect in the second component and an effect of the continuous variable on the third component. The relation between the levels of the continuous variable and the scaling of the third component is even clearer visible in subplot B which depicts the estimated marginal effects of the predictors which are obtained by evaluating the estimated function at specific values of the continuous variable.

As shown in this example, UnfoldSim.jl and Unfold.jl can be easily combined to investigate the effects of certain features, e.g. the type of noise or its intensity on the analysis result and thereby assess the robustness of the analysis.
