Topoplot

Topoplot (aka topography plot) is a plot type for visualisation of EEG activity in a specific time stemp or time interval. It can fully represent channel and channel location dimensions using contour lines.

The topoplot is a 2D projection and interpolation of the 3D distributed sensor activity. The name stems from physical geography, but instead of height, the contour lines represent voltage levels.

Setup

Package loading

using UnfoldMakie
using DataFrames
using CairoMakie, MakieThemes
using TopoPlots

Data loading

topo_array, topo_positions = TopoPlots.example_data();

The size of topo_array is 64×400×3. This means:

  • 64 channels;
  • 400 timepoints in range from -0.3 to 0.5 mseconds;
  • Estimates of 3 averaging functions. Instead of displaying the EEG data for all subjects, here we aggregate the data using (1) mean, (2) standard deviation and (3) p-value within t-tests.

While position consist of 64 x and y coordinates of each channels on a scalp.

Plot a topoplot

Let's select a time point in 340 msec and the mean estimate.

plot_topoplot(
    topo_array[:, 340, 1];
    positions = topo_positions,
    axis = (; xlabel = "Time [340 ms]"),
    colorbar = (; height = 350),
)

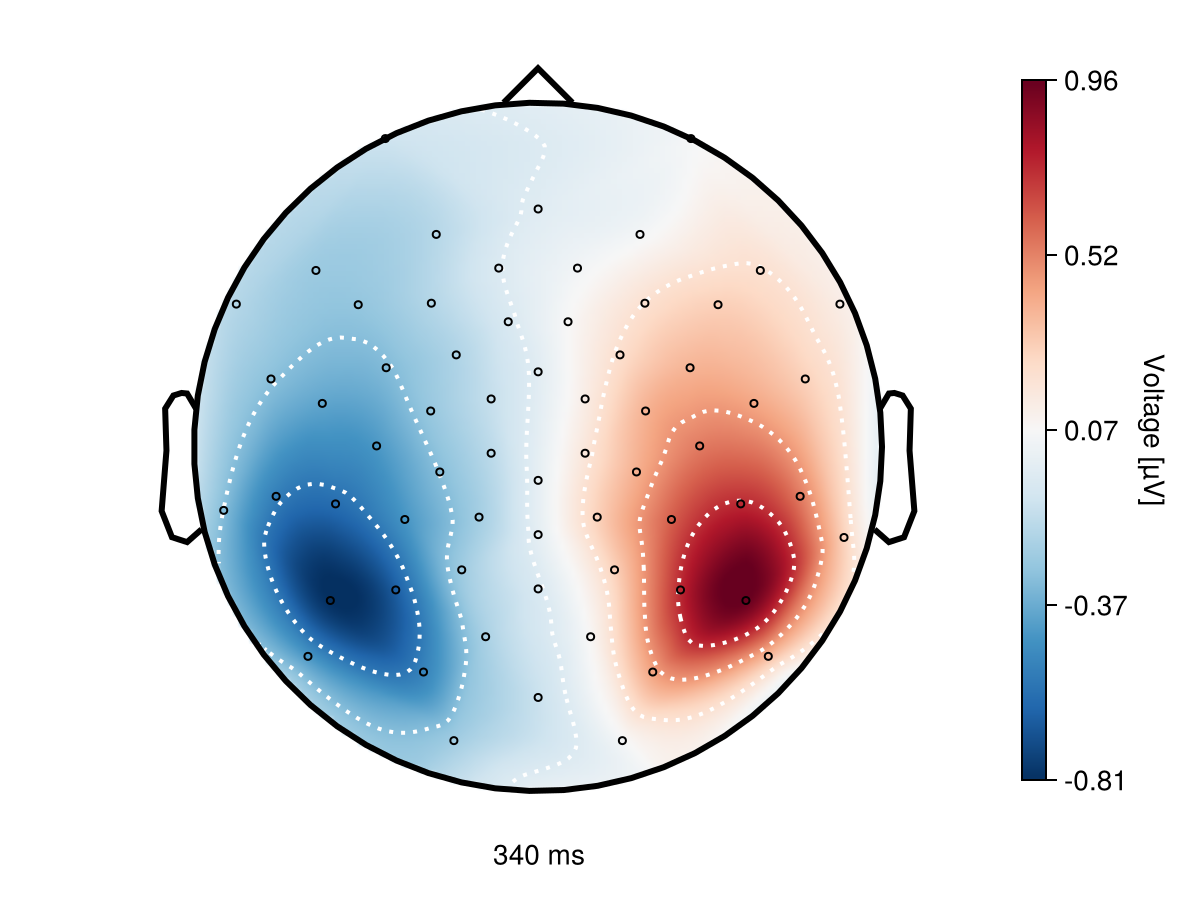

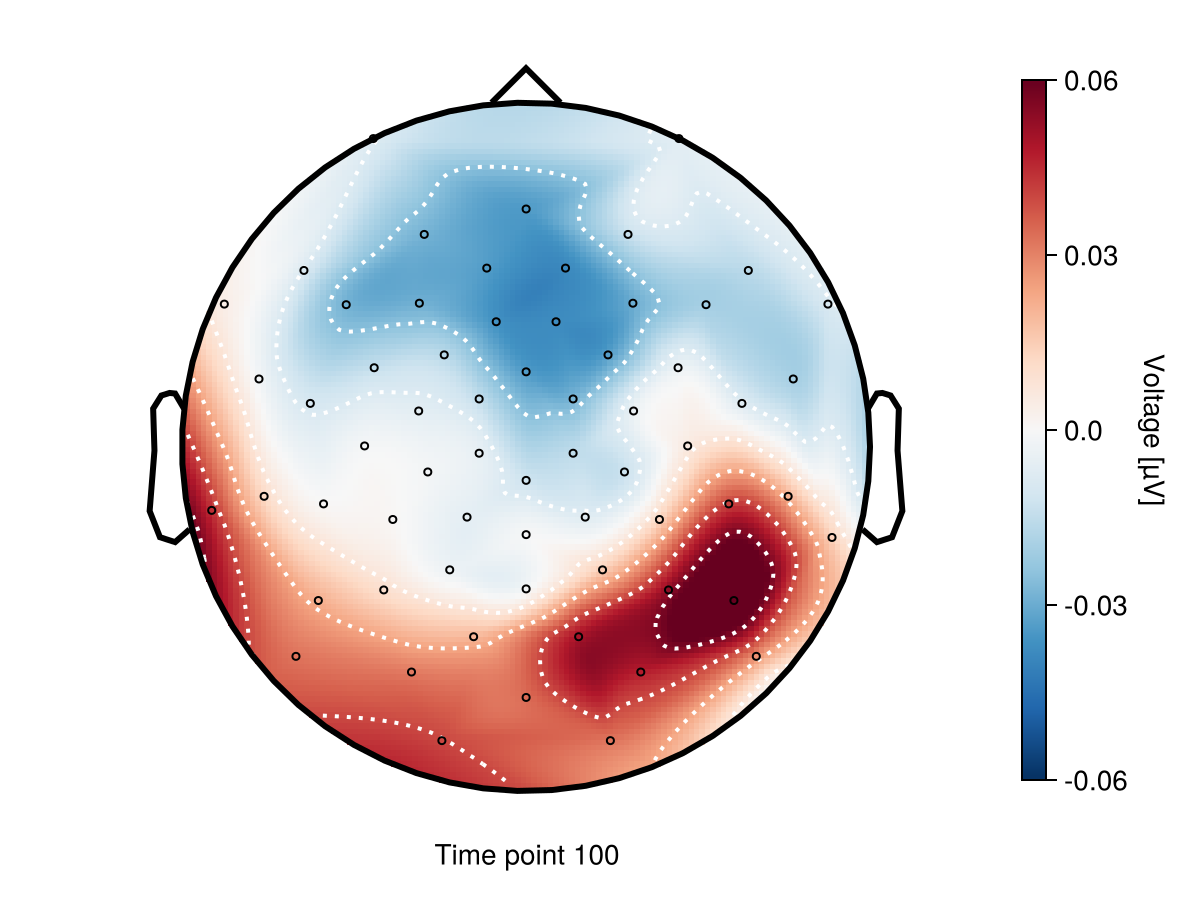

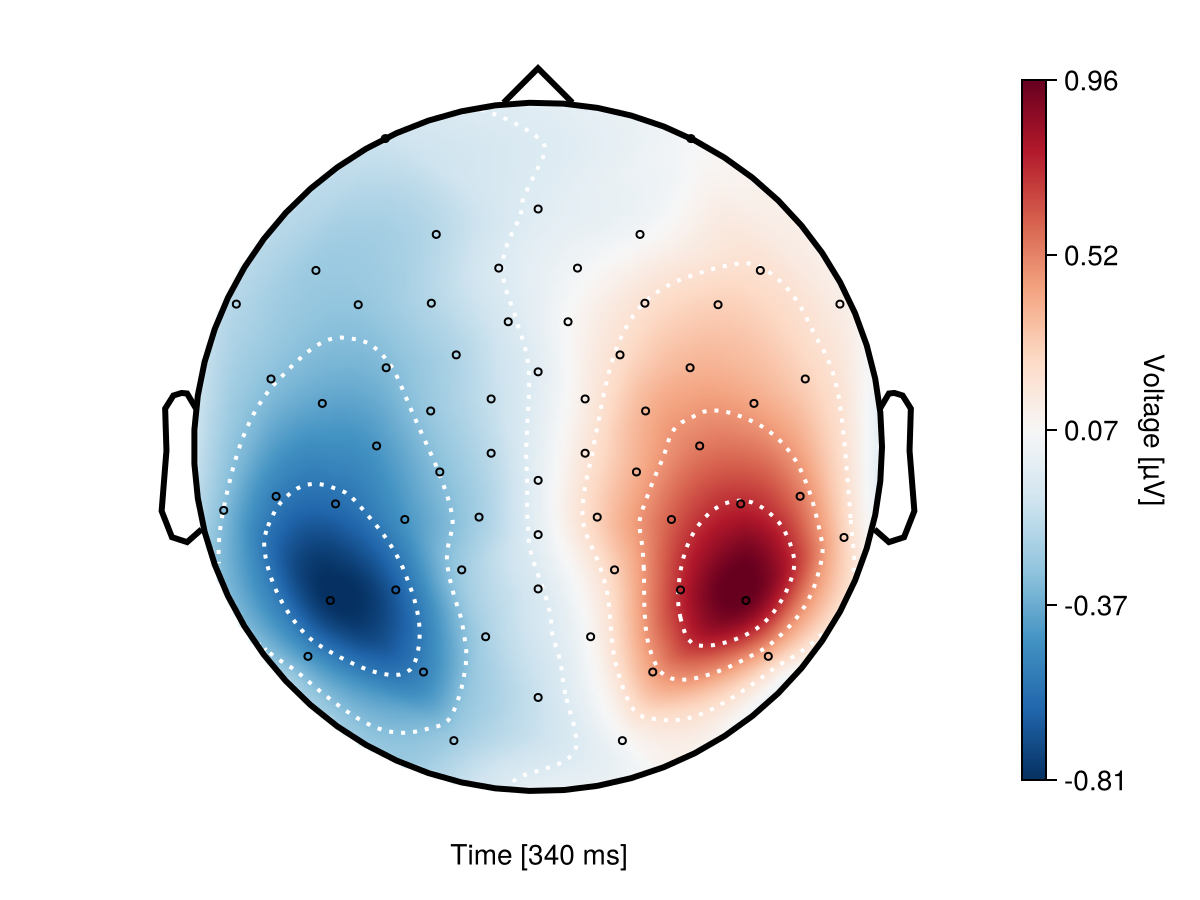

Example block output

A typical topoplot consists of:

  1. a head outline showing the voltage at a given time point or over a time window;
  2. a colorbar for the voltage scale;
  3. channel markers and labels (sensors/electrodes).

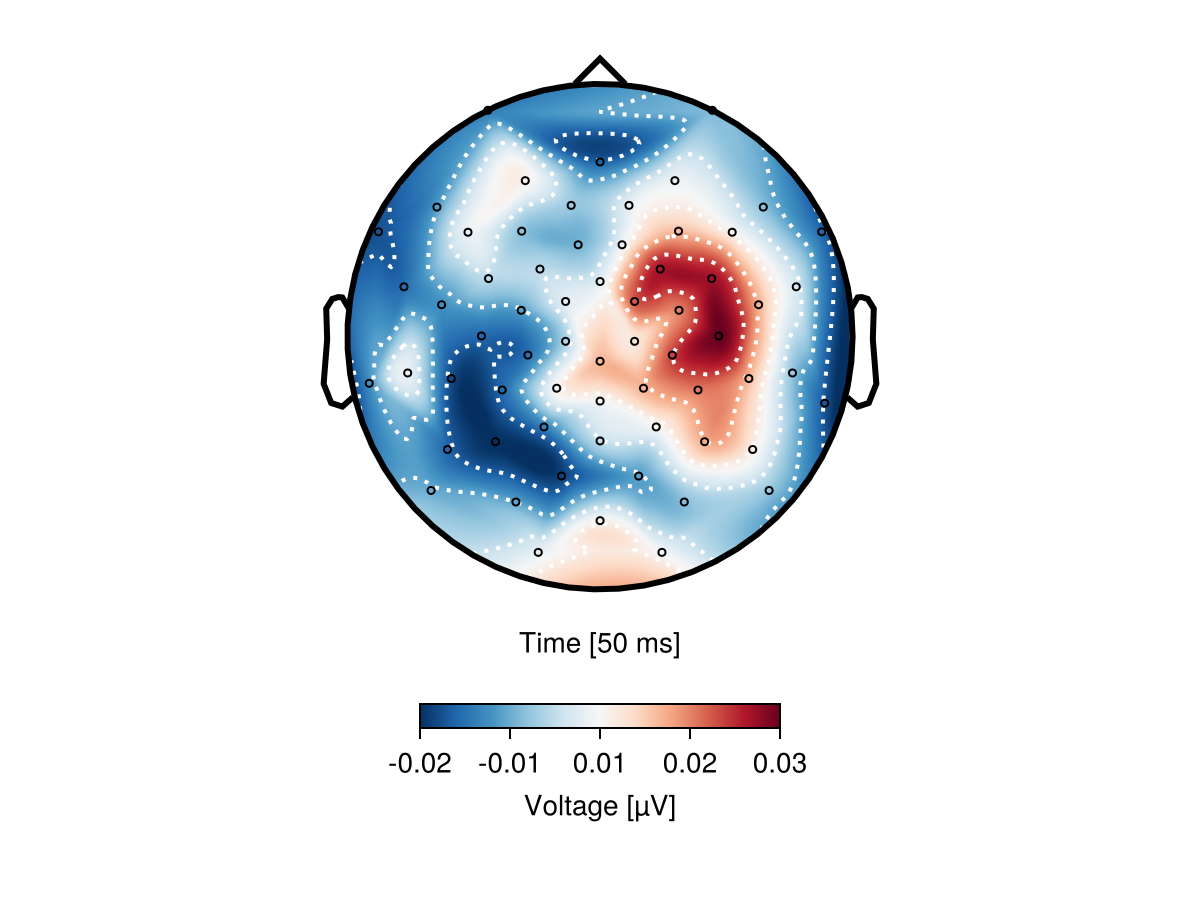

Horizontal colorbars

Topoplot colorbars can be vertical or horizontal. Horizontal colorbars are useful when displaying multiple plots side by side. Set colorbar.vertical = false to switch to a horizontal orientation.

plot_topoplot(
    topo_array[:, 50, 1];
    positions = topo_positions,
    axis = (; xlabel = "Time [50 ms]"),
    colorbar = (; vertical = false, width = 180),
)

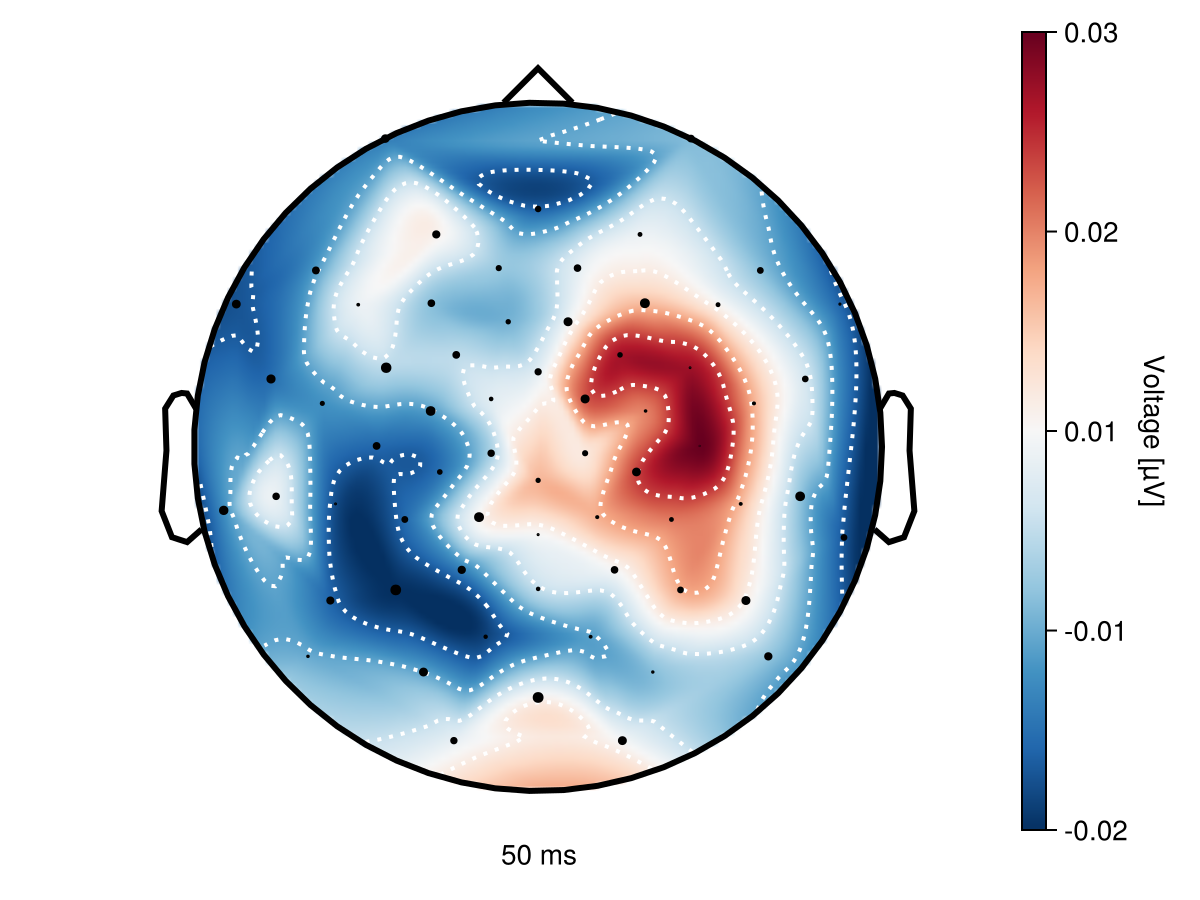

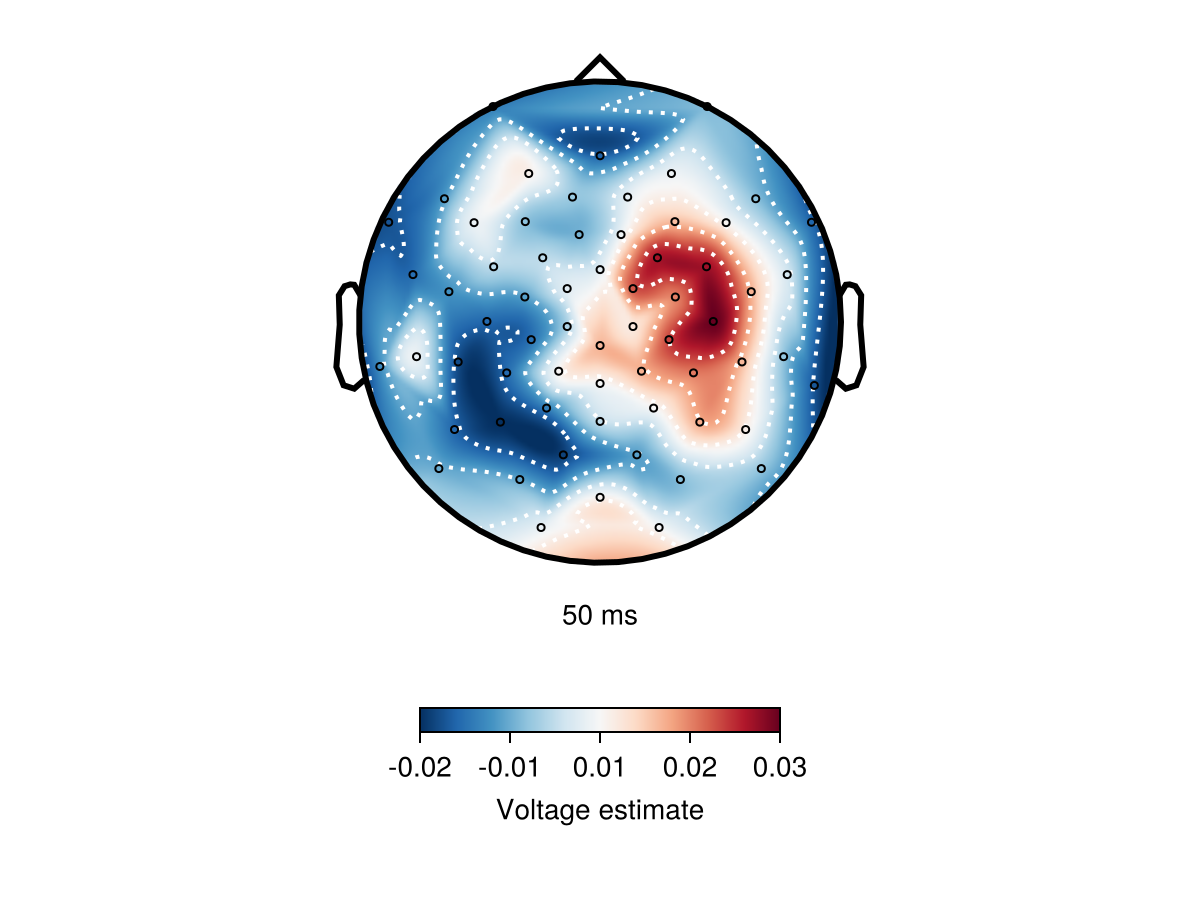

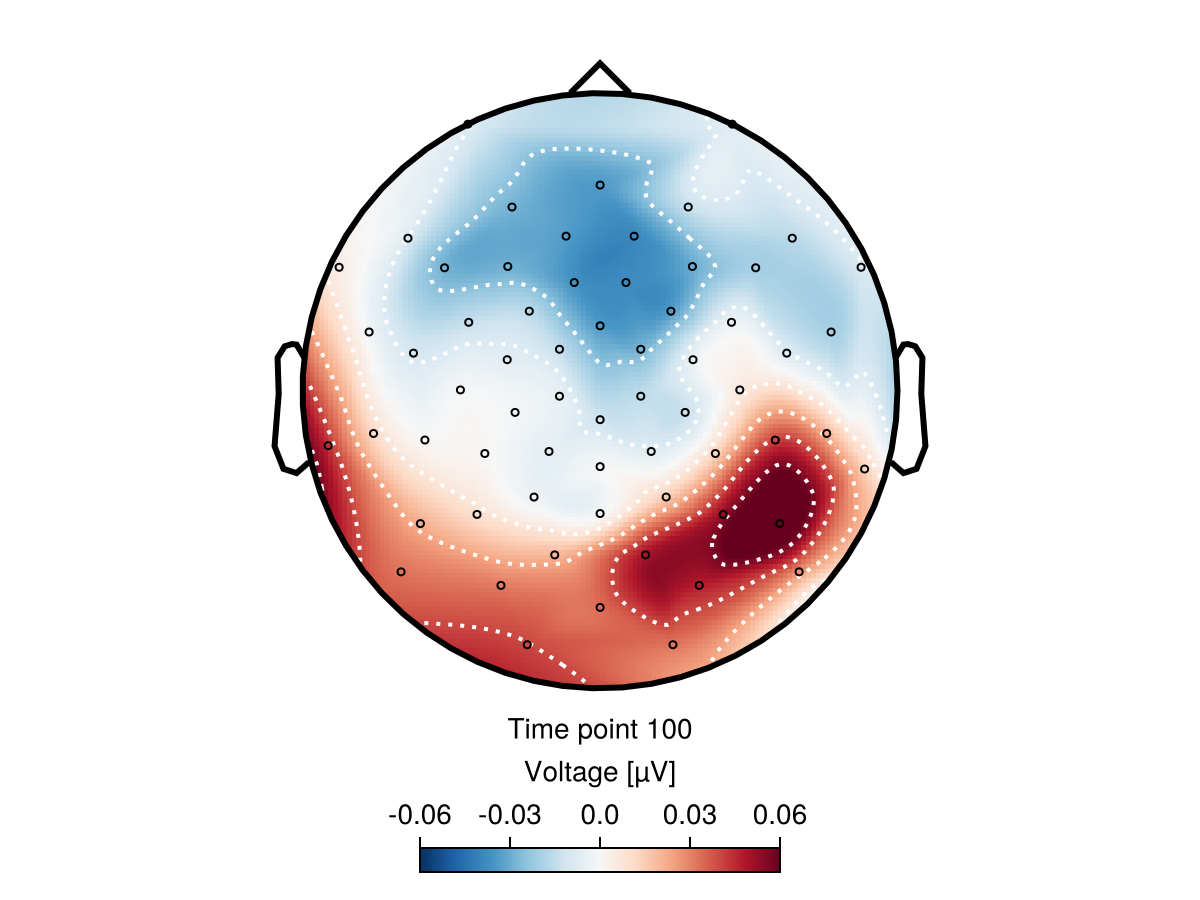

Example block output

Colormaps

When choosing a colormap for topoplots, it should:

  1. Be “scientific”: perceptually linear, with a meaningful and ordered color scale;
  2. Be diverging (to distinguish positive vs. negative effects);
  3. Be color-blind friendly.
begin
    f = Figure(size = (700, 700))
    Label(
        f[0, 1:3],
        "Topoplots with Diverging Scientific Colormaps";
        fontsize = 22,
        halign = :center,
    )

    colormaps = [:berlin, :roma, :lisbon, :cork, :managua, :bam]

    for (i, cmap) in enumerate(colormaps)
        r = div(i - 1, 3) + 1   # row index (1 or 2)
        c = mod(i - 1, 3) + 1   # column index (1 → 3)

        plot_topoplot!(f[r, c],
            topo_array[:, 100, 1];
            positions = topo_positions,
            axis = (; xlabel = "Time [100 ms]", title = string(cmap)),
            colorbar = (; vertical = false, width = 180),
            visual = (; colormap = cmap, contours = false),
        )
    end
    f
end

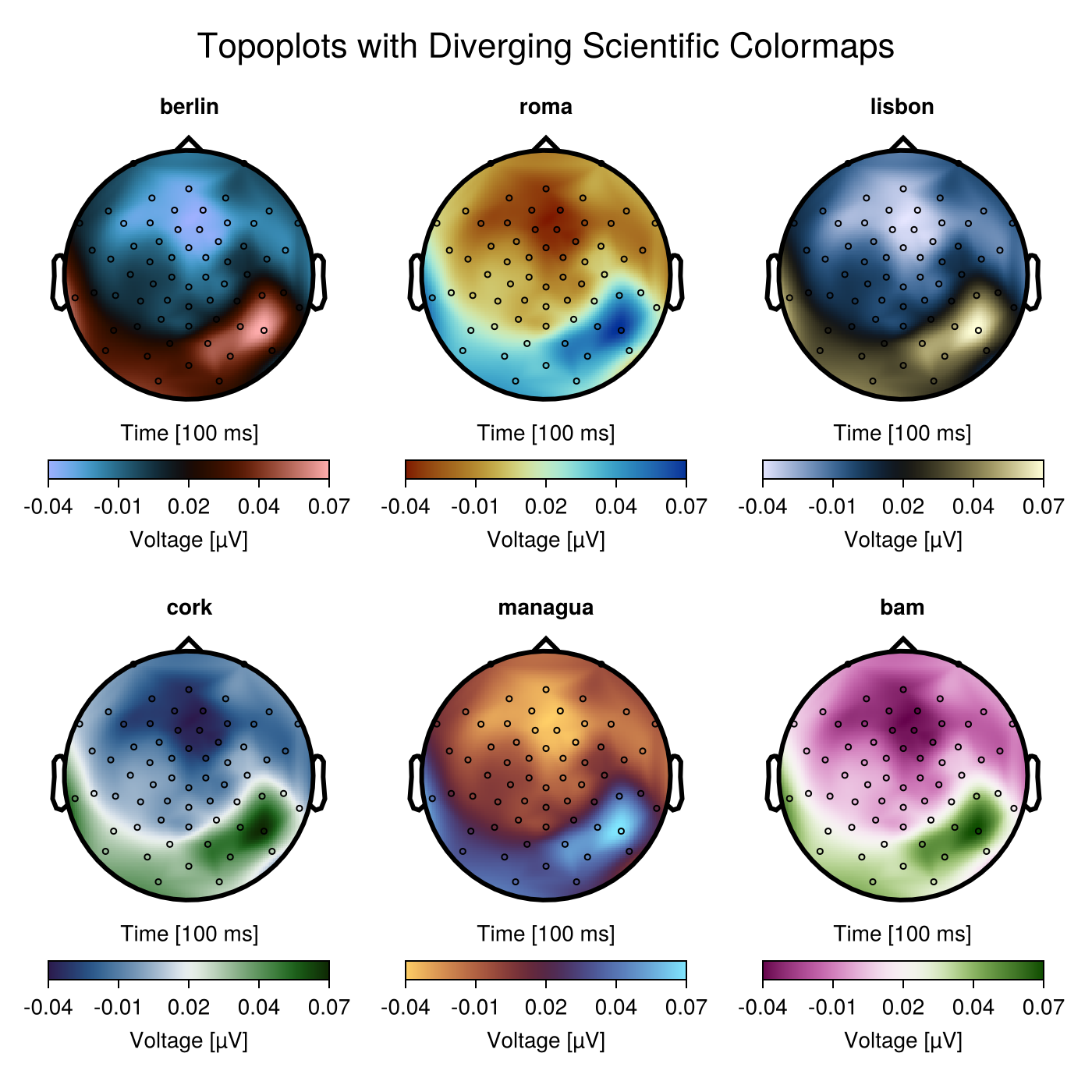

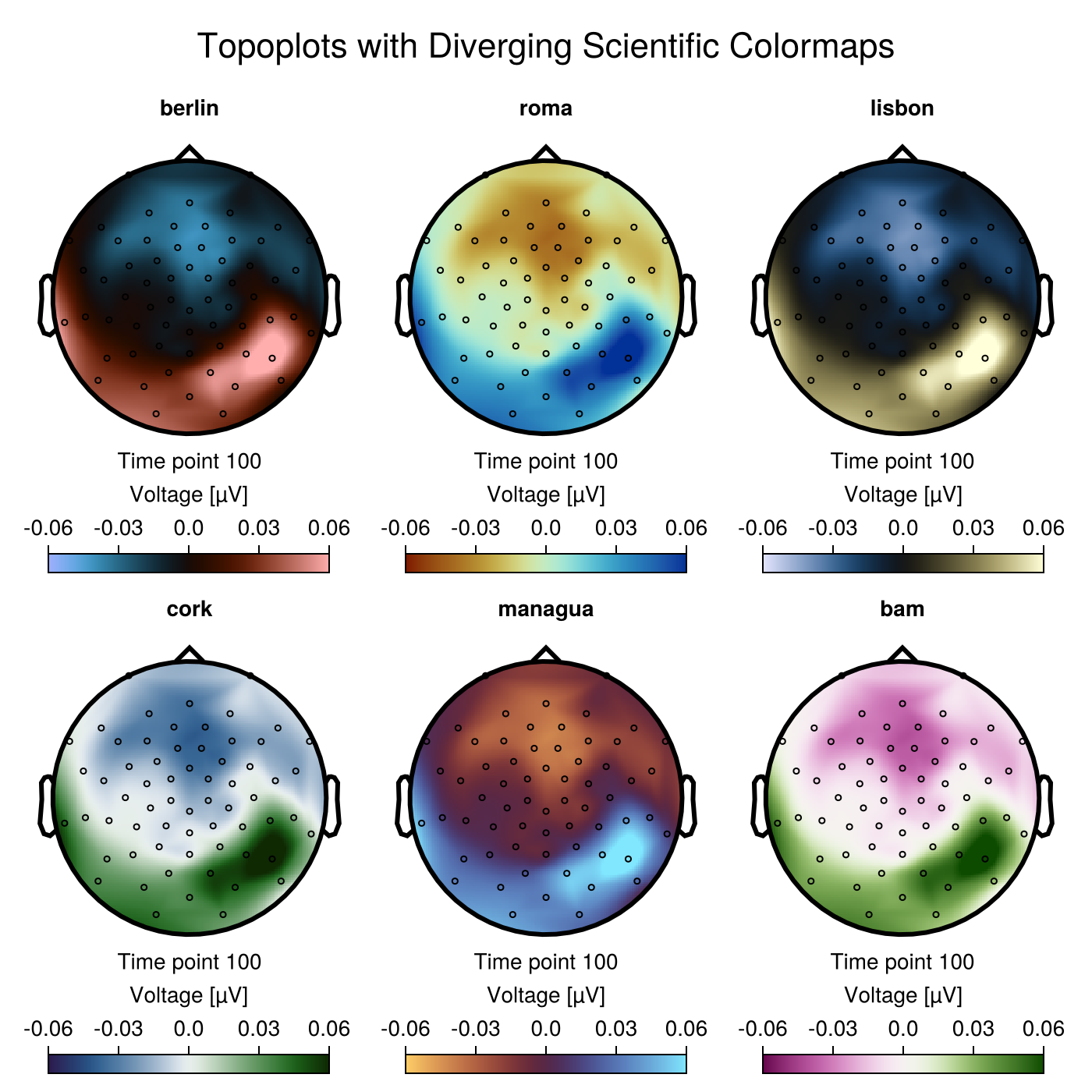

Example block output

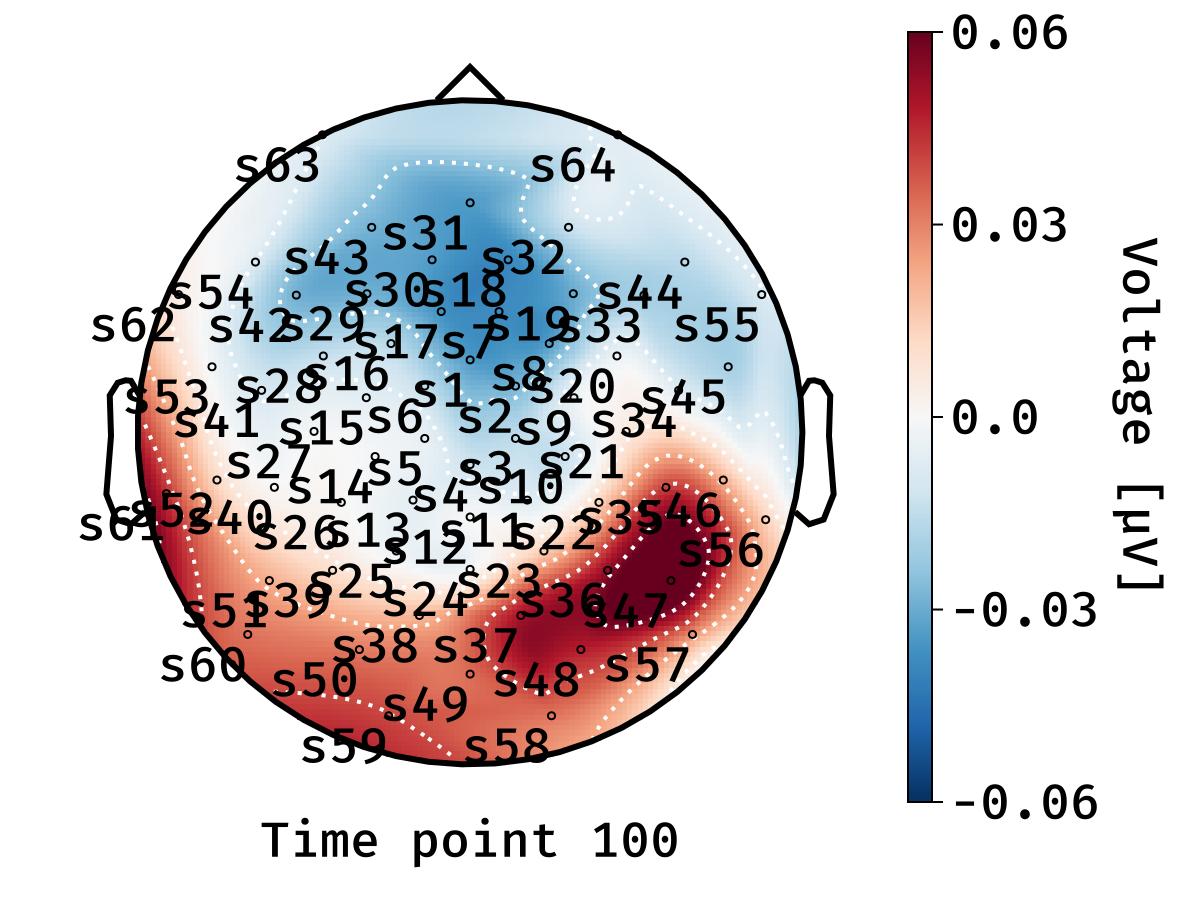

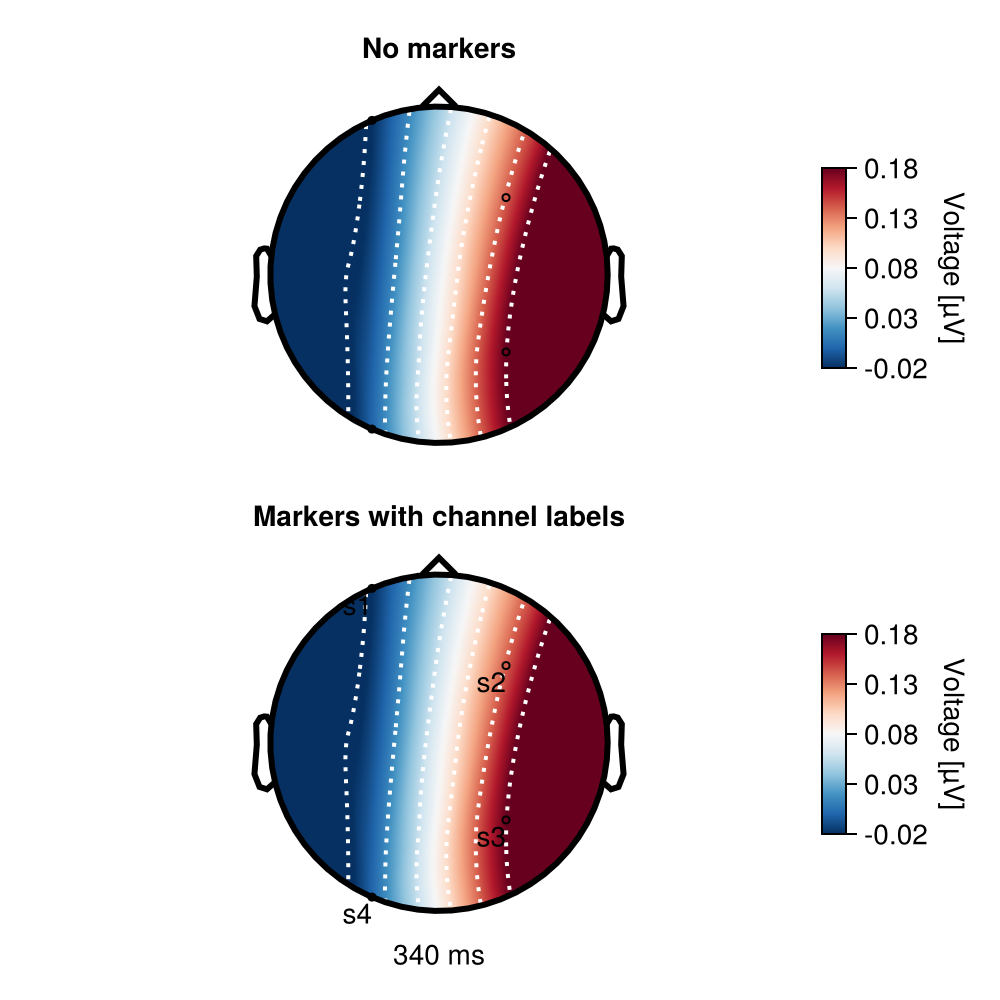

Channel labels

Changing fonts and font size Here we use arbitrary labels "s1", "s2", ..., "s64" for demonstration. To learn how to use real channel names, check the dedicated page about channel labels.

labels = ["s$i" for i = 1:size(topo_array, 1)]

with_theme(Theme(; fontsize = 25, fonts = (; regular = "Ubuntu Mono"))) do
    plot_topoplot(
        topo_array[:, 340, 1];
        labels,
        positions = topo_positions,
        visual = (; label_text = true),
        axis = (; xlabel = "340 ms"),
    )
end

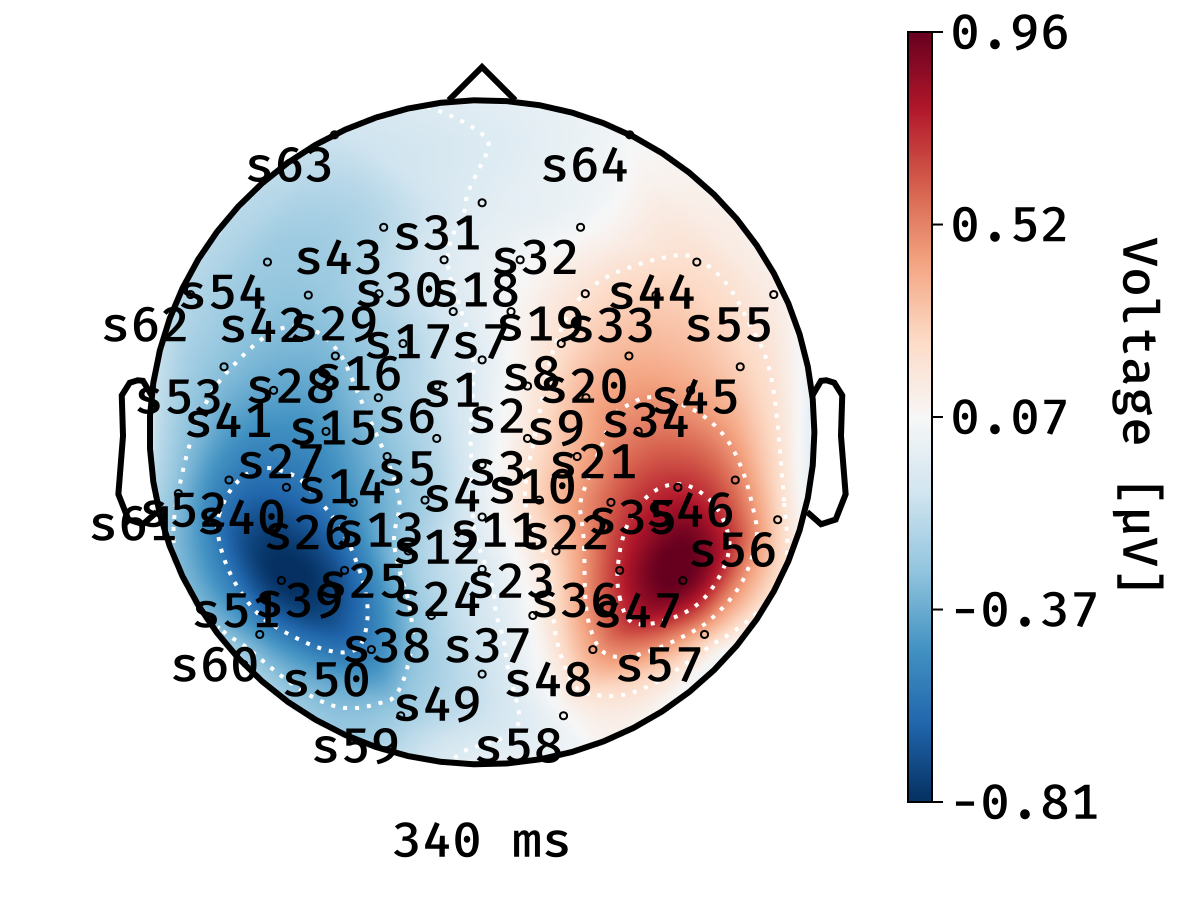

Example block output

Check that the font you choose is available on your PC or GitHub.

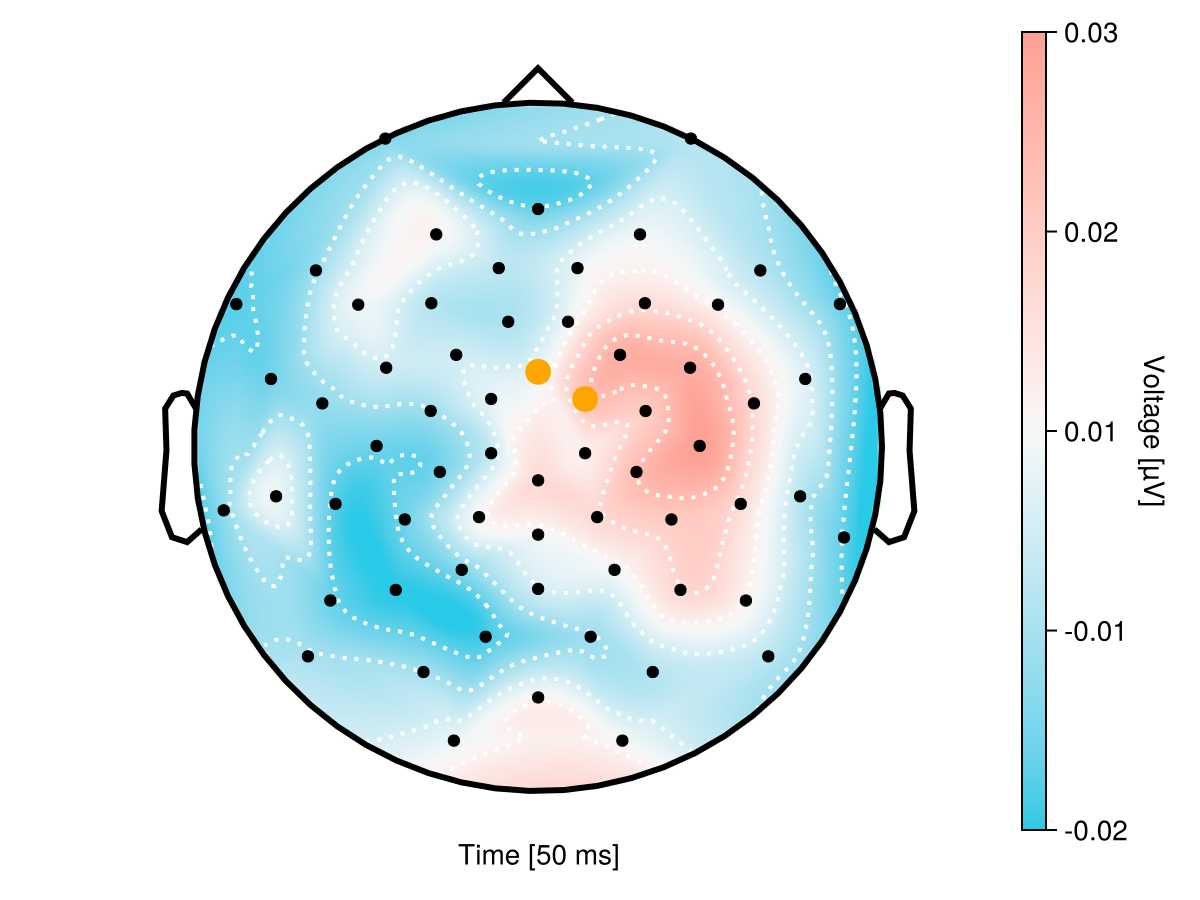

Highlighting channels

Create per-channel styles

colors = fill(:black, 64)      # default
sizes = fill(8, 64)           # default size
strokes = fill(0.5, 64);        # default width

Highlight first two

colors[1:2] .= (:orange, :orange)
sizes[1:2] .= (14, 14)
strokes[1:2] .= (3, 3)

plot_topoplot(
    topo_array[:, 50, 1];
    positions = topo_positions,
    axis = (; xlabel = "Time [50 ms]"),
    visual = (; colormap = :diverging_tritanopic_cwr_75_98_c20_n256),
    topo_attributes = (;
        label_scatter = (;
            markersize = sizes,
            color = colors,
            strokewidth = strokes,
            strokecolor = colors,
        )
    ),
)

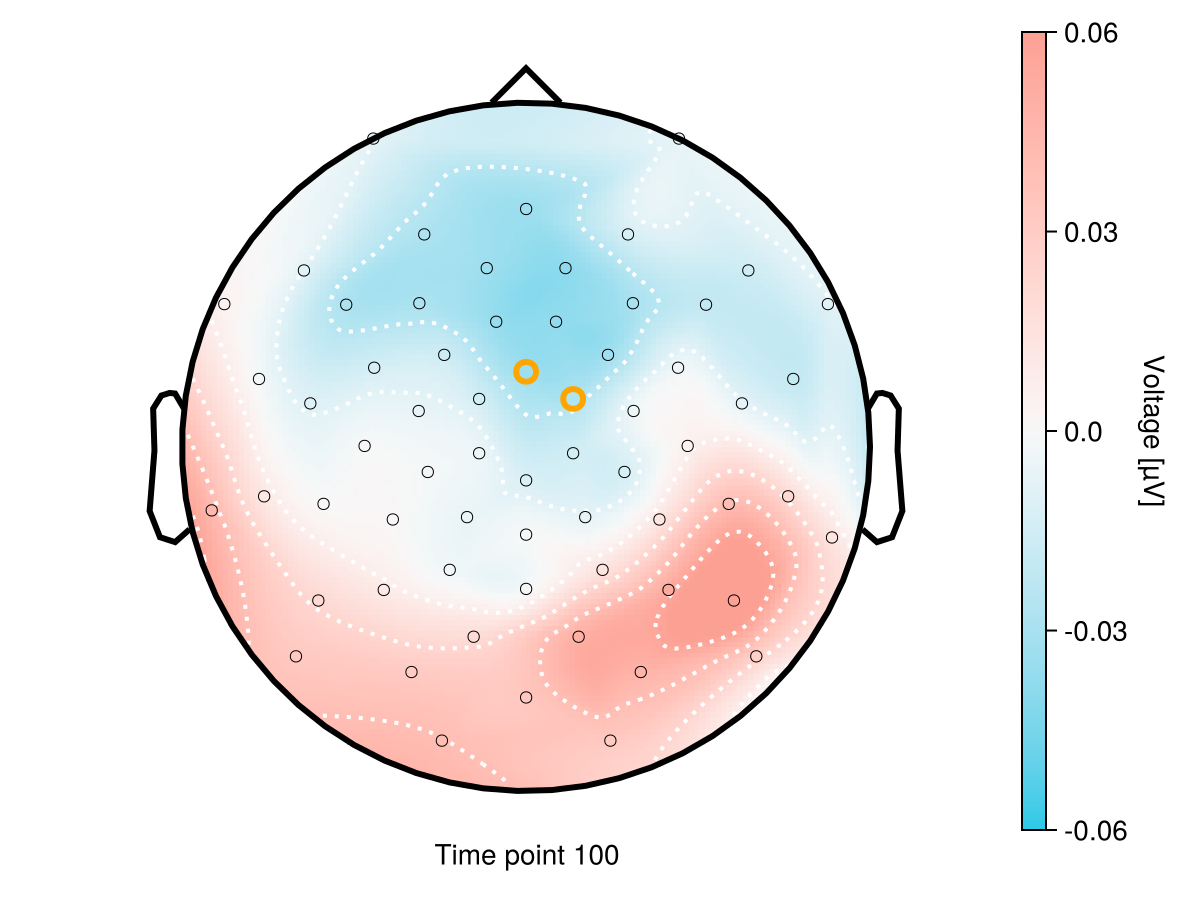

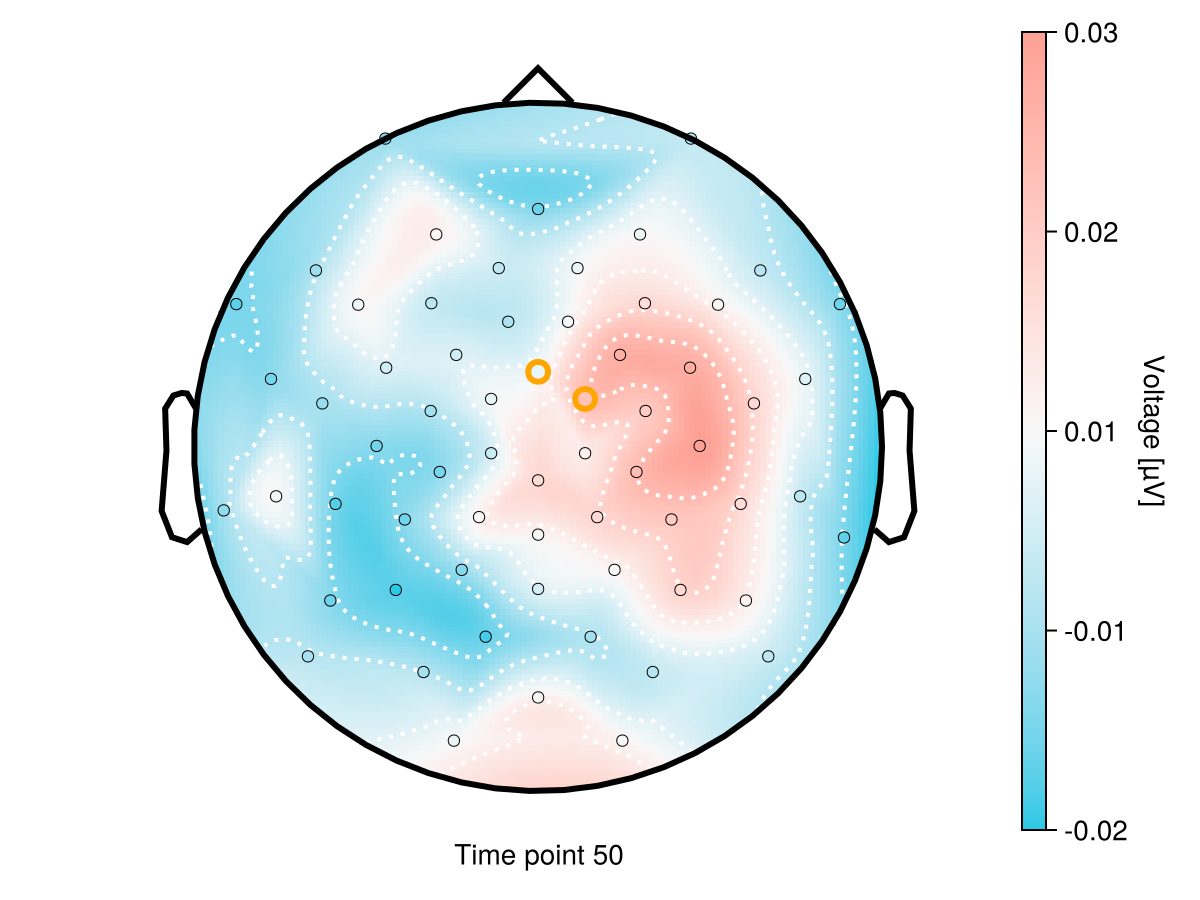

Example block output

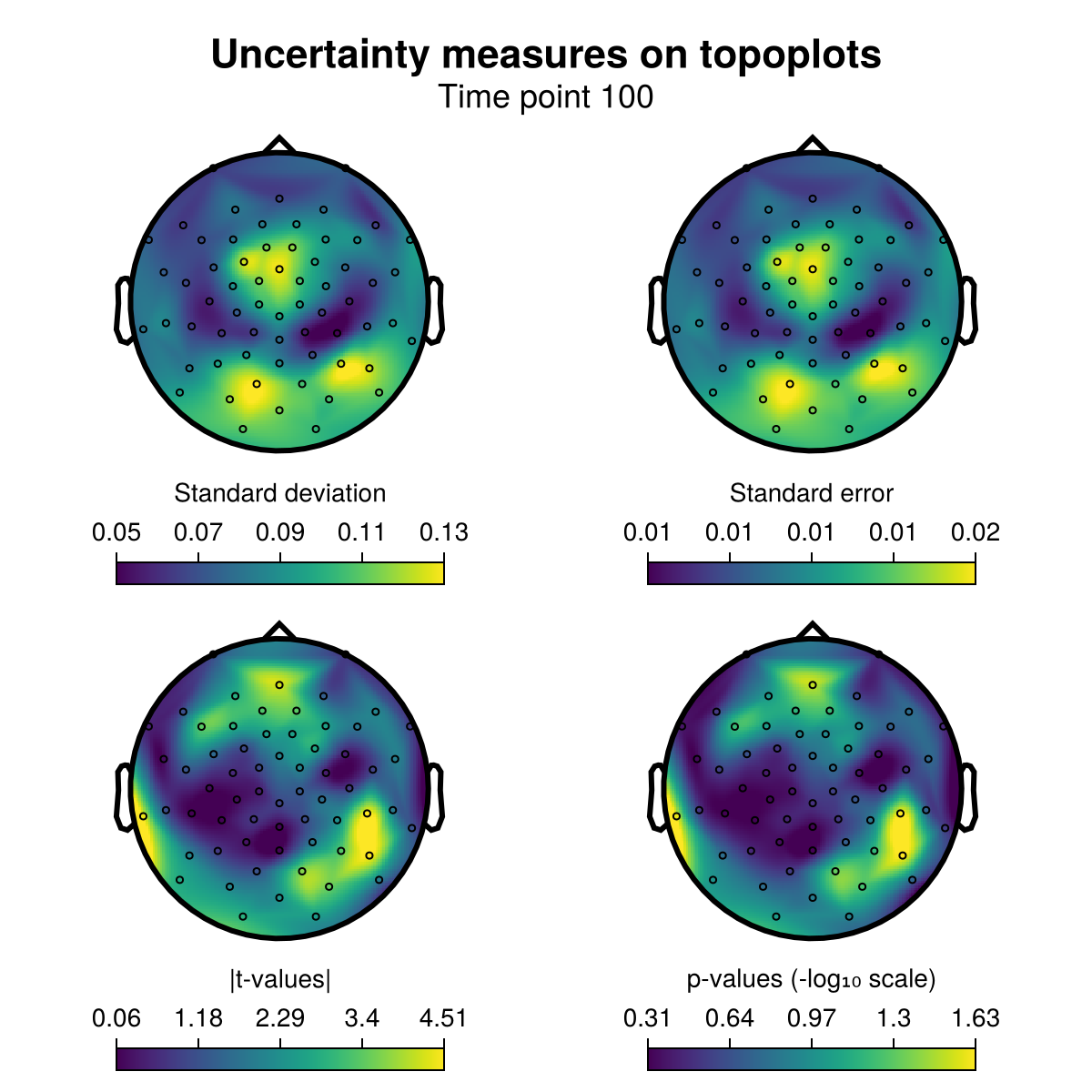

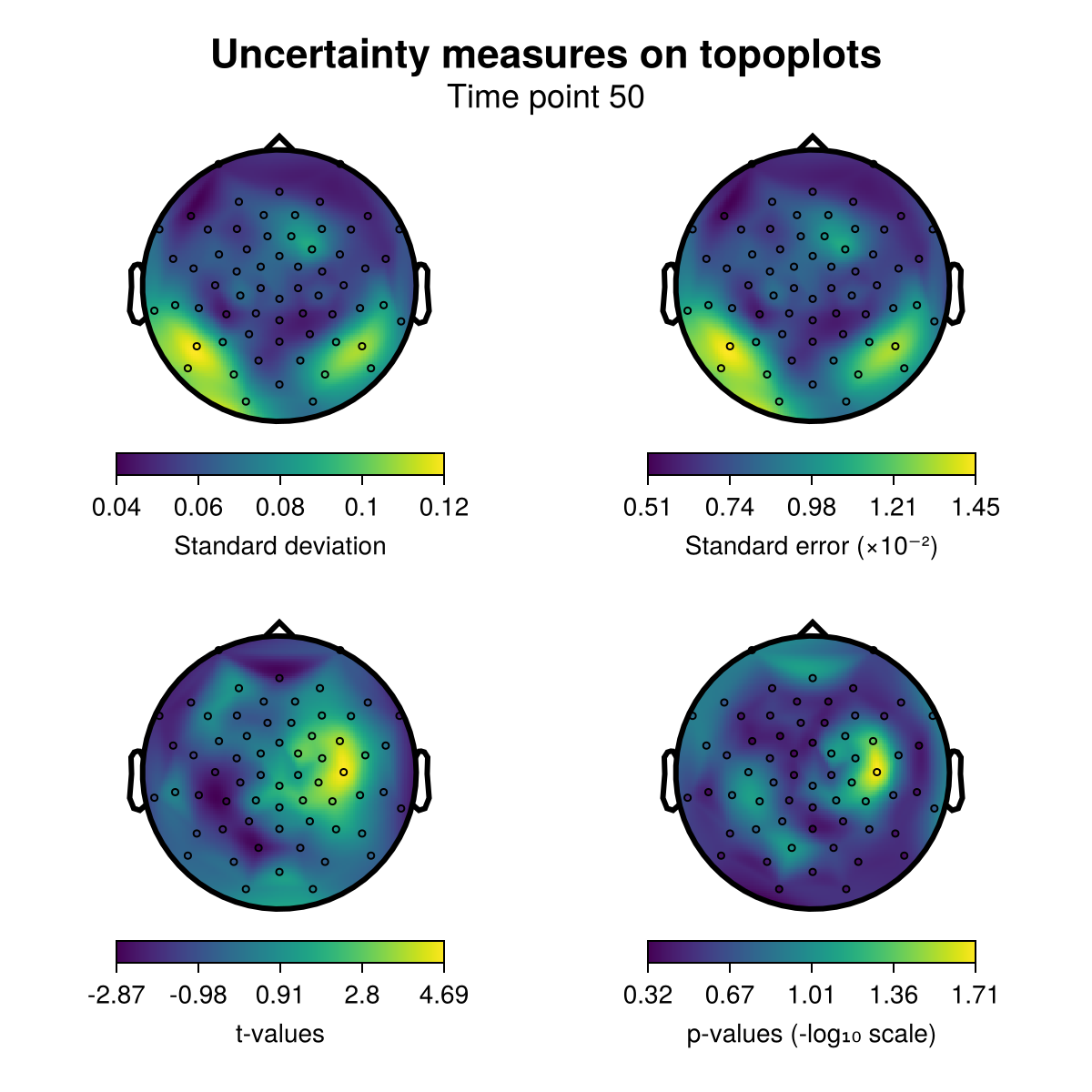

Advanced markers

You can use markers and their proeprties as additional information dimension. For instance, to map uncertaitny or some other value to the marker size, color or rotation. This is done by setting the topo_attributes kwarg. The following example shows how to set the marker size and color based on the data values. Check more here.

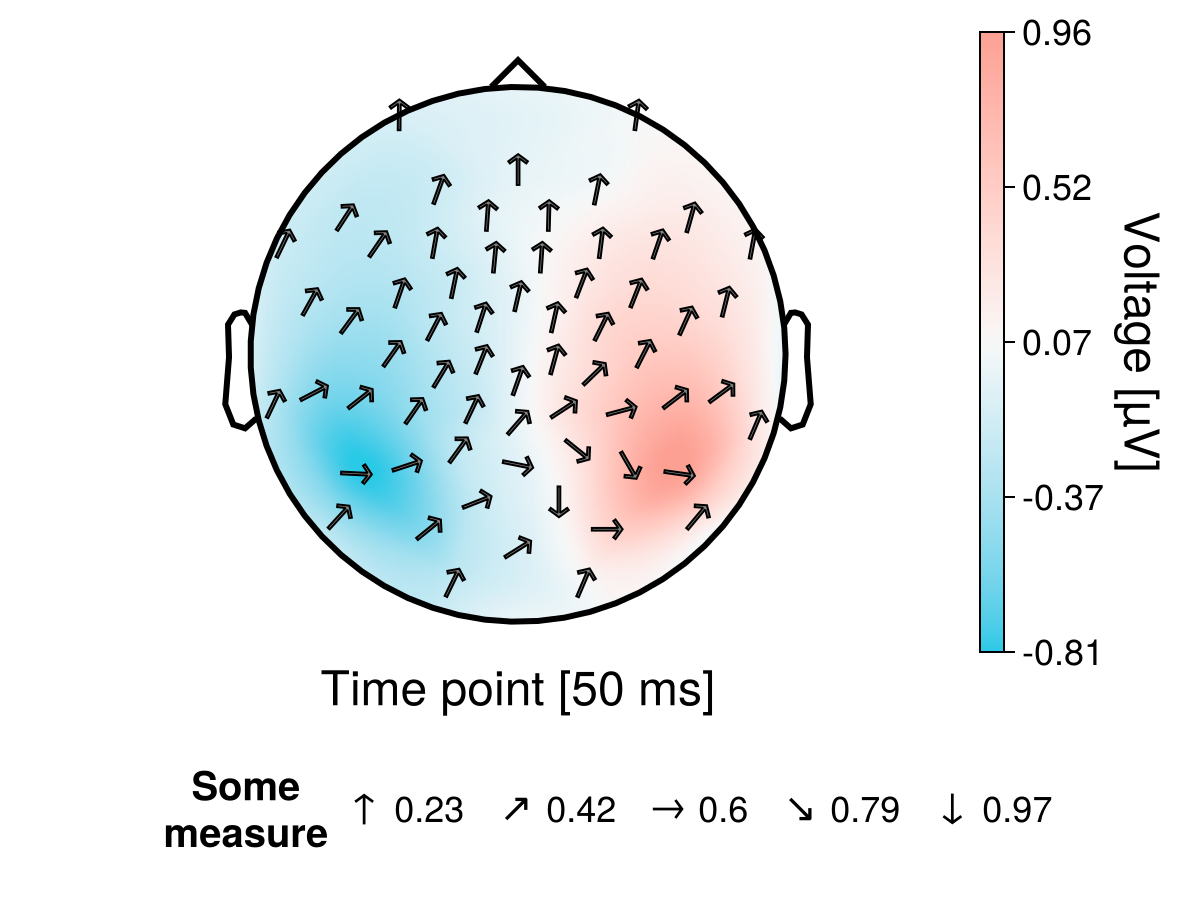

Markers as arrows

begin
    f = Figure()
    uncert_norm =
        (topo_array[:, 340, 2] .- minimum(topo_array[:, 340, 2])) ./
        (maximum(topo_array[:, 340, 2]) - minimum(topo_array[:, 340, 2]))
    rotations = -uncert_norm .* π # radians in [-2π, 0], negaitve - clockwise rotation

    arrow_symbols = ['↑', '↗', '→', '↘', '↓'] # 5 levels of uncertainty

    angles = range(extrema(topo_array[:, 340, 2])...; length = 5)
    labels = ["$(round(a, digits = 2))" for a in angles] # correspons to uncertainty levels

    plot_topoplot!(
        f[1:6, 1],
        topo_array[:, 340, 1];
        positions = topo_positions,
        topo_attributes = (;
            label_scatter = (;
                markersize = 20,
                marker = '↑',
                color = :gray, strokecolor = :black, strokewidth = 1,
                rotation = rotations,
            )
        ),
        axis = (; xlabel = "Time point [50 ms]", xlabelsize = 24, ylabelsize = 24),
        visual = (; colormap = :diverging_tritanopic_cwr_75_98_c20_n256, contours = false),
        colorbar = (; labelsize = 24, ticklabelsize = 18),
    )

    mgroup = [
        MarkerElement(marker = sym, color = :black, markersize = 20)
        for sym in arrow_symbols
    ]

    Legend(f[7, 1], mgroup, labels, "Some\nmeasure";
        patchlabelsize = 14, framevisible = false,
        labelsize = 18, titlesize = 20,
        orientation = :horizontal, titleposition = :left, margin = (90, 0, 0, 0))
    f
end

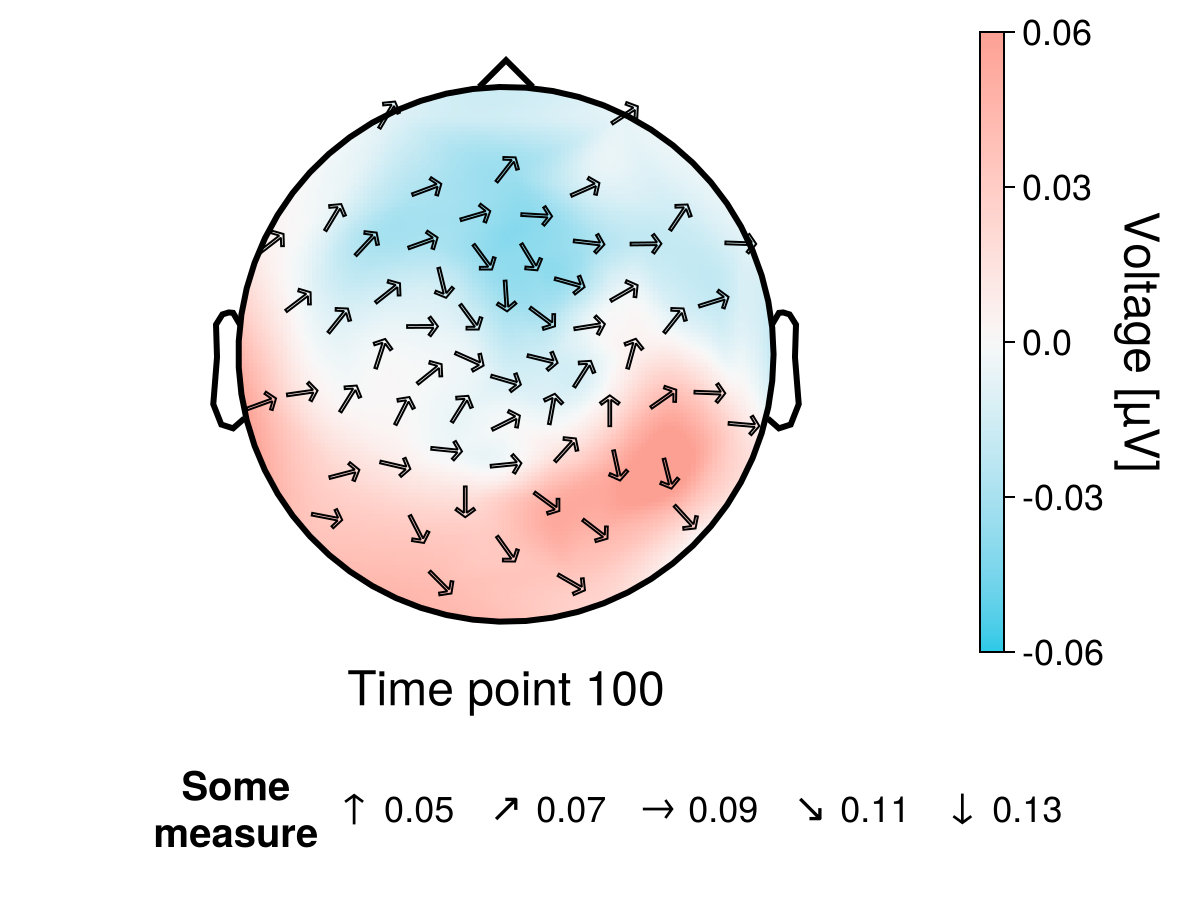

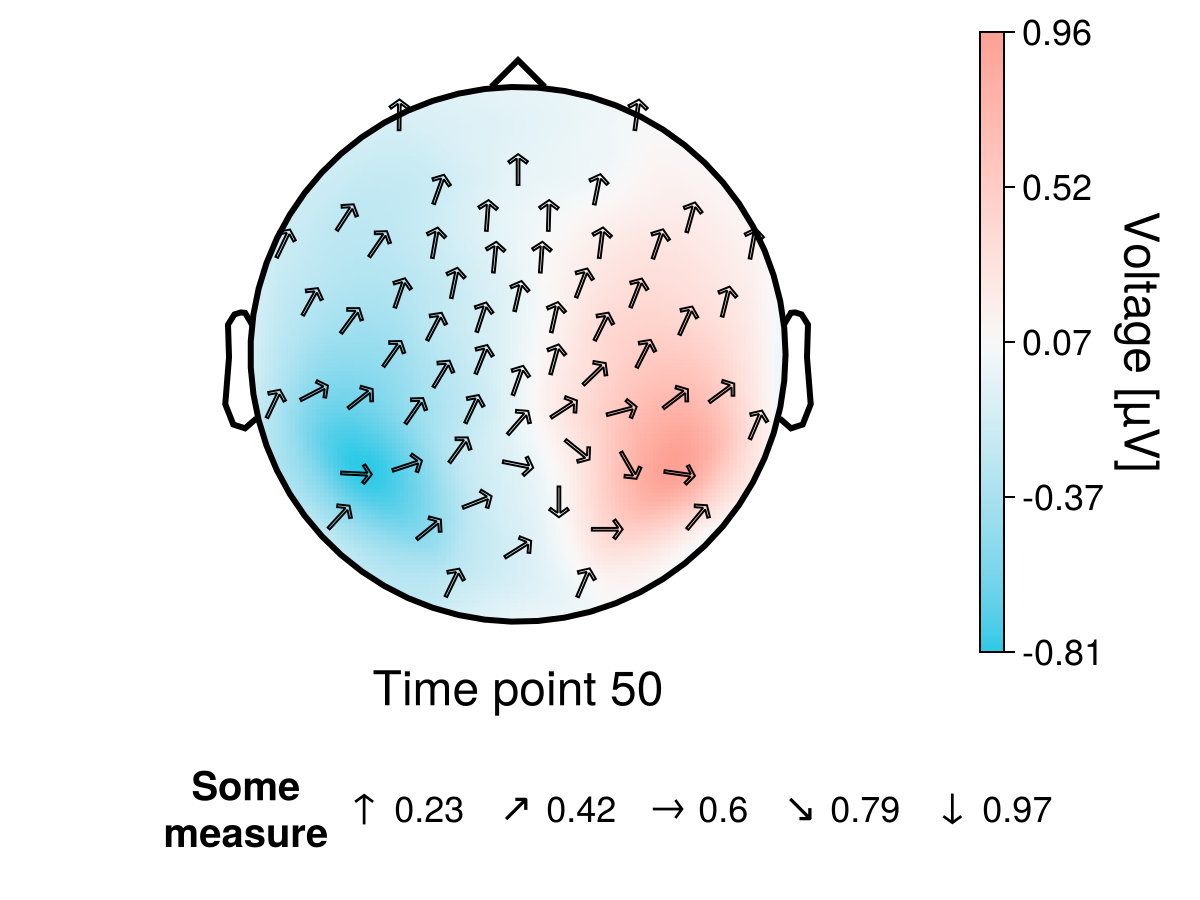

Example block output

Marker size change

plot_topoplot(
    topo_array[:, 50, 1];
    positions = topo_positions,
    axis = (; xlabel = "Time [50 ms]"),
    topo_attributes = (;
        label_scatter = (; markersize = rand(64) .* 2π, marker = :circle, color = :black)
    ),
)

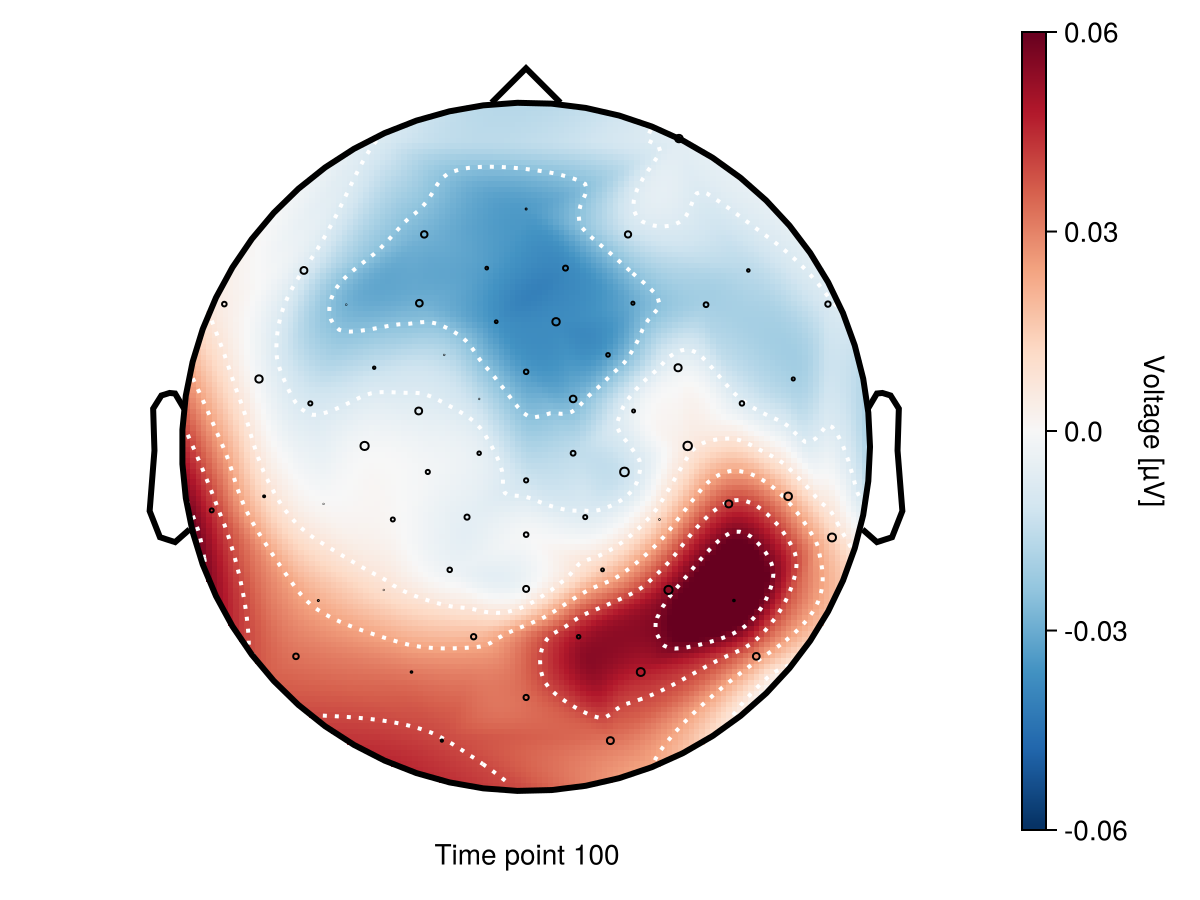

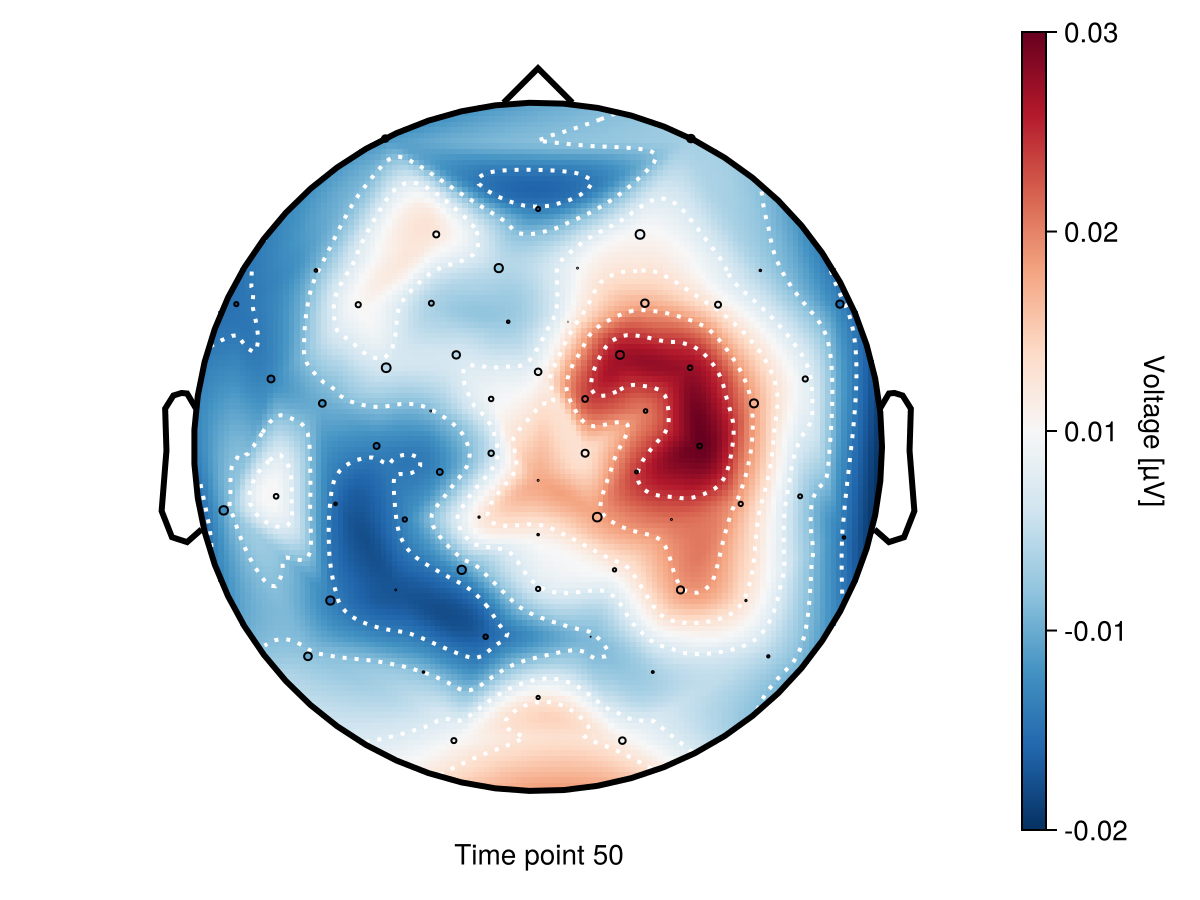

Example block output

Configurations of Topoplot

UnfoldMakie.plot_topoplotFunction
plot_topoplot!(f::Union{GridPosition, GridLayout, Figure}, data::Union{<:Observable{<:DataFrame},<:AbstractDataFrame,<:AbstractVector}; positions::Vector, labels = nothing, kwargs...)
plot_topoplot(data::Union{<:Observable{<:DataFrame},<:AbstractDataFrame,<:AbstractVector}; position::Vector, labels = nothing, kwargs...)

Plot a topoplot.

Arguments

  • f::Union{GridPosition, GridLayout, Figure}
    Figure, GridLayout, or GridPosition to draw the plot.
  • data::Union{<:Observable{<:DataFrame},<:AbstractDataFrame,<:AbstractVector}
    Data for the plot visualization.
  • positions::Vector{Point{2, Float32}}
    Positions used if data is not a DataFrame. Positions are generated from labels if positions = nothing.
  • labels::Vector{String} = nothing
    Labels used if data is not a DataFrame.
  • topo_axis::NamedTuple = (;)
    Here you can flexibly change configurations of the topoplot axis.
    To see all options just type ?Axis in REPL.
    Defaults: (width = Relative(1.0f0), height = Relative(1.0f0), halign = 0.05, valign = 0.95, aspect = DataAspect())
  • topo_attributes::NamedTuple = (;)
    Here you can flexibly change configurations of the topoplot interoplation.
    To see all options just type ?Topoplot.topoplot in REPL.
    Defaults: interp_resolution = (128, 128), interpolation = CloughTocher()

Shared plot configuration options

The shared plot options can be used as follows: type = (; key = value, ...)).
For example, plot_x(...; colorbar = (; vertical = true, label = "Test")).
Multiple defaults will be cycled until match.

Placing ; is important!

figure = NamedTuple() - use kwargs... of Makie.Figure

axis = (xlabel = "Time", aspect = Makie.DataAspect()) - use kwargs... of Makie.Axis

layout = (show_legend = true, use_colorbar = true, hidespines = (), hidedecorations = Dict{Symbol, Bool}(:label => 0)) - check this page

mapping = (x = nothing, y = (:estimate, :yhat, :y), positions = (:pos, :positions, :position, nothing), labels = (:labels, :label, :sensor, nothing)) - use any mapping from AlgebraOfGraphics

visual = (colormap = Makie.Reverse{Symbol}(:RdBu), contours = (color = :white, linewidth = 2), enlarge = 1, label_scatter = true, label_text = false, bounding_geometry = GeometryBasics.Circle) - use kwargs... of Topoplot.eeg_topoplot

legend = (orientation = :vertical, tellwidth = true, tellheight = false, halign = :right, valign = :center) - use kwargs... of Makie.Legend

colorbar = (vertical = true, tellwidth = true, tellheight = false, labelrotation = -1.5707963267948966, flipaxis = true, label = "Voltage [µV]") - use kwargs... of Makie.Colorbar

To highlight some electrodes, you can use topo_attributes = (; label_scatter = (; ...)) where ... are the attributes for scatter! function. For example, to change the marker size of all electrodes to 8, use topo_attributes = (; label_scatter = (; markersize = 15)). To set different sizes for each electrode, provide a vector of sizes with length equal to the number of electrodes.

Return Value:Figure displaying the Topoplot.

source
