Cross-validated MANOVA (cvMANOVA)

This tutorial demonstrates how to perform cross-validated MANOVA on a two-level factor.

Setup

using Unfold
using UnfoldSim
using UnfoldStats
using StatsModels
using Random
using Statistics
using CairoMakie
using UnfoldMakie
using DataFrames

Set seed for reproducible cross-validation folds.

Random.seed!(42)

Generate two-class EEG data

Generate simulated multichannel EEG data with two conditions (classes).

sfreq = 100

p1 = (p100(; sfreq = sfreq), @formula(0 ~ 1), [5], Dict())
n1 = (n170(; sfreq = sfreq), @formula(0 ~ 1 + animal), [5, 3], Dict())
p3 = (p300(; sfreq = sfreq), @formula(0 ~ 1 + animal + vegetable), [5, -1, 1], Dict())
design =
    SingleSubjectDesign(;
        conditions = Dict(:animal => ["dog", "cat"], :vegetable => ["tomato", "carrot"]),
        event_order_function = shuffle,
    ) |> x -> RepeatDesign(x, 100)
eeg, evts = UnfoldSim.predef_eeg(
    MersenneTwister(1),
    design,
    LinearModelComponent,
    [p1, n1, p3];
    sfreq,
    return_epoched = true,
    multichannel = true,
    noiselevel = 1.0,
)


fake_times = 1:size(eeg, 2)

Please cite: HArtMuT: Harmening Nils, Klug Marius, Gramann Klaus and Miklody Daniel - 10.1088/1741-2552/aca8ce

Check the event structure with condition variable

first(evts, 5)

Fit an Unfold-Model

For cvMANOVA we need a overspecified designmatrix. Thus instead of using an intercept, we have one column for each level of any categorical predictor we want to use.

f = @formula 0 ~ 0 + animal + vegetable
contrasts = Dict(
    :animal => StatsModels.FullDummyCoding(),
    :vegetable => StatsModels.FullDummyCoding(),
)

m = fit(UnfoldModel, f, evts, eeg, fake_times; contrasts = contrasts, fit = false)

As you can see, we have a binary designmatrix now. This is later important to define the contrasts.

modelmatrix(m)[1][1:5, :]

5×4 Matrix{Float64}:
 0.0  1.0  1.0  0.0
 1.0  0.0  0.0  1.0
 1.0  0.0  1.0  0.0
 0.0  1.0  0.0  1.0
 1.0  0.0  1.0  0.0

Fit with k-fold cross-validation

We use the cross-validation solver, and importantly, we directly fit the test-set Β estimates as well

cv_solver = Unfold.solver_cv(n_folds = 5, shuffle = true, fit_test = true)
fit!(m, eeg; solver = cv_solver) # note: we could have run the fit(...;solver=...) directly

Run cvMANOVA

Define a two-level contrast to compare the two classes: [-1, 1] This means: (class 2) - (class 1)

C = [-1, 1, 0, 0]

4-element Vector{Int64}:
 -1
  1
  0
  0

We use only the "baseline" period (first 10 time samples) to estimate a noise covariance.

Y_baseline = eeg[:, 1:10, :]

Compute cvMANOVA's D for each timepoint

D_per_fold = cvMANOVA(m, Y_baseline; C = C)

5-element Vector{Vector{Float64}}:
 [-0.0597945885453818, -0.014189918947870438, -0.06357789560378521, 0.022015591774258745, -0.13787801240500433, 0.1509894313234023, 0.025554415377431156, 0.03686917148904638, 0.025446485928354752, -0.10259697861834055  …  6.860155217272793, 4.729990647360415, 3.2011163765917368, 1.8952443672122663, 1.2378585058354745, 0.5164073028520081, 0.3153602289764925, 0.05076526302757962, 0.15632061458105492, -0.14176230669314172]
 [-0.009237159143159455, 0.0062979351747368606, -0.11425323048302981, -0.0869751304257352, 0.01532765222493132, 0.05677863506862408, -0.12226825070839714, 0.1585546916172808, 0.027691201001144663, -0.14002394428854303  …  6.678745556901533, 5.008496548071618, 3.591237935650617, 2.1035583621924485, 1.154814539666507, 0.42858324878233384, 0.05457476217896396, -0.06317739500603911, 0.010914640812832681, -0.09970328090580129]
 [-0.017222301507592803, 0.11910317499724417, -0.10103164853625264, -0.05520639047167965, -0.24988998665473314, -0.09958263173161924, -0.06225288024093135, 0.019571077282755783, 0.011962551189350565, -0.17342774144517253  …  6.101716432714728, 5.196667990248518, 3.74419452579268, 2.023419444908067, 1.4012608077711979, 0.30645241004070745, 0.1596569102320569, -0.0471768783901823, 0.1805954040851836, -0.21999749943587296]
 [-0.05846050310423367, -0.13647337235761875, -0.02093314183456736, -0.04873035017894932, -0.07271046247512392, -0.08057772123901619, 0.07866569006555056, 0.22334193939203714, -0.032450360634612374, -0.07784728152914268  …  5.784563315202376, 4.844422137871447, 3.2302524181441497, 1.6935137764788186, 1.3320749576628899, 0.2540124838275757, 0.25606477527318205, 0.030532916453181375, 0.19106147966295925, -0.07796434794191906]
 [-0.04040282930080026, -0.0008896971516439836, 0.0011417894957722482, 0.014079558221798393, -0.056611486875493125, 0.12657930983501361, -0.0857180030085403, 0.044583982723312696, 0.08317043219765993, -0.13817097963345562  …  6.390349655062362, 5.208883625744558, 3.982694249214518, 1.9412310392581096, 1.3412487896272023, 0.3444453741694635, 0.4154293220456794, 0.0004934096990531707, 0.17738631077262149, 0.028712072497361445]

Aggregate the discriminability statistic across all CV folds.

D_mean = mean(D_per_fold)

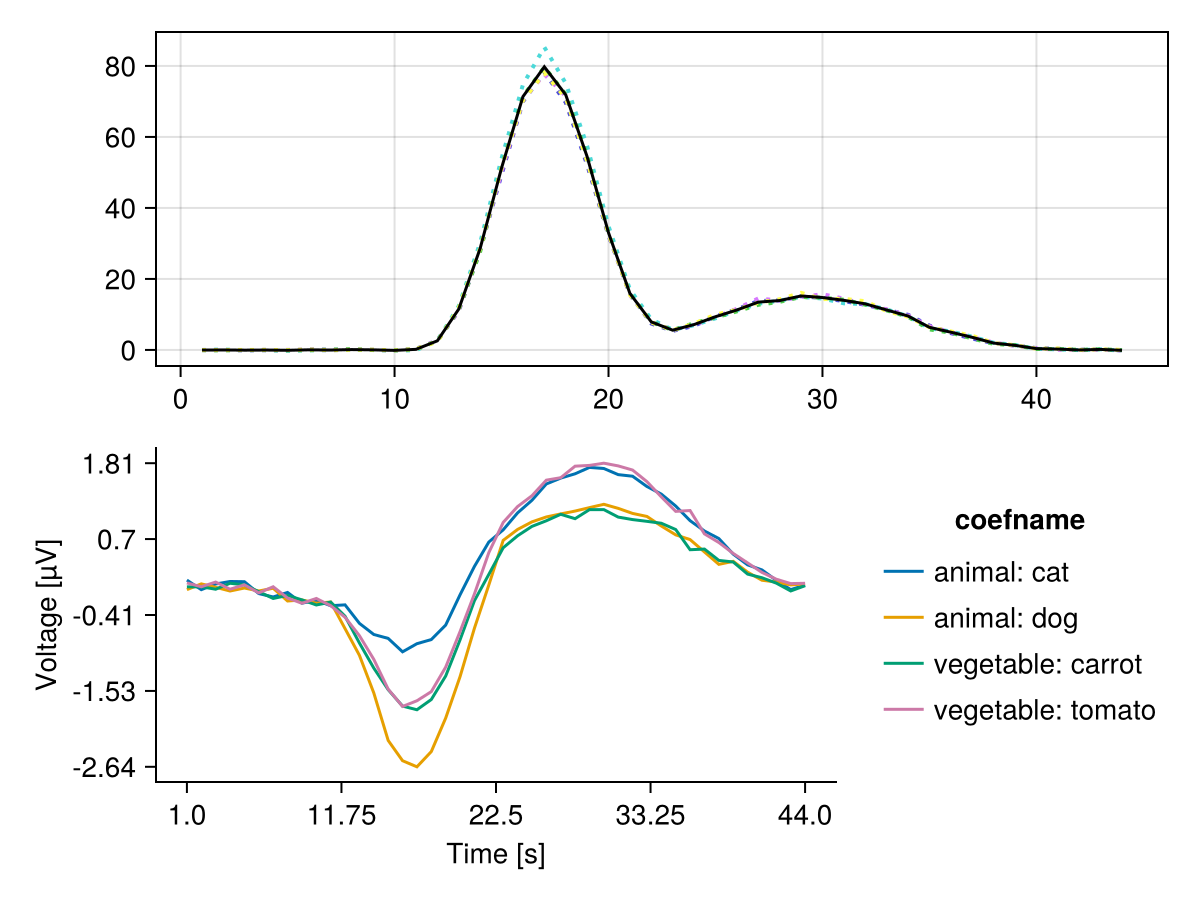

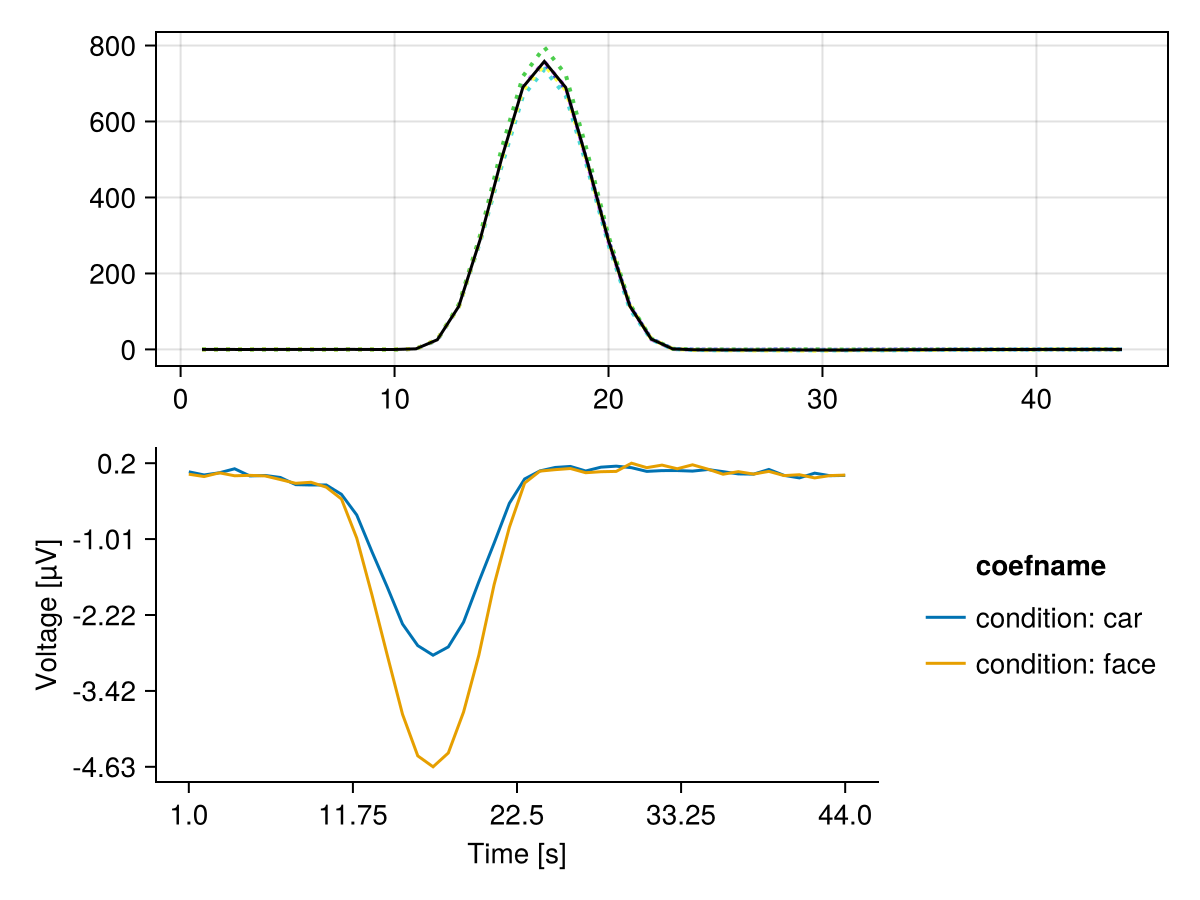

This is the time-resolved discriminability: higher values = better discrimination

let
    f, ax, h = series(reduce(hcat, D_per_fold)', linestyle = :dot)
    lines!(ax, D_mean, color = :black)

    plot_erp!(f[2, 1], subset(coeftable(m), :channel => (x -> x .== 10)))
    f
end

Cross Decoding

Next we will check how well we can decode animal based on vegetable, and vice versa

C_animal = [-1, 1, 0, 0]
C_veggie = [0, 0, -1, 1]
D_animal = mean(cvMANOVA(m, Y_baseline; C = C_animal))
D_veggie = mean(cvMANOVA(m, Y_baseline; C = C_veggie))
D_cross = mean(cvMANOVA(m, Y_baseline; C = C_animal, C_test = C_veggie))

let
    f = Figure()
    ax = Axis(f[1, 1])
    h_a = lines!(ax, D_animal, label = "animal")
    h_v = lines!(ax, D_veggie, label = "veggie")
    h_c = lines!(ax, D_cross, label = "cross")
    Legend(f[1, 2], ax)
    f
end

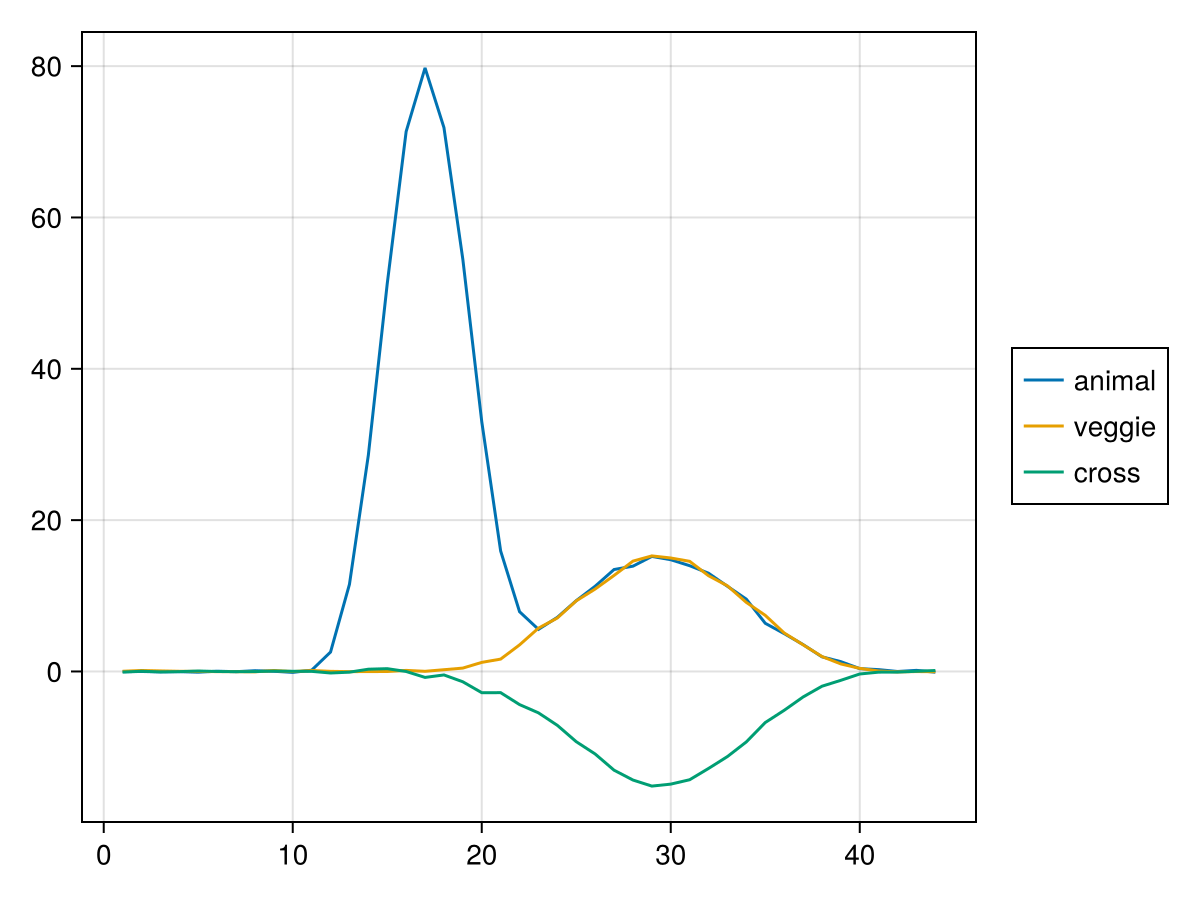

Cross decoding is only possible where veggie and animal share some representation, e.g. at the "p300" time window, but not at the "n170" time window, which was simulated specific to animals.

# Time Generalization
import LinearAlgebra: diag

D_temporal = mean(
    cvMANOVA(
        m,
        Y_baseline;
        C = C_animal,
        C_test = C_veggie,
        temporal_generalization = true,
    ),
)
let
    f, ax, h = heatmap(
        D_temporal,
        axis = (; aspect = DataAspect(), xlabel = "test time", ylabel = "train time"),
        colormap = :viridis,
    )
    lines!(ax, [0, size(D_temporal, 1)], [0, size(D_temporal, 2)]) # diag
    lines(f[1, 2], diag(D_temporal), label = "diag(temp-gen)")
    lines!(D_cross, linestyle = :dash, label = "vector")
    Legend(f[1, 3], current_axis())
    Label(f[1, 1, TopLeft()], "A)")
    Label(f[1, 1, TopLeft()], "B)")
    f
end

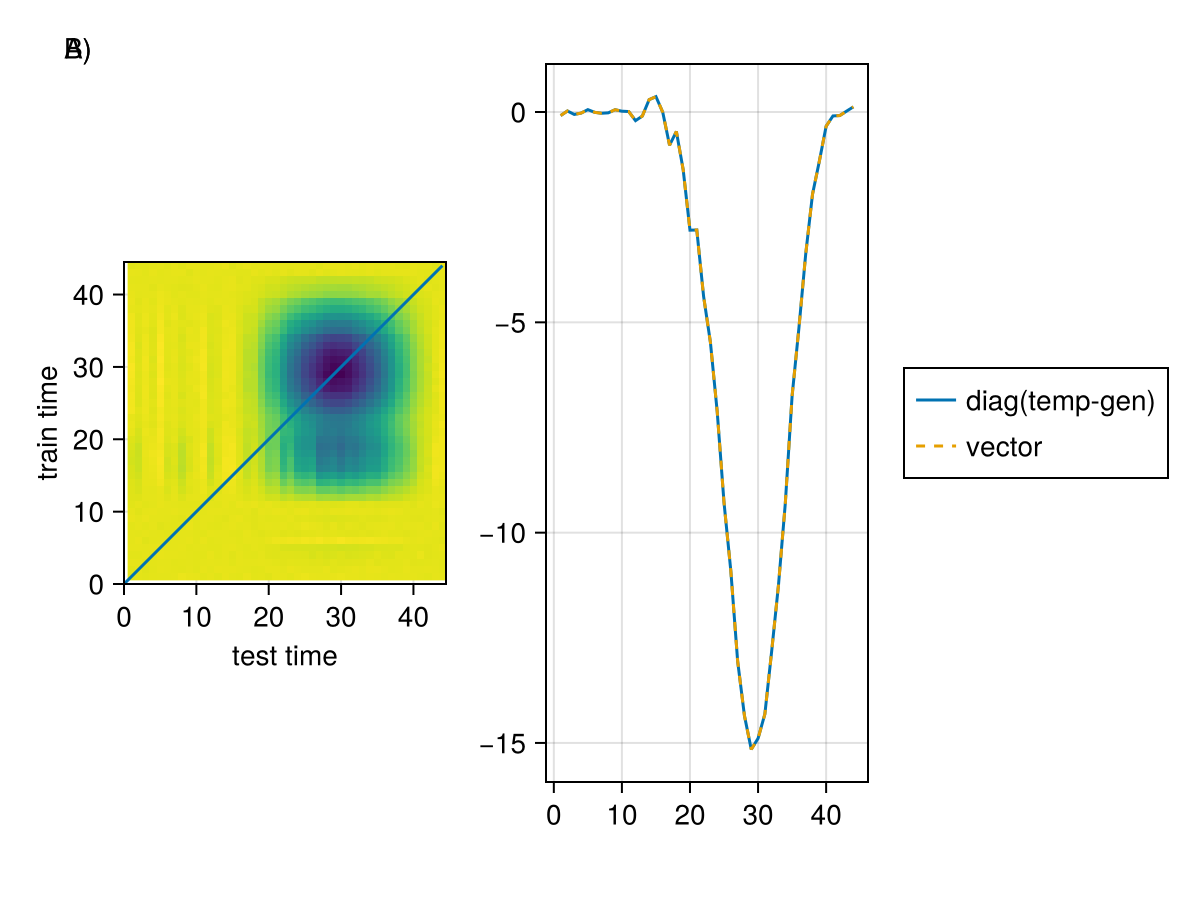

A) shows the temporal generalization matrix, where the x-axis is the test time and the y-axis is the training time. Here one can see, besides the diagonal cross-decoding, that training at sample ~15 allows decoding at sample 30 B) The diagonal of this matrix is equivalent to the "normal" way as discussed before
