Two-stage EEG analysis using Unfold & UnfoldStats

0. Setup

Load required packages.

using UnfoldStats
using Unfold
using DataFrames
using Chain
using Statistics
using HypothesisTests
using CairoMakie
using UnfoldMakie

1. Simulate data

This section can be skipped, if one already has (real) data that they want to analyse.

using UnfoldSim
using StableRNGs

design = MultiSubjectDesign(
    n_subjects = 20,
    n_items = 100,
    items_between = Dict(:continuous => range(0, 2, length = 10)),
)

β = [1, 1, 0.5, 0.2]
σs = Dict(:subject => [1, 0.1, 0.1, 0.1])

signal = MixedModelComponent(;
    basis = UnfoldSim.hanning(50),
    formula = @formula(
        0 ~
            1 +
            continuous +
            continuous^2 +
            continuous^3 +
            (1 + continuous + continuous^2 + continuous^3 | subject)
    ),
    β = β,
    σs = σs,
)

hart = Hartmut()
signal_multichannel = MultichannelComponent(signal, hart => "Left Postcentral Gyrus")

onset = UniformOnset(; width = 50, offset = 60)
noise = PinkNoise(; noiselevel = 5)

UnfoldSim.PinkNoise
  noiselevel: Int64 5
  func: UnionAll

data, events = UnfoldSim.simulate(
    StableRNG(1),
    design,
    signal_multichannel,
    onset,
    noise,
    return_epoched = false,
);

first(events, 12)

2. Fit an Unfold model for each subject (first stage)

In the first stage, we fit an Unfold model for each subject separately.

# Specify a temporal basis function
basisfunction = firbasis((-0.1, 0.7), 100)

# Specify the model formula
formula = @formula 0 ~ 1 + spl(continuous, 4)

# Combine basisfunction and formula in an event dict
event_vec = [Any => (formula, basisfunction)]

subject_list = unique(events.subject)
model_list = UnfoldLinearModelContinuousTime[]

# Slice the data by its last dimension (i.e. the subject dimension)
data_slices = eachslice(data, dims = ndims(data))

for s = 1:size(data, ndims(data))
    m = fit(
        UnfoldModel,
        event_vec,
        subset(events, :subject => ByRow(==(subject_list[s]))),
        data_slices[s],
    )
    push!(model_list, m)
end

models = DataFrame(subject = subject_list, unfoldmodel = model_list);
size(models)

(20, 2)

As a result, we get a dataframe which contains an Unfold model for each subject.

3. Compute and visualize the marginal effects

In the next step, we will compute the marginal effects of the continuous predictor i.e. how the prediction changes for different levels of this predictor. First, we compute the marginal effects separately for each subject. Then we aggregate them over subjects using the mean.

# Specify the predictors of interest
predictor_dict = Dict(:continuous => range(0, 2, length = 3))

# Compute the marginal effects for all subjects separately
effects_all_subjects = combine(
    groupby(models, :subject),
    :unfoldmodel => (m -> effects(predictor_dict, m[1])) => AsTable,
)

# Aggregate the marginal effects (per event type, time point and channel) over subjects
# using the mean as aggregation function
aggregated_effects = @chain effects_all_subjects begin
    groupby([:eventname, :channel, collect(keys(predictor_dict))..., :time])
    combine(:yhat .=> [x -> mean(skipmissing(x))] .=> Symbol("yhat_", mean))
end;
first(aggregated_effects, 5)

Next, we want to visualize the marginal effects in a topoplot series. For this we first need to extract the electrode positions for our simulated data (or your real data) and project them from 3d to 2d.

# Extract the electrode positions for the simulated data from the headmodel
# and project them from 3d to 2d.
pos3d = hart.electrodes["pos"];
pos2d = to_positions(pos3d')
pos2d = [Point2f(p[1] + 0.5, p[2] + 0.5) for p in pos2d];

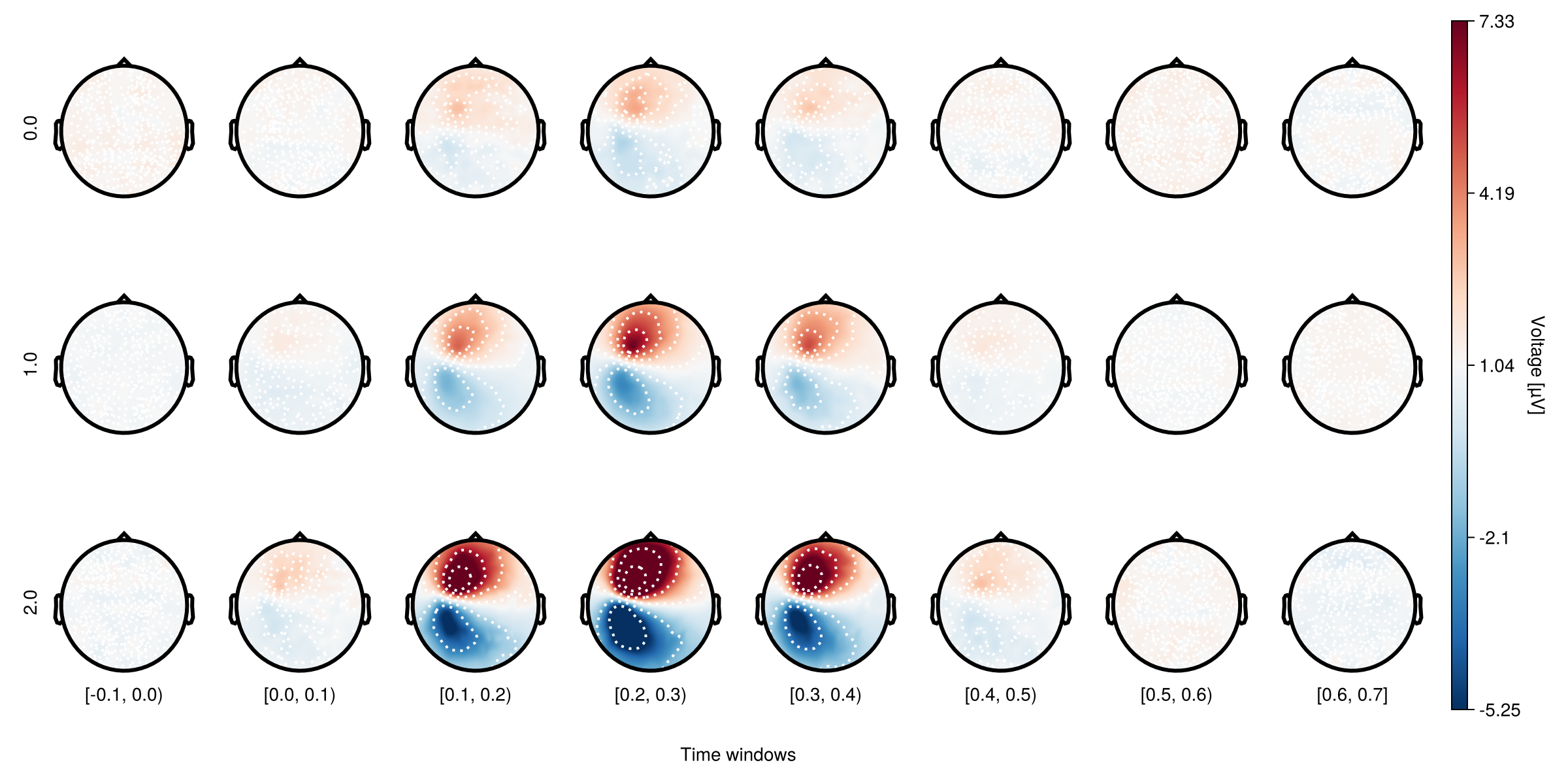

For visualization, we use the plot_topoplotseries function from UnfoldMakie. In the topoplot series, the time in seconds (binned in time windows) is represented from left to right. The rows (from top to bottom) represent the marginal effects for different levels of the predictor continuous.

# Set the size of the time bins for the topoplot series
bin_width = 0.1
aggregated_effects.estimate = aggregated_effects.yhat_mean # bug in UnfoldMakie 0.5.12
f_effects = Figure(size = (1200, 600))
tp_effects = plot_topoplotseries!(
    f_effects,
    aggregated_effects;
    bin_width,
    positions = pos2d,
    mapping = (; y = :estimate, row = :continuous),
    visual = (; enlarge = 0.6, label_scatter = false, colorrange = (-3, 3)),
)

ax = current_axis()
linkaxes!(tp_effects.content[1:end-2]...)
xlims!(ax, 0, 0.9)
ylims!(ax, 0, 0.9)
current_figure()

In the time windows [0.1, 0.2), [0.2, 0.3) and [0.3, 0.4), one can see the effect of continuous that we simulated. In the next section, we want to quantify and test this effect.

4. Extract coefficients & conduct Hotelling's T² tests

We will use a one-sample Hotelling's T² test to test whether at least one of the spline coefficients is different from 0. First, we extract the spline coefficients (for the continuous predictor variable) for all subjects. Then we conduct a Hotelling's T² test separately for each channel and time point and extract the correspoding p-value.

# Extract the spline coefficients for the `continuous` predictor variable
# from the Unfold models of all subjects
eventname = unique(effects_all_subjects.eventname)
coefs = extract_coefs(models.unfoldmodel, :continuous, eventname)

# Conduct a one-sample Hotelling's T² test separately for all channels and time points
# and compute a p-value. We compare the spline coefficients vector against 0.
p_values =
    mapslices(c -> pvalue(OneSampleHotellingT2Test(c', [0, 0, 0])), coefs, dims = (3, 4)) |>
    x -> dropdims(x, dims = (3, 4));

times = unique(effects_all_subjects.time)
channels = axes(p_values, 1)

# For visualization purposes, save the p_values in a data frame together with time and channel
p_values_df = DataFrame(
    channel = repeat(channels, outer = length(times)),
    time = repeat(times, inner = length(channels)),
    p_values = p_values[:],
);

first(p_values_df, 5)

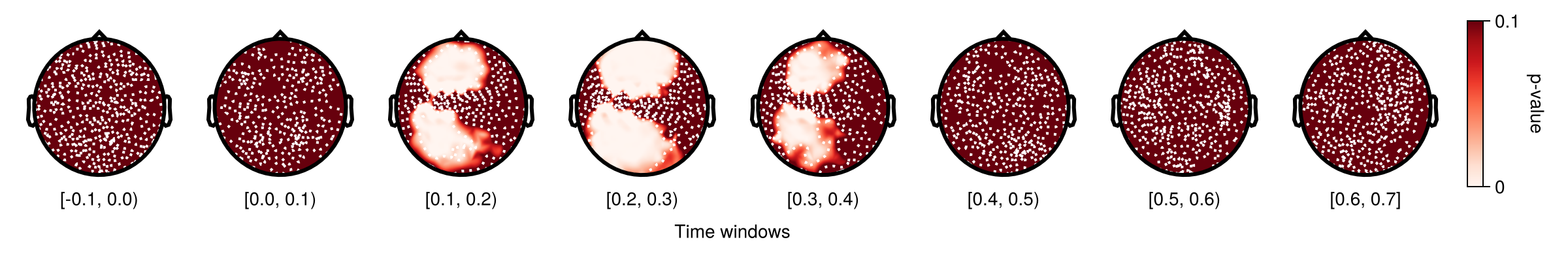

As a last step, we visualize the p-values in a topoplot series.

bin_width = 0.1
p_values_df.estimate = p_values_df.p_values
f_pvalues = Figure(size = (1200, 200))
tp_pvalues = plot_topoplotseries!(
    f_pvalues,
    p_values_df;
    bin_width,
    positions = pos2d,
    mapping = (; y = :estimate),
    visual = (;
        enlarge = 0.6,
        label_scatter = false,
        colorrange = (0, 0.1),
        colormap = :Reds,
    ),
    colorbar = (; label = "p-value", limits = (0, 0.1), ticks = ([0.0, 0.1], ["0", "0.1"])),
)

ax = current_axis()
current_figure()

This page was generated using Literate.jl.
